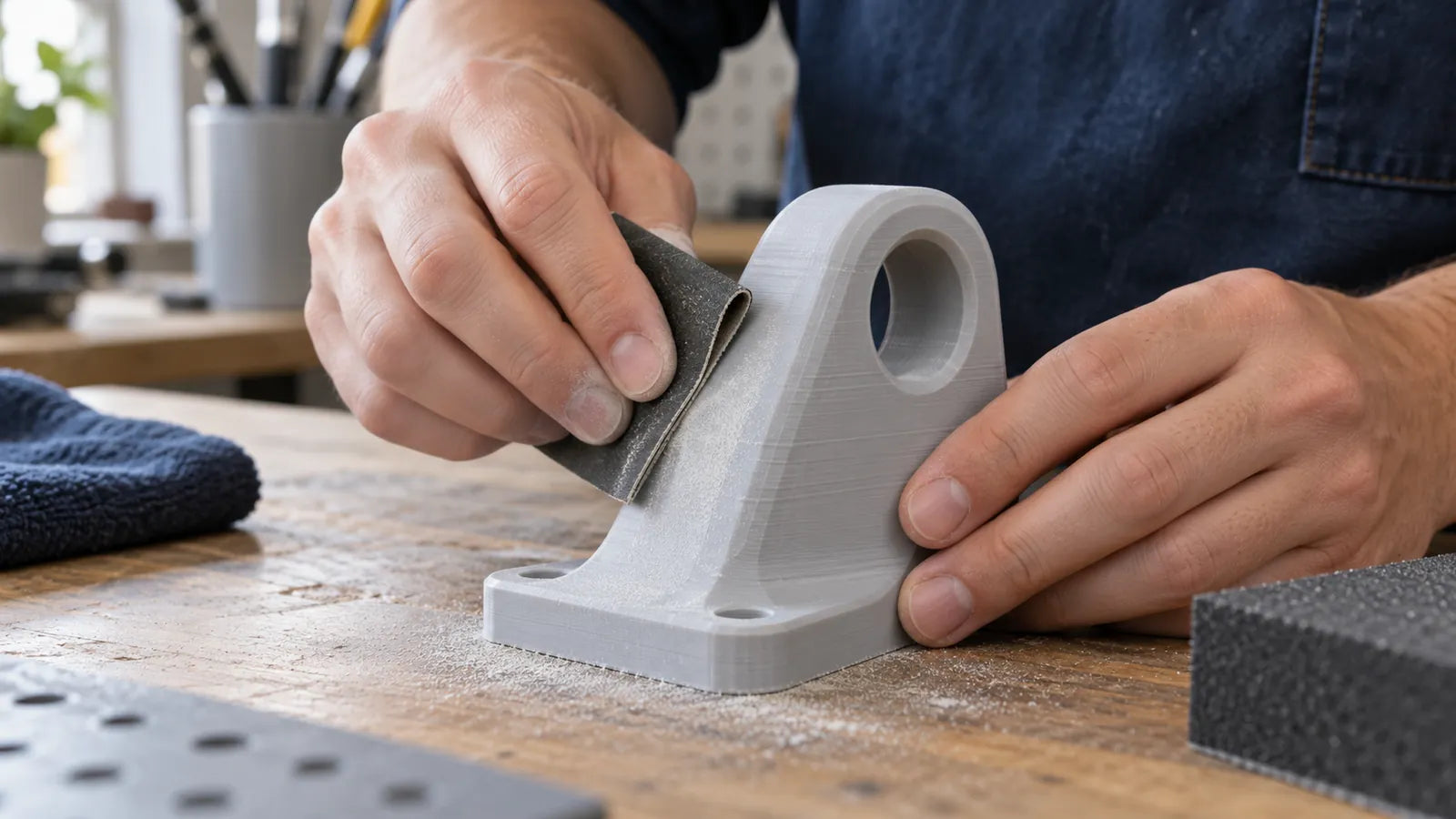

Dry Sanding for 3D Prints

Quick answer: Dry-sand a 3D print only after identifying whether it is an FDM thermoplastic or a fully washed, dried, and post-cured resin. Remove support scars and high ridges before trying to erase broad layer valleys. Use a backed abrasive on accessible planes, light strokes, frequent dust removal, and short sessions so heat and loading do not smear plastic. Stop when the next process—primer, filler, paint, or an intentionally matte finish—has a uniform surface to accept.

“3D print” describes a manufacturing process, not one sanding behavior. PLA, PETG, ABS, nylon, filled filaments, and photopolymer resins soften, chip, load paper, and generate dust differently. A single grit ladder cannot safely cover them all. The useful starting point is material identity and the desired finish.

Route the part by material and state

Check the spool label, resin bottle, job record, or supplier data sheet. If the material is unknown, test only a failed print or hidden area and avoid promising a finished result.

Formlabs describes washing and post-curing as core SLA post-processing steps used to remove residual resin and develop intended material properties. Sanding a tacky resin part spreads contamination; it is not a substitute for correct post-processing. Wear gloves and other protection specified for uncured resin until that process is complete.

Define the finish goal

Choose one outcome before selecting an abrasive:

• Paint-ready: knock down support scars, fill deep layer valleys when appropriate, and leave a uniform surface compatible with the primer.
• Visible matte plastic: refine scratches evenly, knowing that sanding changes color and gloss.
• Dimensional cleanup: remove a burr or support witness without thinning a wall or changing a mating face.
• High cosmetic finish: plan several fill-prime-inspect cycles rather than trying to sand every valley out of the original shell.

If a layer valley is deeper than the shell can safely lose, filling is the correct branch. Sanding until the valley disappears removes the surrounding peaks and can expose sparse infill, round an edge, or erase a small feature.

Establish a safe dry station

Read the material and coating safety data sheets. Use local dust extraction suitable for fine particulate, prevent dust from spreading through the room, and wear eye protection. Select respiratory protection from the hazard assessment and product instructions; a respirator pictured in general shop media does not prove its filter is suitable. Keep ignition sources away from accumulated fine polymer dust and clean with an appropriate vacuum rather than compressed air.

Secure the part without distorting it. Support thin walls from behind when possible. Mask bosses, snap features, threads, text, and mating surfaces unless they are the actual repair target. Put a witness mark outside the finish area so orientation remains clear.

A 180-grit 25-sheet option and the same 180-grit sheet listing can be cut into small pieces for a compatible FDM test. It is a starting-format example, not a universal first grade. Support scars may require more initial cut; a primed cosmetic shell may need a much finer product specified by the primer maker.

Sand the high points in short cycles

Start on a failed print or hidden patch. Wrap the abrasive around a small, firm block for broad planes. Use a shaped support for gentle curves. Folded paper without support belongs only where the geometry truly requires compliance; fingertips can dish the area between layer ridges.

1. Make a few light strokes across the prominent ridges rather than following one layer groove.
2. Stop, extract the dust, and let the part return to room temperature.
3. Inspect under low-angle light. Look for uniform contact on peaks, not instant disappearance of valleys.
4. Replace the abrasive when dust cakes between grains or the sheet begins to slide and polish.
5. Repeat only while geometry remains crisp and the surface cuts cleanly.

Heat warning signs include smeared plastic, rolled burrs, glossy streaks, softened corners, a warm part, or an abruptly loaded sheet. Stop and cool naturally. Pressing harder generates more heat and often deepens isolated scratches.

Refine, fill, or stop

Move to the next finer grade only after the previous scratch pattern is even on the areas meant to be sanded. Clean the bench, part, hands, and support between grades. A coarse grain carried forward can leave one line that survives several steps. The raking-light progress method can help reveal lingering ridges, but use pencil only on a sacrificial sample or compatible primer—not on a porous final surface.

For broad valleys, apply a filler or high-build primer explicitly compatible with the plastic and topcoat. Follow its ventilation, film-build, cure, and sanding instructions. Do not bury uncured resin, trapped solvent, or loose dust. Sand the cured filler to shape while preserving edges, then repeat primer only as the system allows.

Thin brackets and repaired joints need a different stop rule from display models. The ABS weld-sanding guide explains how to preserve surrounding geometry; the same principle applies even when the print is another material.

Use objective stop checks

For paint-ready work, stop when the compatible primer shows continuous adhesion and the planned final abrasive leaves an even pattern without exposed valleys or fuzzy edges. For visible plastic, stop when color and sheen are uniform enough under several light angles. For dimensional cleanup, verify fit without forcing the parts and compare critical dimensions to the drawing.

Do not keep sanding because the part still looks striped when wet or dusty. Clean it, let it cool, and inspect dry. A controlled surface that serves the next operation is success; removing every visible print layer at the expense of wall thickness is not.
