Abrasives: structured (Trizact) vs conventional—scratch uniformity tests

Quick answer: Compare a structured abrasive with a conventional coated abrasive by holding the substrate, starting scratch, tool, interface, contact area, pass definition, pressure method, and inspection conditions constant. Run at least three fresh samples per candidate, keep wet and dry systems in separate trials, and score both the overall pattern and the deepest outlier scratches. Do not treat a P-grade and a structured abrasive's A-grade or named step as direct equivalents without manufacturer documentation.

Structured abrasives such as 3M Trizact use precisely shaped abrasive structures designed to expose fresh mineral as they wear. Conventional coated abrasives distribute mineral across a backing with bond coats. Either family can make a useful, uniform surface in the right system; the label alone does not predict the result on your material.

The defensible question is narrow: “Under this recorded shop protocol, which candidate leaves the more acceptable scratch distribution before my next process?” This is a comparison method, not a report of eQualle laboratory results.

Define “uniform” before the test

A surface can look evenly hazed from one angle yet contain a few deep lines that show after coating or polishing. Define acceptance before sanding so the winner is not chosen by preference after the fact.

Use four observations:

• Coverage: how much of the test area has replaced the prepared starting pattern.
• Outliers: number and location of visibly deeper scratches under the fixed inspection setup.
• Directionality: whether stroke or orbit marks form obvious bands.
• Next-step readiness: whether the documented downstream polish, coating, or abrasive removes the pattern on a separate validation coupon.

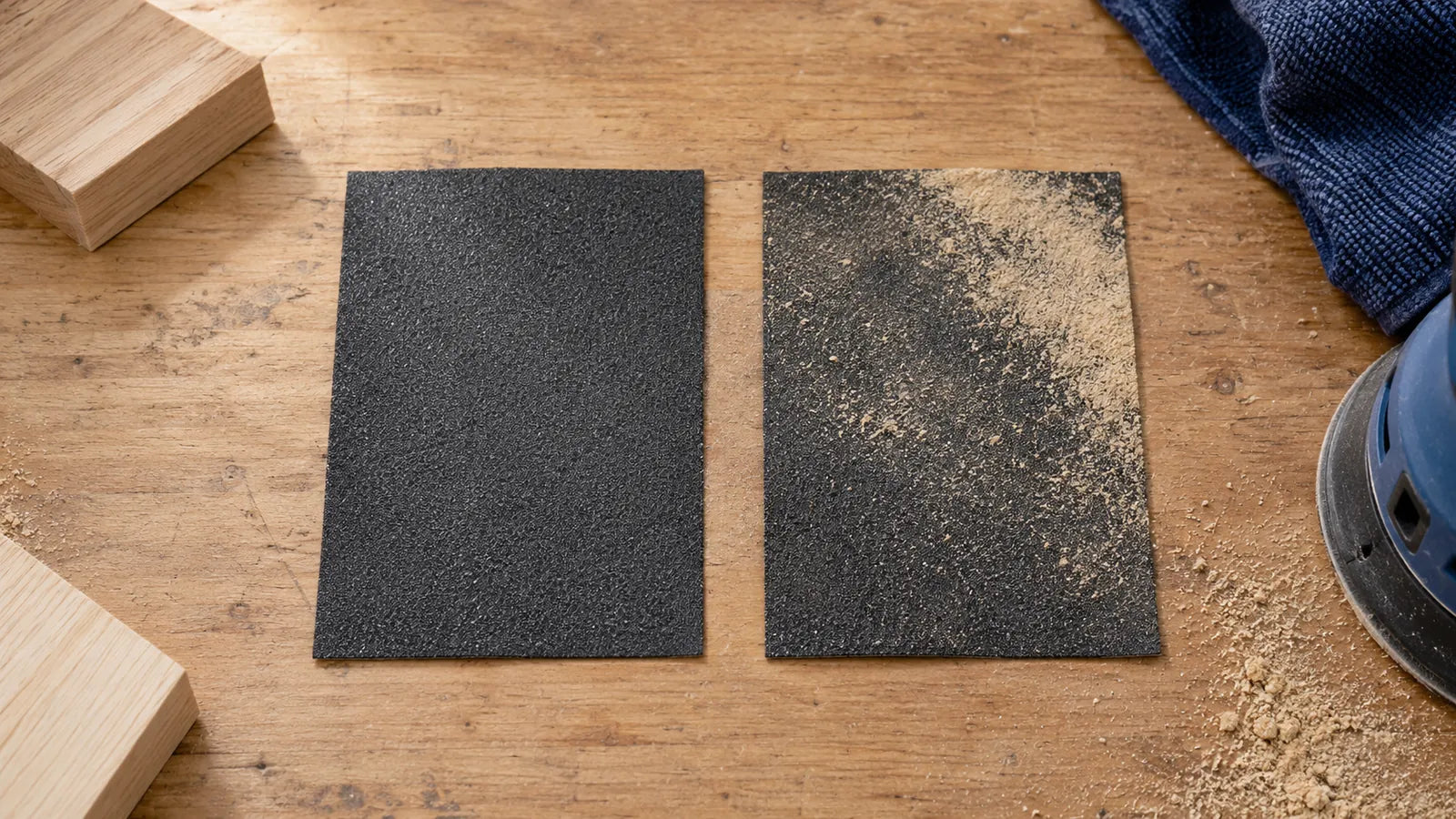

Cut rate, loading, edge behavior, abrasive life, and cost per accepted sample can be secondary measurements. Do not collapse them into “uniformity.” A product that cuts faster may still need another refinement step; a visually fine pattern may cut too slowly for the process.

Build matched coupons and controls

Prepare coupons from one material and batch when practical. Make them large enough to clamp securely and reserve an unsanded margin for labels. Establish the same starting pattern across every test area, then inspect and reject coupons with pits, inclusions, coating defects, or previous deep scratches.

Randomize the order in which candidates are tested so operator fatigue or a changing slurry does not always favor one product. Use a new abrasive piece for each replicate. Three samples per candidate will not create a universal performance claim, but they make a one-off anomaly easier to see.

Do not run a product wet unless its instructions permit it. 3M's official Trizact 3000 disc page describes microreplicated pyramids and a wet automotive-refinishing use for that specific product. Those details do not automatically apply to every structured abrasive.

Keep grade names inside their own systems

P400, 400, A30, 3000, and a color-coded finishing step may reference different standards, particle descriptions, or manufacturer processes. A similar number is not proof of equal scratch depth or cut. Compare candidates selected for the same downstream task, based on their technical data sheets, rather than forcing a numerical conversion.

For the conventional side, a 400-grit 50-sheet option and the same 400-grit sheet format can serve as one labeled candidate when compatible with the substrate and method. Availability changes, and this item appeared sold out during drafting, so the link identifies the catalog format rather than promising supply. Record the exact sheet rather than writing only “400.”

Create a separate record for the structured candidate, including its product family, labeled step, backing, hole pattern, and required interface. Trizact is a 3M trademark; “structured” describes the comparison category, not a claim that all products share one construction.

Run the A/B sequence

1. Photograph the accepted starting coupon with its sample ID and scale marker outside the test area.
2. Install a fresh candidate abrasive and verify that the pad, holes, and interface match its instructions.
3. Sand the fixed area for the defined exposure. Stop and log any tearing, clogging, slurry change, or tool instability.
4. Clean and dry every coupon by the same non-altering method.
5. Inspect without knowing which candidate made the sample if a second evaluator can relabel them.
6. Repeat with fresh coupons until every candidate has the planned replicates.
7. Run the intended next process on separate validation coupons, not on the original reference set.

Use the scratch-pattern library method to preserve physical references and the sanding grit ledger to record each variable. If you adjust speed, passes, interface, or lubrication after a pilot, restart both candidate sets; do not mix the old and new protocols.

Score without inventing precision

A simple ordinal score is often more honest than micrometers you did not measure. For example, rate coverage as incomplete, complete, or overworked; outliers as none seen, isolated, or frequent; and directionality as low, visible, or dominant. Record the lamp and viewing geometry beside the ratings. If microscopy or profilometry is available, document the instrument, calibration, traced area, filter settings, and statistic used.

Report observations per sample before summarizing. “Candidate S had fewer visible outliers on two of three coated-aluminum coupons under this setup” is bounded; “structured abrasives always scratch more uniformly” is not. Include failures, loading, and variability.

The result should drive a local process decision: select the candidate whose repeatable pattern meets the next-step requirement with acceptable time and control. Change the substrate, tool, backing, liquid, or downstream finish, and the comparison must be rerun.
