Tools: Choosing Trizact/Structured Abrasives for Uniform Scratch

A structured abrasive does not create a uniform scratch by itself. The result comes from a matched stack: exact disc, attachment, backup pad, optional interface, machine motion, operating mode, and surface geometry. The useful buying decision is therefore not “Which Trizact grit?” but “Can this entire tool stack run the manufacturer’s documented process on my part?”

Start with the exact product code

Trizact is a family of products built for different substrates and processes. Record the full series, grade, diameter, hole pattern, attachment style, and wet, damp, or dry instruction from the technical sheet. A seller photo or broad “fine finishing” description is not enough to establish compatibility.

3M’s page for Trizact 443SA describes three-dimensional abrasive structures, a foam backing, damp use, and a role refining defined incoming scratches. That combination cannot be generalized to every structured disc carrying the same brand name. Treat grade designations as product-system labels unless the manufacturer supplies a conversion or sequence.

Before buying, write down the incoming scratch. If its grade and abrasive construction are unknown, reproduce the repair on a sample or step back until the scratch can be identified. A finishing disc intended to refine a known 1500-grade field is not a reliable way to erase random deep marks.

Match the physical stack from disc to spindle

Check compatibility in order, beginning at the work surface:

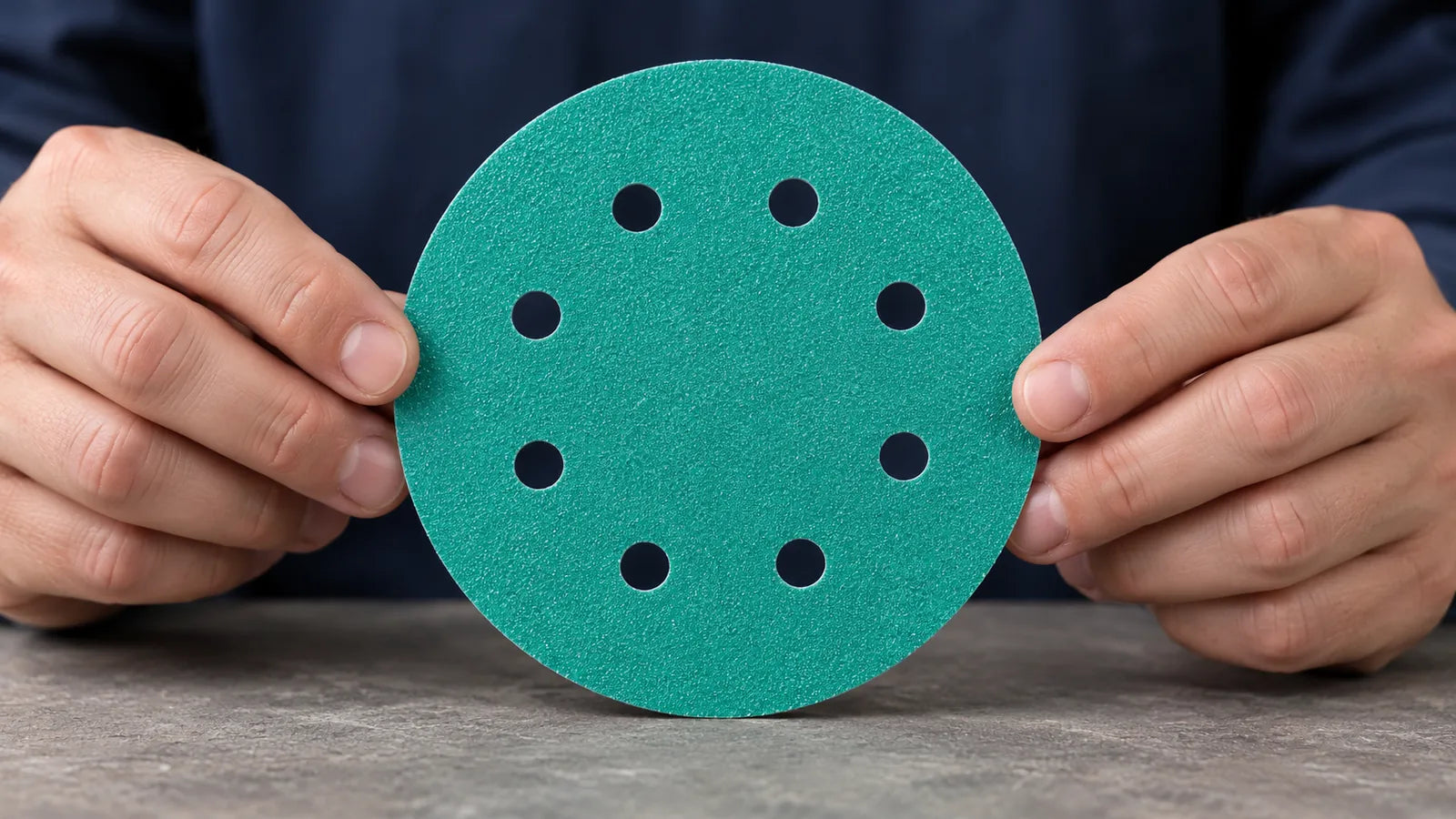

A hole pattern is functional only when it aligns with the approved pad and extraction system. A soft interface can help a disc conform to gentle curves, but it also lets pressure roll across edges and style lines. A harder pad supports flatter cutting on broad planes. Select support from the disc maker’s instructions and the shape of the part, not from a belief that softer is always safer.

The five-inch disc selection guide covers diameter, holes, and attachment fundamentals. Use it to screen hardware, then return to the exact structured-disc data sheet for the final stack.

Separate machine settings from operator habits

Use only a sander and electrical or pneumatic setup approved for the specified operating mode. “Damp” does not authorize spraying water around a tool that is not rated for it. Follow the disc and tool manufacturers for speed, pressure, moisture, motion, overlap, extraction, and inspection intervals.

Uniform motion is easier when the hose or cord does not pull the machine sideways. Keep the pad flat, begin and end the pass as directed, and avoid pausing while cutting. Do not tilt the disc to make a stubborn line disappear. Tilting concentrates force on a narrow edge and defeats the structured contact pattern.

Mark panel edges and sharp crowns as exclusion zones if the coating maker or repair procedure requires hand work there. A machine setting qualified on a broad flat is not automatically safe on a narrow character line.

Commission the stack on a reference panel

Prepare a sample with the same substrate or coating, cure, contour, and incoming scratch as the job. Draw a grid with a compatible guide coat or inspection method. Run a small zone using the documented settings, then clean it and inspect under raking light.

A commissioned setup should show one even scratch field without pigtails, isolated coarse lines, glossy islands, edge breakthrough, or a sharp transition caused by pad tilt. Complete the next polishing or finishing stage on half the test. This proves whether the downstream system can remove the structured scratch without excessive time or film loss.

Keep the panel as a reference and label the disc code, pad, interface, machine, speed setting, moisture mode, passes, and date. The scratch-pattern library workflow turns that record into a repeatable shop standard rather than a one-time visual impression.

Conventional 600-grit wet-or-dry sheets and the same pack at the alternate catalog destination can provide a labeled hand-sanding reference when that grade is approved. They are not structured abrasives and do not validate a machine-disc stack. A 600 label on one construction should not be used as a conversion for another.

Use a stop sheet during production

Write the acceptable scratch appearance and rejection signs beside the machine settings. Stop for a loaded or damaged disc, a change in machine vibration, loss of extraction, dry running in a specified damp process, unexpected heat, long debris tracks, or glossy low spots that do not respond evenly. Replace or clean components only as their makers permit, then recheck the reference zone.

This setup-first approach makes purchasing concrete. Buy the exact disc only after its pad, interface, tool motion, and operating mode are confirmed; commission the assembled stack before production. Uniform scratch is evidence that the system works together, not a property promised by the abrasive name alone.
