5 Inch Sanding Discs: Uses and Grit Selection

Quick answer: 5 inch sanding discs are best for broad, accessible surfaces where a random-orbit or DA sander can stay flat. Use coarser discs for controlled removal, medium grits for prep, and finer grits only after the previous scratch pattern is gone.

A 5 inch disc is a speed tool. It covers more surface than a hand block and makes grit changes fast, but it also multiplies mistakes. A tilted pad can round an edge quickly. Dust trapped under the disc can create random scratches. The format works well when the pad, abrasive, speed, and surface all fit.

Where 5 inch discs fit

Use discs on flat or gently curved areas with enough room for the pad:

• cabinet doors and panels;
• tabletops and shelves;
• broad primer areas;
• sheet metal;
• bodywork flats;
• fiberglass or composite panels when the process allows it.

Avoid relying on the disc for crisp edges, small profiles, tight corners, narrow rails, or final hand inspection. In wet or edge-sensitive areas, switch to a hand pad or sheet. The wet sanding pad guide explains that slower, backed hand control.

Grit selection

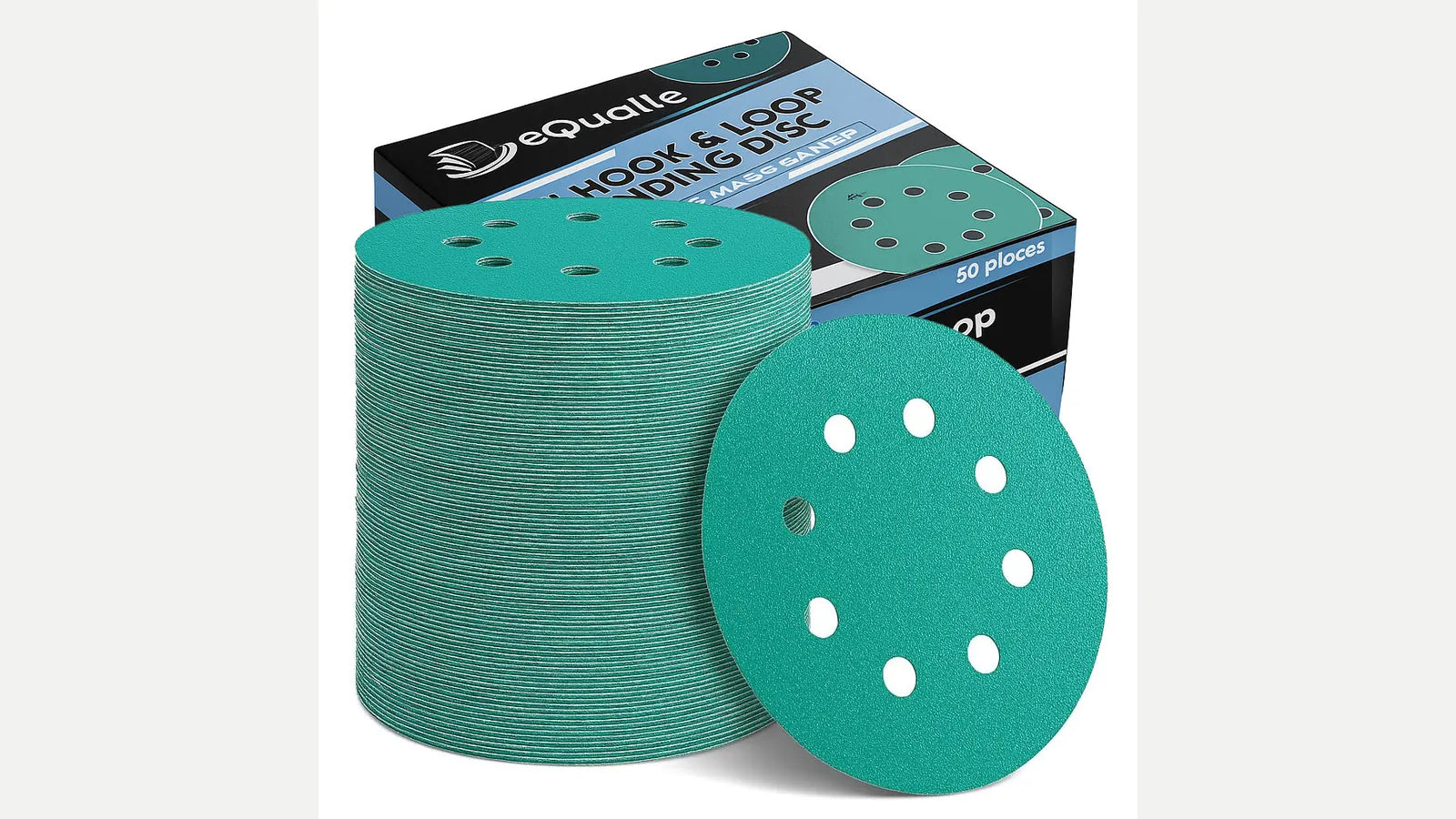

The eQualle 5-inch 8-hole assorted disc 50-pack includes 80, 120, 180, 220, and 320 grit.

For medium cutting, the published 120 grit sandpaper guide explains where 120 belongs. For finer prep, see the 320 grit sandpaper guide.

Align the holes

An 8-hole disc should be installed so the holes match the sander pad. The holes help dust leave the cutting interface when extraction is connected. Misalignment blocks airflow and leaves debris under the abrasive.

Dust extraction does not replace eye, breathing, or cleanup controls. It simply helps the abrasive cut more consistently.

Watch the product format

This eQualle video shows the 5 inch hook-and-loop disc pack and the visible 8-hole layout.

The important checks are diameter, attachment type, hole pattern, and grit range.

Avoid common disc mistakes

Pressing harder when cutting slows

A dull or loaded disc should be changed. Extra pressure adds heat and can create swirl marks.

Tilting the pad

Keep the pad flat. If the edge needs work, switch to a sheet on a firm block.

Skipping grits

Do not ask 320 grit to erase deep 80 grit marks. Step through the sequence.

Using discs for every area

Discs are efficient on flats. Sheets and pads are better for edges, detail work, and many wet-sanding tasks.

FAQ

What is the best grit for 5 inch sanding discs?

There is no single best grit. Use 80 or 120 for cutting, 180 or 220 for refinement, and 320 for fine prep when deeper scratches are already gone.

Are 8-hole discs only for dust extraction?

The holes are primarily for dust movement through compatible pads. They must align with the tool to help.

Can I use 5 inch discs wet?

Only when the tool, abrasive, and process are rated for wet use. Do not assume waterproof abrasive makes an electric sander wet-safe.

When should I switch from discs to sheets?

Switch near edges, corners, profiles, small parts, final hand passes, and any area where the pad cannot stay flat.
