Choosing Trizact/Structured Abrasives to Beat Swirl on Dark Finishes

Structured abrasives can make scratch refinement more predictable on dark finishes, but they are not the automatic cure for every visible swirl. First decide whether the marks are polishing haze, random wash marring, isolated deep scratches, or a known sanding pattern. Trizact belongs in a documented paint-finishing sequence when controlled abrasive refinement is required; adding it to a polishable surface removes film unnecessarily.

Diagnose the mark before choosing a disc

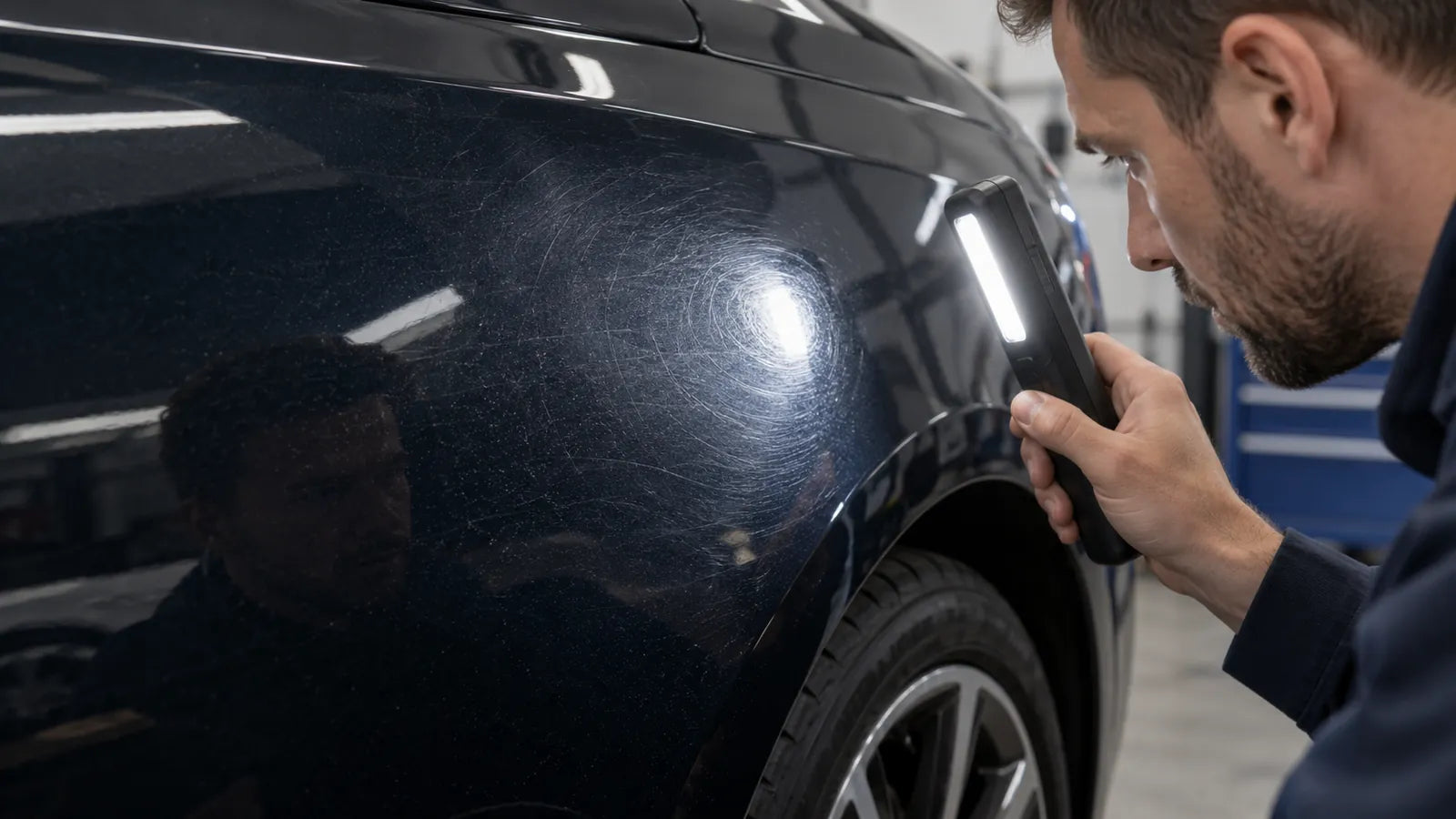

Clean the panel with products approved by the paint maker, then inspect it with a small, high-output light from several angles. Mark behavior provides clues:

• holograms that appear to move with the light often come from polishing technique;
• random fine arcs may be wash or wipe marring;
• uniform directional scratches may remain from a sanding step;
• one line that catches a fingernail may be deeper than the surrounding system can safely remove.

These are diagnostic clues, not thickness measurements. If a coating gauge, paint history, or repair record is unavailable, avoid assuming there is enough clear to sand. Edges, ridges, and repainted areas need particular caution. A compound-and-pad test on a safe, inconspicuous area may resolve shallow haze without introducing a sanding step.

Select by the incoming scratch, not the color

Dark paint does not require a special grade number. It simply exposes leftover scratches and polish haze more readily. Choose a structured abrasive only when its manufacturer identifies the grade as appropriate for the known incoming scratch and next compound step.

For example, 3M describes its Trizact 3000-grade foam disc as a wet-use step for refining 1200- or 1500-grade scratches in an automotive paint-finishing process. Another product, Trizact 443SA, has its own documented incoming-scratch range, damp-use method, backing, and interface guidance. Those pages show why the full product code matters: Trizact is a technology family, not one interchangeable disc.

A defensible selection records five matches:

1. Exact disc series and grade match the existing scratch.
2. Diameter, attachment, and hole pattern match the approved backup pad.
3. Foam or interface choice suits the panel contour without rounding edges.
4. Wet, damp, or dry use follows that product’s instructions.
5. The next compound and pad are proven to remove the refined scratch.

Run the whole process on one small test area

Mask a small section on a broad, accessible part of the panel. Keep away from edges and body lines. Follow the abrasive maker’s specified tool, pad, interface, moisture, speed, pressure, motion, overlap, and pass guidance. Clean the area and inspect before extending the process.

Then compound and polish the test section all the way to the intended finish. Judging immediately after the structured abrasive step answers only whether the scratch looks uniform; it does not prove the final polishing system can clear it. Under the same inspection light, compare the test with untouched paint from multiple angles.

Stop if the test shows persistent isolated lines, rapid loss of texture at an edge, unusual color transfer, soft film, loading, or a scratch the next stage cannot remove. Re-diagnose rather than escalating automatically. The deep-scratch recovery guide helps distinguish a leftover coarse line from a uniformly refinable field.

Control the causes of swirl after sanding

A well-chosen disc still fails when contamination or process drift introduces deeper marks. Clean panel, pad, interface, hands, and hose before the test. Replace a disc that has picked up debris or shows damage. Keep the disc flat and do not let its edge dig into a curve. Maintain the moisture level specified for the exact product; too little or too much can change cut, observation, and debris behavior.

Inspect between stages under clean light. A uniform fine haze is expected at some abrasive steps; a few long arcs or pigtails are not. The pigtail-mark troubleshooting guide explains how trapped particles and machine behavior create isolated defects that a finer grade may soften but not remove.

Conventional 600-grit wet-or-dry sheets and their alternate catalog listing are included for format comparison only. They are not Trizact, not equivalent to a structured 3000-grade disc, and not a recommended first response to swirl marks on finished dark clearcoat. Grade labels across abrasive systems are not direct substitutions without manufacturer documentation.

Buy the system, not a promising label

Before ordering, download the technical sheet for the exact disc code and confirm compatible pad, interface, machine pattern, operating mode, and downstream compound. Buy enough identical discs to complete the panel without changing constructions halfway through, but commission one disc on the test area before opening the rest.

The go/no-go decision is simple: if the defect can be corrected by polishing within the paint maker’s limits, skip sanding. If a known sanding scratch needs refinement and the structured system is documented for that incoming mark, test the complete abrasive-to-polish sequence. On a dark finish, uniformity is earned by diagnosis, clean process, and verification—not by choosing the finest-sounding disc.
