Rub Rail Scuffs: Use Radius Blocks Without Flattening the Profile

Identify the rail before choosing the repair

Boat rub rails can be vinyl, rigid plastic, rubber-like material, anodized or painted metal, stainless trim, or a multi-piece extrusion. A method that works on solid-colored plastic may ruin a plated, coated, or textured surface. Find the boat or rail manufacturer’s material and care guidance before sanding.

Wash away salt and grit. Inspect the scuff under side light and magnification. A color transfer sitting on the surface may come off with an approved cleaner and needs no abrasion. A cut, split, loose insert, distorted extrusion, exposed fastener, or gap at the hull joint is a repair problem. Sanding can soften the evidence while leaving water entry or attachment failure unresolved.

Choose a hidden test area with the same material and weathering. Check whether the color continues through the section or exists only in a thin outer layer.

Copy the existing radius

Press a contour gauge, soft modeling material, or paper template against an undamaged section without scratching it. Transfer that curve to a small wood, cork, or firm foam support. The support should contact the repair evenly while clearing adjacent hull and hardware.

A flat block touches only the crown of a convex rail and quickly creates a flat. Fingertips wrap around the profile but concentrate pressure at their tips, producing grooves. The guide to support choice for contours explains the tradeoff between firm shape control and soft conformity.

Cover the support with a small abrasive strip and secure the ends where they cannot rub the hull. Mark the block’s orientation so it is not turned sideways during use.

Remove transfer before removing rail material

Try the rail maker’s approved cleaning method first. Work from mild to stronger only within those instructions. Solvent that softens plastic, removes plasticizer, or attacks surrounding sealant can create more damage than the scuff.

If a scratch catches a fingernail or exposes a different color, use the scratch-repair decision process as a general depth check, while remembering that a rub rail may not be acrylic. Deep cuts often cannot be erased without changing the profile. The practical goal may be to soften a sharp lip and reduce contrast rather than make the mark disappear.

Mask the hull, insert, and metal fasteners. Do not bridge abrasive from the rail onto gelcoat or paint; the materials cut at different rates.

Refine with short, supported strokes

Begin with the finest grade that changes the tested scuff. A 220-grit piece can reduce a raised lip on a durable solid material; 400 grit can refine the scratch when the manufacturer permits it. 220-grit sheets in a 10-sheet pack and 400-grit sheets can be cut into narrow strips. The same 400-grit pack through a separate checkout provides another purchase path.

Move along the rail, keeping the radius block seated. Make two or three passes, clean, and inspect. Do not rock the block across the crown. If residue smears or forms strings, stop; the polymer may be too warm, too soft, or unsuitable for abrasion.

On metal rails, keep the stroke aligned with the established grain. On coated metal, a different color beneath the scuff may mean the coating is already breached. Further sanding will enlarge the exposed patch.

Restore appearance with the material-specific finish

Plastic polish, metal polish, paint, or replacement insert are not interchangeable. Use only a product approved for the identified rail. Test gloss and color on the hidden section. A polished spot can look darker or shinier than weathered surroundings, making a small repair more visible.

If the rail requires paint or clear coat, follow its cleaning, primer, and cure schedule. Keep products away from sealant joints and deck traction surfaces. Reinstall any removed insert without stretching it beyond the maker’s instructions.

Inspect the rail from bow and stern. A flat or hollow that disappears head-on becomes obvious in a long reflection. Run a cloth across the repair to confirm there are no sharp edges.

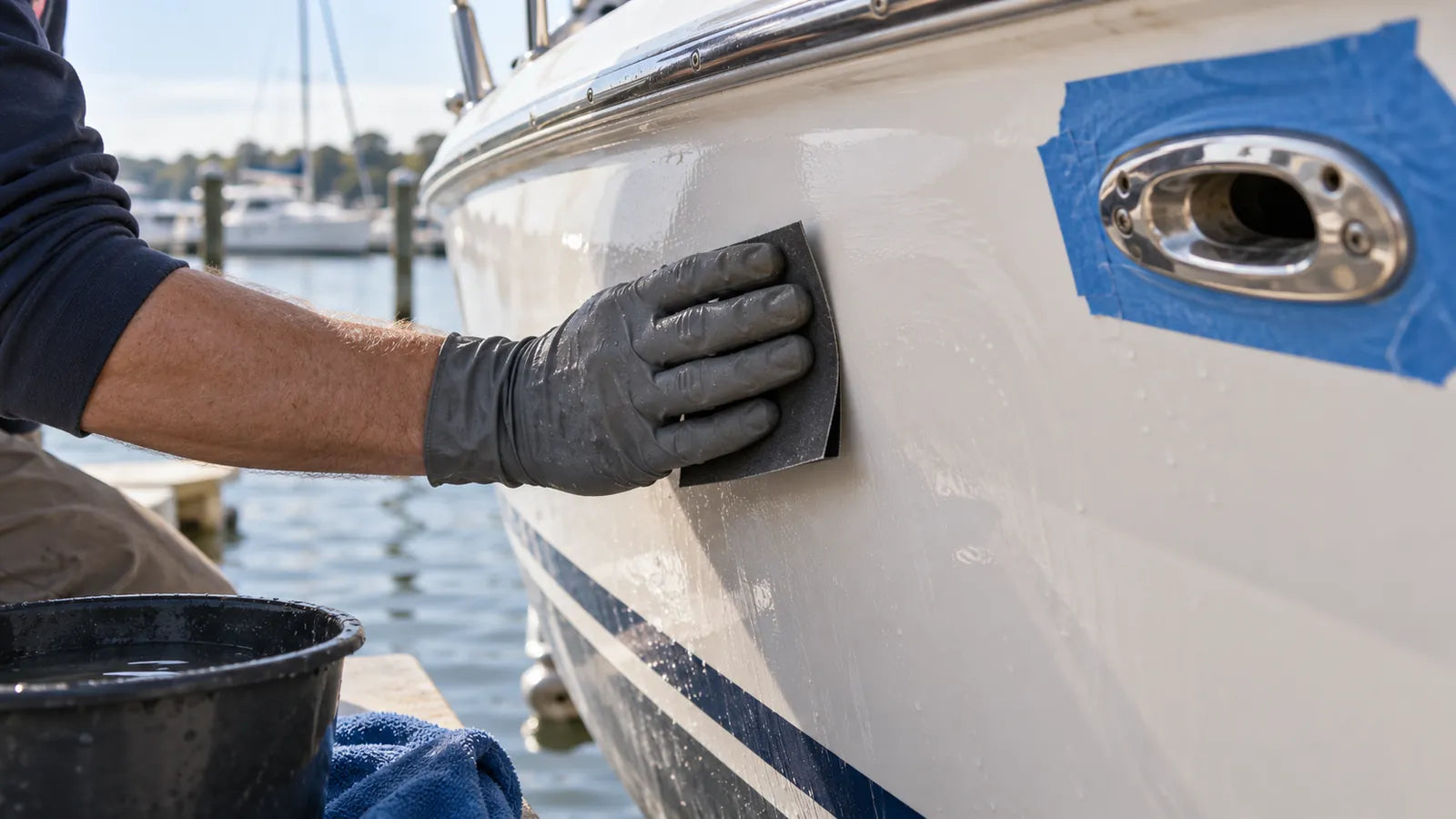

A brief detail-sanding example

Make the jig reusable

Write the rail location and orientation on the radius block, then store it with a clean template of the undamaged profile. If several boats or rail sections differ, do not assume the same jig fits them all. Before each reuse, hold the block against an intact section and check for rocking, gaps, worn foam, or adhesive lumps. A deformed support transfers its defect to every repair.

The best repair preserves the rail’s designed shape and attachment. Stop once the sharp lip is controlled and the tested finish can blend the appearance. If removing the full scratch would flatten the crown, expose another layer, or thin the rail, replacement or a visible but structurally sound mark is the better result.
