Sand a Crisp Antifouling Edge at the Waterline

Preserve a fair reference before removing paint

A crisp antifouling edge begins with line geometry, not with finer abrasive. If the existing edge is wavy, sanding directly along every rise and dip simply makes a cleaner wavy line. Before disturbing it, decide whether the current waterline is fair and correctly positioned for the boat’s normal loading.

Photograph both sides. Record repeatable measurements from fixed hull features rather than from stands, tarps, or the floor. Sight along the hull from bow and stern, and compare port and starboard only where the hull design makes that comparison valid. If the line position is uncertain, obtain the builder’s information or help from an experienced yard rather than moving it cosmetically.

Antifouling coatings can contain hazardous biocides and pigments. Read the coating label and safety data, follow marina and local environmental rules, and use the required containment, extraction, protective clothing, eye protection, and respiratory protection. Do not allow dust, chips, or slurry to reach soil, drains, or water.

Decide whether the edge needs feathering or rebuilding

Use a clean plastic scraper or gloved inspection to classify the old boundary:

• A firm, straight ridge between compatible coats may need only bounded feathering.
• Flaking, cracking, or a thick stack of incompatible paint needs removal to a sound layer under the coating maker’s process.
• Exposed laminate, damaged barrier coat, blisters, or gelcoat defects are repair problems, not line-sanding problems.
• A line that is fair but visually fuzzy can often be remasked without moving the underlying reference.

If small pores or cavities appear above the coating boundary, address the reason to repair gelcoat pinholes before sanding. Abrasion can open a defect, but it cannot fill or seal one.

Mask a guard line, not the final paint line

Clean the topside with products approved by the hull and coating manufacturers. Lay a temporary guard tape just outside the retained fair line. Its purpose is to protect the finished side during edge work, not to become buried under the new coating.

Use short tape lengths through changing curves so the edge remains fair without puckers. Step back every few feet and sight along the full line. Correct a gradual deviation now; do not use the abrasive to carve the paint back to a poorly placed tape edge.

Keep the sanding motion on the antifouling side and generally parallel to the boundary. Approach the tape with reduced pressure and a small flexible support that follows the hull curve. Avoid strokes that run from the painted side across the tape onto the topside, because they can drag contaminated residue over the clean face or cut beyond the intended boundary.

Refine only as finely as the coating permits

The required surface profile comes from the exact antifouling system. Many products call for a substantially coarser preparation than a fine finishing sheet, while some recoating situations prohibit sanding or specify a different method. Follow the current product instructions and yard rules.

Where 400 grit is specifically permitted for a final edge-refinement step, the 400-grit 25-sheet pack provides cuttable wet-or-dry sheets. The 400-grit eQualle collection and fine-abrasive collection show related options, and the same 25-sheet configuration links to the identical grade and quantity. It is not a universal whole-hull preparation grade.

Use fresh small pieces so a loaded edge does not scratch the topside. If wet sanding is allowed, use only enough liquid for the approved process and capture every drop of slurry with sheeting, absorbent barriers, and a collection method accepted by the site. If dry sanding is required or allowed, use compliant dust extraction. A contained wet-sanding setup helps organize bottles, blocks, squeegees, and clean/dirty zones, but local discharge rules remain controlling.

Check fairness with three views

Inspect the boundary before removing the guard tape:

1. Tangent view: sight nearly along the hull so short waves in the line become obvious.
2. Normal view: stand back at the expected viewing distance and check whether the line rises smoothly through the bow and stern curves.
3. Touch-light view: place a light obliquely across the edge and look for a hard ridge, loose chips, or scratches crossing onto the topside.

The edge is ready when the retained coating is sound, the ridge is reduced only as required, the topside remains untouched, and the surface profile matches the coating instructions. A color shadow or stain is not automatically a ridge; confirm it by light and touch before removing more material.

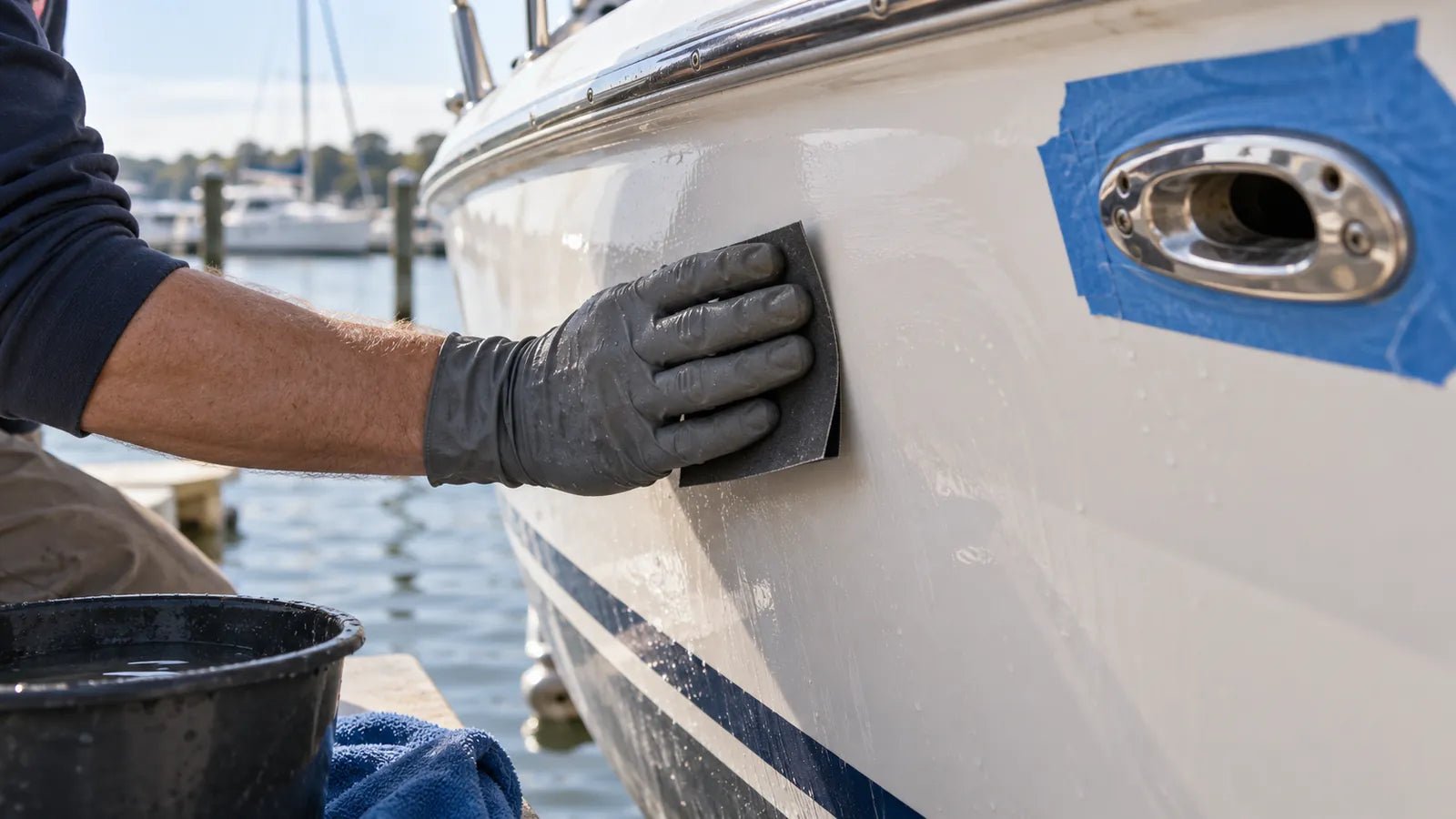

The accompanying illustration shows a gloved hand wet-sanding a broad curved white hull beside masked hardware, with a water film and droplets visible. It does not identify the coating, prove runoff containment, or establish abrasive compatibility.

Remove the guard and apply fresh paint masking

Vacuum or collect residue before lifting tape. Pull the temporary guard back over itself at a low angle so loose edge material is not snapped onto the clean topside. Inspect the boundary again and clean it by the coating maker’s method.

Apply fresh high-quality masking at the final fair line. Old sanding tape may be abraded, contaminated, or poorly sealed. Press only the edge needed to prevent paint creep, and remove the final tape at the paint maker’s specified stage. Waiting until a coating is fully hard can tear the edge; removing too early can let it flow.

Record the reference measurements, coating products, preparation grade, containment method, and final tape position. On the next haul-out, those notes let the crew preserve the same fair line instead of inventing it again from a weathered edge.
