Sand Mica and Metal-Flake Epoxy Without Creating Streaks

Find out where the visual effect lives

Metallic epoxy can contain mica or flake distributed through the pour, concentrated near the surface, arranged in flow lines, or protected beneath a clear flood coat. Sanding changes how light reaches those particles. Uneven removal can make one lane look pale and another dark even when both feel smooth.

Review the resin, pigment, pour depth, clear layer, cure schedule, and intended topcoat. Inspect an edge or saved sample to estimate how deeply the effect extends. If a decorative pattern exists only in a thin surface layer, heavy leveling may permanently remove it. A cloudy waxy film may instead be amine blush; use the epoxy surface-film cleanup before judging the color.

Do not sand resin that is soft, sticky, or outside the maker’s sanding window. Smearing creates streaks that are both physical and optical.

Separate surface texture from pigment variation

Clean and dry the piece, then photograph it under fixed light from two directions. Mark ridges and low spots on tape around the perimeter. Rotate the light rather than the work so natural metallic movement is not mistaken for a sanding defect.

Use a straightedge or known flat block to identify height. A dark band may be a low area retaining gloss, not a pigment concentration. A bright band may be a high area made matte by the first passes. The goal is a uniform geometric plane; dry color will remain misleading until the final clear or polish is tested.

If the piece joins wood, the method for keeping resin-to-wood transitions flat helps prevent a hollow at the material boundary.

Level in complete overlapping lanes

Support the work fully. Use a firm block on flat castings and a matched support on curves. Sand the whole logical field in overlapping passes rather than spot-working color differences. Alternate direction between grades so earlier scratches remain visible.

Begin with the finest grade that removes the actual defect. A 400-grit test may refine a cured level surface; 800 and 1500 can reduce the haze when the chosen clear or polish system benefits from them. 400-grit sheets, 800-grit sheets, and 1500-grit sheets in 10-sheet packs provide cut-to-fit stages. The same 1500-grit pack through a separate checkout is another purchase path.

Complete each pattern before moving finer. If one glossy low remains, fill or re-level according to the resin system rather than sanding every surrounding area down to it.

Keep slurry and heat from making false streaks

Wet sanding can make residue visible and reduce airborne dust, but colored slurry can settle in pores, seams, and adjacent wood. Use clean water only when the materials and next finish permit it. Work small zones, rinse the block, and wipe in one controlled direction with a clean cloth.

If the resin feels warm or the abrasive loads with gummy material, stop. Heat softens resin and can drag pigment-rich residue into lines. Fresh paper, lighter pressure, shorter passes, and adequate cure are better corrections than a coarser grade.

Do not reuse water or cloths between grades. A single coarse particle can create a bright line that looks like a pigment streak after clear coat.

Judge the appearance under the final system

Prepare a sample with the same pigment and layer structure. Take it through the planned final grade, cleaning method, clear coat, or compound. Inspect after cure against the unsanded control. The final clear may restore depth and color that look lost on the matte sanded surface.

Use only a coating or polish approved for the cured resin. Solvents, waxes, or incompatible clears can create fisheyes, softening, or a temporary filled appearance. If a thin colored layer was breached, no amount of finer sanding will replace missing pigment; a compatible new decorative or clear layer may be required.

A short scratch-control reference

Control the viewing setup

Metallic effects change as the light and observer move. Build a simple inspection station with one fixed lamp position, one dark background, and marked viewing angles. Photograph the control and sanded sample with the same exposure. This does not measure color scientifically, but it keeps ordinary lighting changes from being mistaken for sanding streaks and helps the coating sample answer the real question.

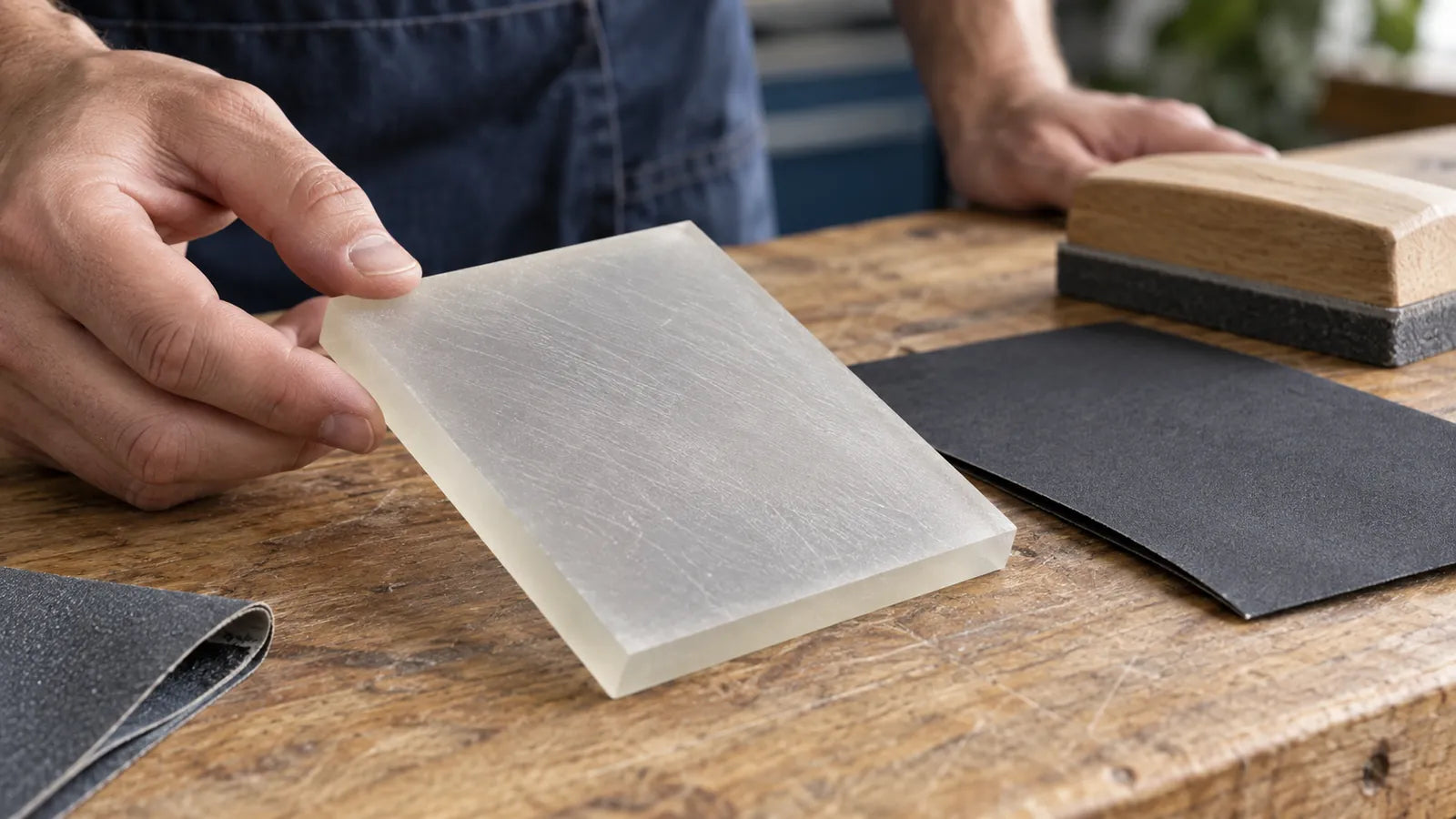

Mark a small orientation arrow on every test panel before sanding. Examine all panels with the arrow aligned, then rotate them together. If a line rotates with the panel, it is probably in the surface; if it stays fixed relative to the lamp, it is more likely a lighting artifact. This quick control prevents unnecessary extra sanding.

Inspect the finished field from several angles after all residue is gone. A good result has a continuous scratch pattern before coating and consistent depth after coating, while the intentional metallic movement remains. Do not chase every changing reflection: control height, heat, cleanliness, and layer depth, then let the tested final system reveal the design.
