Dry Sanding for Acrylic

Decide whether dry sanding belongs in the job

Dry sanding acrylic can be reasonable for a cut edge, a small high spot, or an opaque surface that will be painted. It is a poor default for restoring a clear viewing face. Dry friction concentrates heat, loose dust can become new scratches, and every coarse line must be removed later. Plaskolite’s acrylic fabrication guide recommends wet abrasive for scratch-removal finishing and calls for avoiding heat. Treat that as a useful boundary: a dry process is a controlled shaping or preparation step, not a promise of optical clarity.

Before choosing paper, identify the actual surface. Stop and consult the maker if the sheet has a mar-resistant coating, printed texture, mirror layer, hard coat, or an unknown laminate. Also stop if the part is a safety window, stressed bend, pressure component, or other critical item. This guide is for ordinary, uncoated acrylic parts where removal of a small amount of material is acceptable.

Use a hidden corner or offcut for the first trial. If the intended result is transparent and polished, go directly to a compatible finishing schedule such as acrylic scratch triage and wet sanding instead of trying to make dry paper do the entire job.

Match the starting grit to the defect

Choose the finest grit that changes the defect at a practical rate. The sequence below is a test ladder, not a universal specification.

A 320-grit sheet in a 50-sheet format is one cataloged option for the fine end of this test ladder. A second route to that same sheet format is provided for comparison. Those links identify format and grit only; they do not establish suitability for a particular acrylic grade.

Do not jump from 180 directly to 400 and assume the coarse marks have disappeared. Under a raking light, 180-grit lines may hide inside a finer haze. If 180 was genuinely necessary, use 220 and then 320, cleaning and inspecting between steps. Stop as soon as the surface meets the next operation’s written requirement.

Set up for low heat and clean inspection

Support the part fully so it does not chatter. For an edge, wrap the paper around a small, flat block and keep the block square. For a broad opaque face, use a larger firm pad that bridges rather than follows isolated lows. Protect adjacent finished faces with clean masking, but keep adhesive away from any area where the acrylic maker forbids it.

Work in short, overlapping strokes with light pressure. Lift the abrasive often so heat and debris cannot build unnoticed. The moment the paper drags, the acrylic smells hot, the dust begins to smear, or the surface looks glossy and softened, stop. Let the part cool naturally and replace or clean the sheet as appropriate. Adding pressure to a loaded sheet raises risk while making the scratch pattern less predictable.

Control dust at the source with ventilation or extraction appropriate to the job, and follow the acrylic supplier’s safety data sheet. Wear eye protection. Select respiratory protection from the SDS and your exposure assessment rather than guessing from particle visibility. Do not blow dust across the bench or rub it back into the face.

Use a repeatable dry-sanding pass

1. Clean the part and bench with methods approved by the acrylic manufacturer. Remove hard particles before they can be trapped under the paper.
2. Mark the defect boundary with removable masking outside the sanding zone. Do not draw a heavy guide line on a clear face unless the maker approves the marker.
3. Make five to ten light strokes in one direction. Keep the abrasive moving; dwelling creates a hot spot.

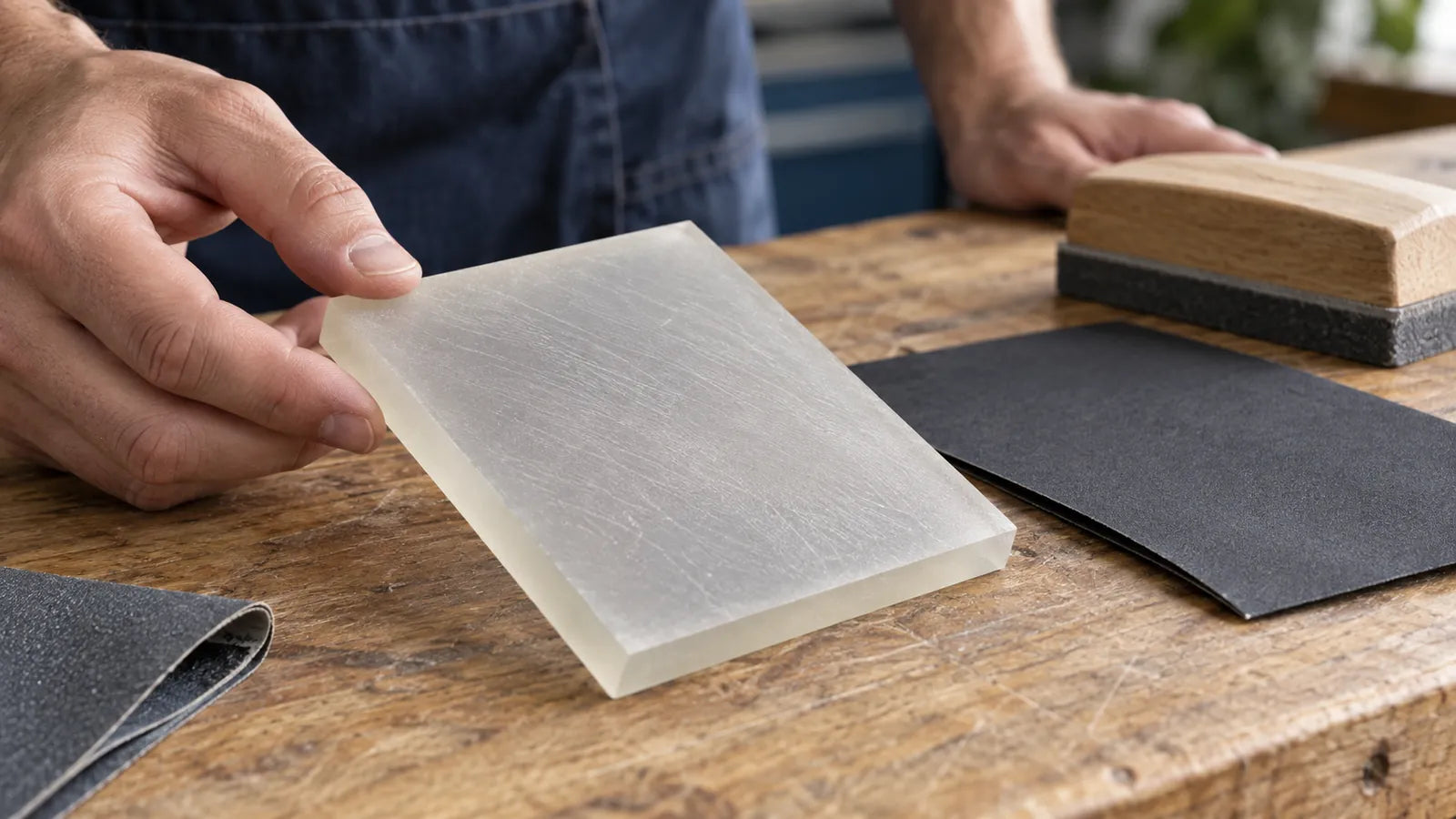

4. Stop, remove dust without grinding it into the surface, and inspect under a low-angle light.
5. Continue only if the defect is shrinking evenly. If a hollow is developing around it, change to a firmer or larger block rather than sanding the center harder.
6. At the next grit, change stroke direction. Remove every line from the previous step before advancing.
7. Clean the part, the block, and the work area between grits. A single coarse grain carried forward can restart the job.

Static can make a clean-looking acrylic surface collect particles immediately. The separate guide to removing static dust before sanding acrylic explains how to distinguish cleaning from further abrasion.

Watch the short acrylic note with the right limit

Stop by evidence, not by stroke count

A dry pass is finished when the target defect has been removed, the surface remains cool and dimensionally sound, and the scratch pattern is uniform at the required grade. It is not finished merely because the whole area looks frosted. Wipe or vacuum as the material instructions allow, then inspect from several angles.

Switch away from dry sanding if debris keeps loading the sheet, heat returns within a few strokes, the face begins to distort, or clarity is the final requirement. For paint preparation, let the coating manufacturer—not habit—set the last grit and cleaning method. For a bond edge, follow the adhesive supplier’s preparation instructions; an edge that looks smooth may be too rounded, contaminated, or polished for the joint design.

The practical rule is narrow: dry sand acrylic only when the part identity, finish target, and manufacturer guidance allow it. Use the smallest effective zone, the finest effective starting grit, short cool passes, and frequent inspection. That keeps a modest edge or prep correction from becoming a full-surface restoration problem.
