Flatten Drywall Butt-Joint Ramps With Raking Light

A butt joint needs width more than aggressive sanding

A drywall butt joint joins two square sheet ends without the recessed trough found along factory-tapered edges. Tape and compound therefore sit above the wall plane. The finish becomes visually flat by spreading that build-out into a broad, gentle ramp, not by grinding the center down until the tape or face paper is exposed.

Before sanding, let the compound dry for the full product-specified interval. Dark areas, softness, cool patches, or material that rolls under the abrasive indicate that it is not ready. Protect the room, use extraction and personal protection appropriate to the compound’s safety data, and keep dust out of electrical equipment and occupied spaces.

Set the light to reveal shape

Place a bright portable light roughly 6 to 12 inches from the wall and aim it across the joint, not directly at it. Start with the beam perpendicular to the seam so the center ridge and both shoulders cast long shadows. Then move the light to the opposite side. A high spot reverses its light and shadow; a stain or color change does not.

Finally, aim the light along the seam. This view reveals knife chatter, isolated beads, and changes where one compound pass ended. Circle findings on a paper sketch or use very light pencil marks only where the surface and finishing process allow them. The detailed pencil and raking-light inspection method helps keep the marks diagnostic rather than decorative.

Classify every visible line before sanding:

Sand the highs, preserve the ramp

Use a broad, flat hand support long enough to bridge minor texture without following every hollow. Begin on isolated tool ridges, then blend outward with light strokes parallel to the joint. Avoid scrubbing across the centerline with fingertip pressure. The center contains the tape and often has the least safe sanding allowance.

Where the compound maker permits it, a 120-grit 25-sheet pack offers cuttable sheets for initial ridge reduction, and the 120-grit collection shows related eQualle choices. Use the same 120-grit configuration only for the bounded high spots established by the light, not as a mandate to sand the entire ramp.

For final scratch refinement after the shape is correct, the 180-grit 25-sheet pack, 180-grit collection, and the same 180-grit configuration provide compatible sheet and pack-size choices. A finer step does not fix a low shoulder or a narrow build-out; those are coating-shape problems.

Hold a suitable vacuum nozzle near the block without letting it strike the wall. Vacuum the abrasive face and surface frequently. Loaded paper creates hard crumbs that carve tracks, and airborne dust makes raking-light judgment much harder.

Use a three-pass checkpoint

After three light passes over a marked high, stop. Vacuum, move the light to the other side, and inspect again. If the shadow shortens from both directions, the high is being reduced. If the center begins to show tape texture while the shoulders remain visible, sanding has reached its limit; apply a wider, thinner compound coat instead.

Run a clean broad knife or straightedge lightly across the area only as a reference, not as proof that the wall is mathematically planar. A butt joint can be visually successful while still having a shallow crown. What matters is that the transition is gradual enough to disappear under normal illumination and finish sheen.

Choose between abrasion and moisture deliberately. The guide to wet smoothing or dry sanding by defect explains why a soft compound edge may respond to a damp sponge while a cured hard ridge requires controlled dry abrasion. Do not combine both methods without allowing the material to dry again.

Prime before declaring the shape finished

After dust removal, view the wall under the same low light and from normal standing distance. Then apply the specified drywall primer or sealer. Bare compound and face paper absorb differently, so an unprimed joint can appear uneven even when its geometry is acceptable.

Once the primer is dry, repeat the cross-light inspection. A narrow rough line may need a light refinement; a broad shadow needs more build-out, not harder sanding. Protect the face paper at all times. If sanding fuzzes the paper, stop and follow the board manufacturer’s repair guidance before applying more water-based material.

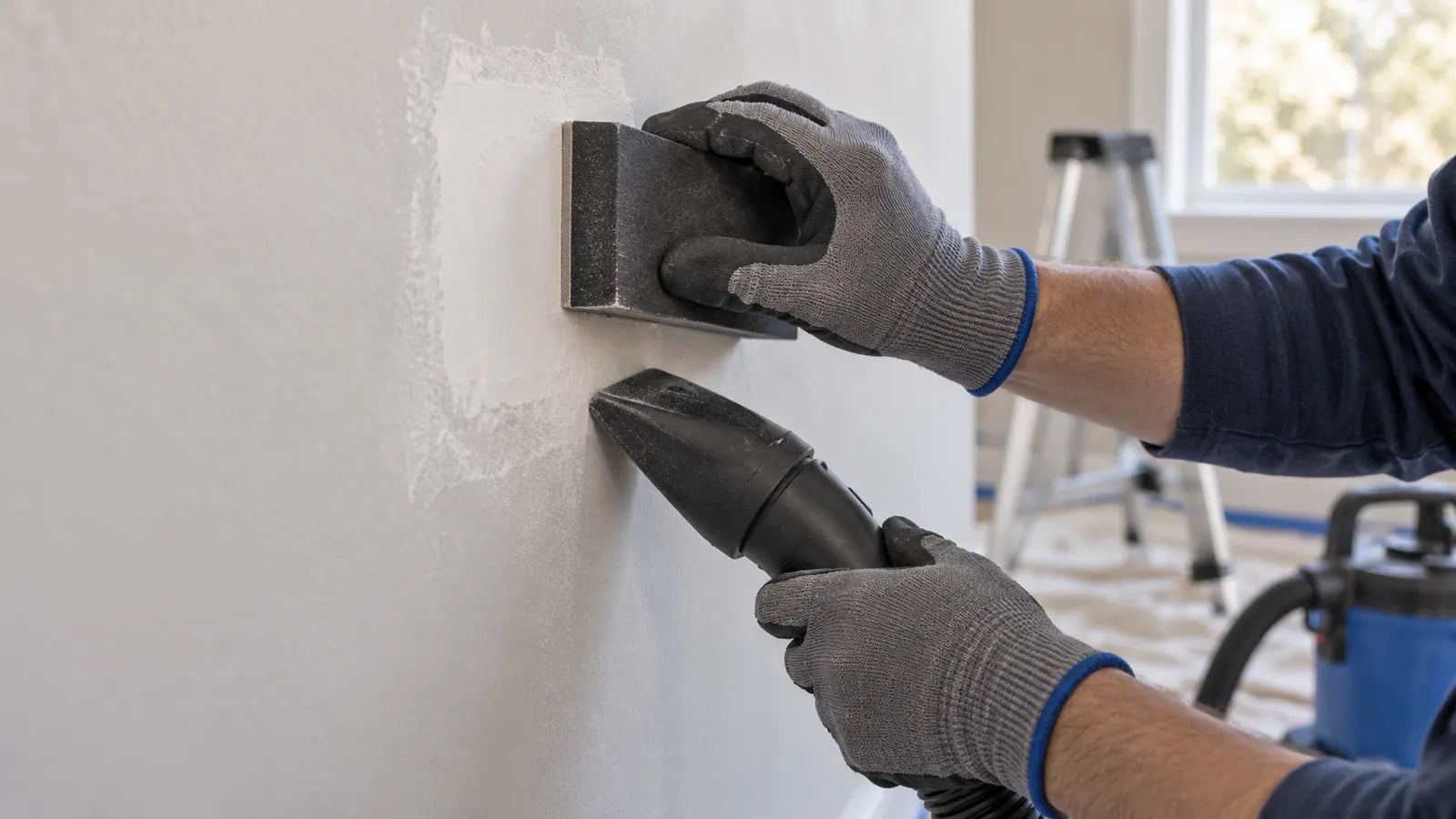

The accompanying illustration depicts gloved hands sanding a localized pale wall repair with a rectangular block while a vacuum nozzle sits below. It does not establish compound chemistry, cure state, or measured dust-capture efficiency.

Stop when the light crosses smoothly

The joint is ready when the low beam travels across the center and shoulders without an abrupt shadow, paper remains intact, and the primed surface reads as one gradual plane at normal viewing distance. Record which zones were sanded and which were filled. That distinction is the key to making the next butt joint flatter with less dust and less risk.
