Foam Interface Pads: How They Change Cut & Contour Following

Foam interface pads are the secret weapon for sanding curves, edges, and tricky profiles without gouging. Slipped between your sander’s backing plate (or a hand block) and the abrasive, a foam pad softens contact, increases conformity, and spreads pressure. Used correctly, they erase pigtails on curves and keep edges safe. Used carelessly, they can round crisp lines or leave an inconsistent scratch field. This guide shows you exactly how foam pads change the way abrasives cut—and how to adjust your grits, pressure, and passes for predictable, pro-level results.

Why Sanding with Foam Pads Matters

Traditional hard backers excel on flats but struggle where surfaces crown, dip, or roll. Foam pads add compliance: they allow the abrasive to follow micro-contours while maintaining contact. That means fewer edge digs, smoother transitions over inlays and fillets, and far less chatter on complex shapes. The trade-off is a slower, slightly shallower cut that’s sensitive to pressure. With the right grit ladder and a light touch, you’ll get clean, uniform scratch patterns that finish beautifully—even on curves.

Tools & Supplies

• Random-orbital (DA) sander with dust extraction and a soft interface pad (3–10 mm).
• Firm hand block for flats; soft foam hand pad for profiles and tight radii.

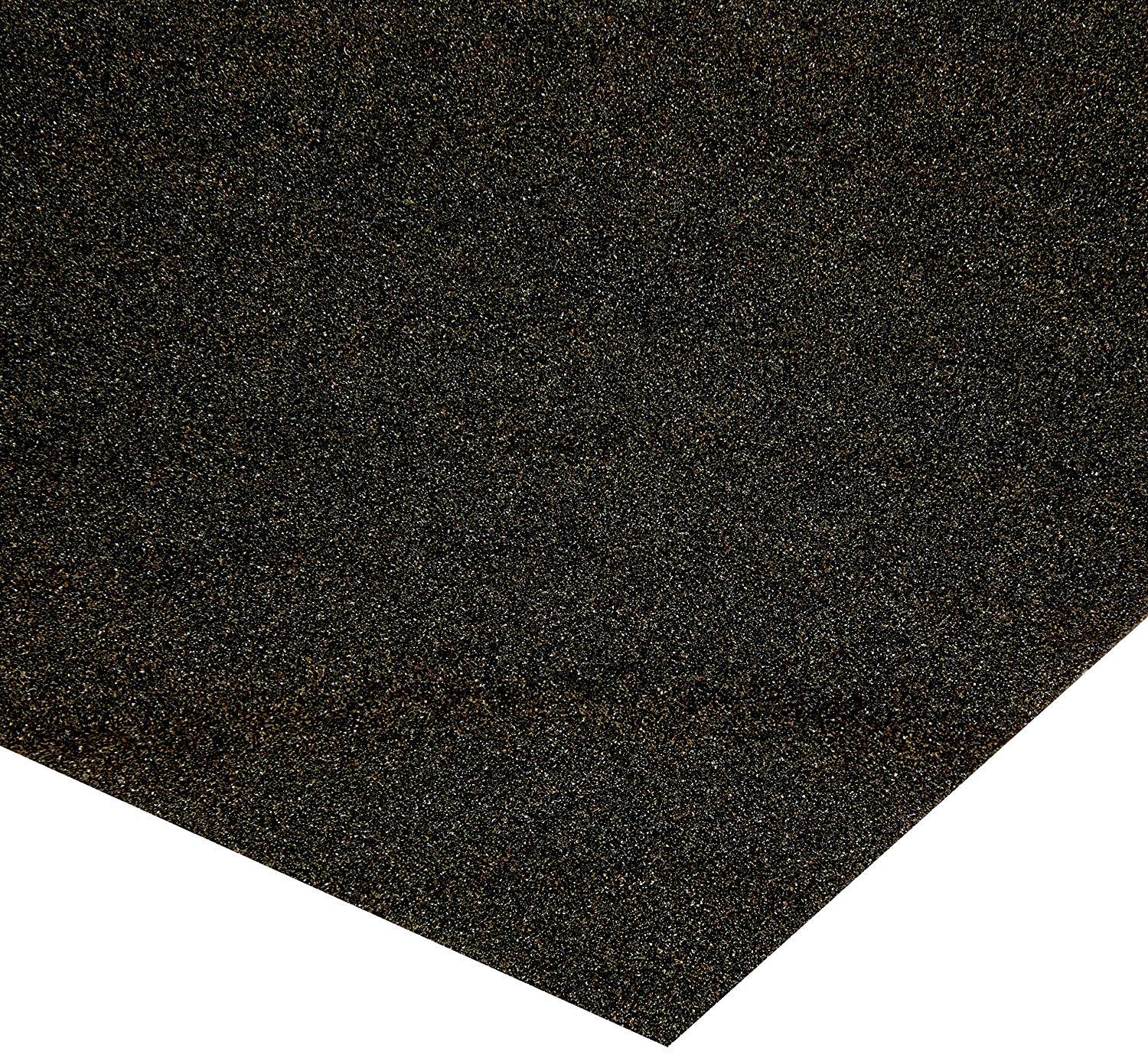

• Wet/dry silicon carbide sandpaper sheets: 280, 360, 500 (plus your usual coarse/fine bookends if needed).
• Raking/inspection light and a pencil for light crosshatch “map” marks.
• Vacuum/extractor, nylon brush for cleaning abrasive faces, microfiber towels, tack cloth.
• Masking tape for edge protection; straightedge for quick flatness checks.
• PPE: respirator (P100 for fine dust), eye/ear protection.

Recommended Grit Sequence (with Foam Pad)

• 280 grit: First refinement on shaped parts; removes coarse tracks while staying contour-friendly.
• 360 grit: Tightens the scratch field and blends flats-to-curves without faceting.
• 500 grit: Pre-finish clarity step on curves/profiles; minimizes swirl before topcoats or polishing.

Step-by-Step: Cleaner Curves, Safer Edges

1. Map the surface. Under raking light, pencil a faint crosshatch on crowns, coves, and edge fillets. These guide marks tell you when you’ve done enough so you don’t over-sand compliant areas.
2. Choose pad thickness. Use 3–5 mm foam for mild contours and better scratch control; 8–10 mm for deeper shapes and heavy edge safety. Thicker foam increases conformity but slows cut—plan an extra pass instead of extra pressure.
3. Start at 280 (light, overlapping passes). Mount your foam pad and wrap a fresh sheet of 280 Grit (25-pack). Run the DA at low/medium speed with feather-light pressure; keep the pad dead-flat to the surface. On hand work, use a soft foam hand pad and long strokes aligned to the shape. Stop when pencil marks just disappear.
4. Clean & check. Vacuum, brush the abrasive face, and inspect under raking light. The field should read uniformly satin with no shiny low islands or dark ridges. If you see them, your pressure wasn’t even—correct your technique before moving on.
5. Blend at 360. Step to 360 Grit (50-pack) and slightly change your pass direction (then finish with the grain or flow of the curve). 360 on foam erases 280 lines quickly while preserving profiles and edge crispness.
6. Pre-finish at 500. For show faces, switch to 500 Grit (100-pack). Keep strokes long and steady; resist pressing into coves—let the foam carry the contour. This step leaves a tight scratch field that finishes or polishes fast.
7. Edge discipline. Tape knife-sharp arrises during 280/360 to avoid softening. Remove tape and hand-kiss edges at the current grit with two light strokes on a soft pad—no rocking.
8. Dust control between grits. Vacuum in two directions and tack. Foam pads can carry stray coarse grains; cleanliness prevents mystery scratches at 360/500.
9. Finish or polish. After 500, film finishes lay flatter on curves with fewer nibs, and polishes cut faster with less swirl. If you plan a high-gloss topcoat, a brief 600–800 (wet) by hand is optional on broad curves—stay dry on raw wood.
10. Final inspect. Sweep a low light across curves. You should see uniform sheen transitions from flats to profiles with no faceting or halos. If a line lingers, back up one grit locally, fix, and re-advance.

Special Cases

Raised panel doors: Foam shines on the cove and ogee. Keep the DA speed low and strokes aligned to the profile; hand-finish tight inside corners to avoid flats.
Gelled/soft coatings (fresh latex, gel stain): Use very light pressure and fresh sheets; compliant pads can smear soft films if you lean.
Hard edges & inlays: Mask inlays first. Use a thinner foam pad (3–5 mm) to reduce edge rounding and keep geometry crisp.
Epoxy/resin transitions: Foam prevents chatter where resin meets wood; spend extra time at 360 so 500 doesn’t chase leftover 280 tracks.

Pro Tips

• Let foam do the conforming—not your wrist. Keep the pad flat and moving; angling concentrates pressure and prints swirls.
• Fresh sheets beat extra pressure. If cut slows, rotate to a fresh quadrant. Pressure heats and polishes, then scratches.
• Short sessions, cool surface. Warm curves deform under pressure; give the work a moment between passes.
• Alternate directions between grits. A slight diagonal shift at 360 reveals leftover 280 lines instantly.
• Block the flats. Use a firm block (no foam) on adjacent flats so they stay truly flat while foam handles only the profiles.
• Match grit to the task. 280 for quick refinement, 360 for blending, 500 for pre-finish clarity on curves—don’t skip steps.

Aftercare

• Brush and air-dry foam pads; don’t grind slurry into them. Store flat to prevent waves.
• Label your foam thickness (e.g., “5 mm curves,” “10 mm deep profiles”) for consistent results next time.
• Keep a separate, clean 500 sheet for final curve passes to avoid cross-contamination from earlier grits.
• Replace pads that feel compressed or “spongy”—tired foam prints uneven scratches.

FAQs

• Will foam pads make sanding slower? A bit—the cut is shallower—but the payoff is fewer defects and less rework on curves and edges.
• Do thicker pads always help? Only for deep contours. Thicker foam increases conformity and rounding risk on flats; choose the thinnest foam that maintains contact.
• Why am I seeing swirl on concave coves? Likely too much pressure or a dirty sheet. Lighten up, clean or replace the abrasive, and keep strokes aligned to the profile.
• Can I use foam on bare wood and between coats? Yes—dry on bare wood (280→360→500), then very light de-nibbing on cured films. Switch to wet only on fully cured finishes.
• Do I need different abrasives? Standard wet/dry silicon carbide sheets work great on foam. Focus on clean sheets and consistent technique.

Watch & Learn

Closing: Foam interface pads turn a blunt tool into a precision instrument on curves and edges—if you pair them with the right grits and a gentle touch. Keep it simple: refine with 280 Grit (25-pack), blend with 360 Grit (50-pack), and leave a tight, pre-finish field with 500 Grit (100-pack). Let the foam carry the contour, keep pressure light, and your profiles will stay crisp while your finishes look flawless.
