Sand End-Grain Chair Feet Flat: Jigs, Checks & Grit Map

Nothing makes a handmade chair feel cheap faster than a wobble. The culprit is almost always uneven end-grain feet. Because end grain is thirsty and tough, it sands differently than long grain—so you need a dead-flat reference, a disciplined grit sequence, and a repeatable way to check height as you go. This guide gives you all three so your chair lands solid on any floor without telegraphing scratches or rounding over crisp profiles.

Why Sanding Matters for Chair Feet

Chair legs terminate in small end-grain pads that bear all the load. If they’re even a hair out of plane, you’ll get a rock or shimmy. End grain also drinks finish; deep scratches or crushed fibers show through as dark halos after stain. Proper sanding flattens the footprint, squares the leg to the seat, and leaves a uniform scratch pattern that seals cleanly and wears evenly.

Tools You’ll Need

• Dead-flat reference surface (granite surface plate, thick glass, or melamine/MDF verified flat).

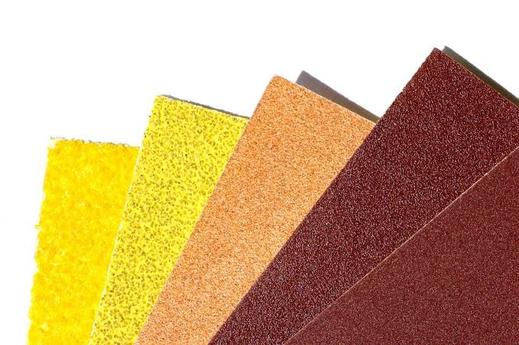

• 9×11 in silicon carbide wet/dry sheets (120–320). All eQualle sheets support wet or dry use.
• Spray adhesive or blue-tape + CA-glue trick to secure paper to the reference surface.
• Right-angle block or small square to keep the leg perfectly vertical while sanding.
• Pencil for scratch mapping, masking tape for labeling legs, and a fine-tip marker.
• Stack of playing cards/index cards (shim gauges), feeler gauges (optional).
• Small raking light (LED bar or headlamp) to reveal scratch direction and flatness.
• Vacuum and microfiber/tack cloth for dust control.

Recommended Grit Sequence

• 120 grit: Controlled leveling on the flat plate to bring high legs down.
• 180 grit: Refine and remove 120 scratches without rounding edges.
• 320 grit (optional): Pre-finish polish for clear coats or when you want a silky glide; for stain, stop at 180–220 to preserve color uptake.

Step-by-Step Leveling Workflow

1. Diagnose the wobble. Place the chair on your flattest surface (bench top, granite slab, or a verified flat board). Rock the chair gently to locate the short leg(s). Use a stack of playing cards under the short leg until the chair sits dead stable; count the cards—this is your height difference. Mark each leg A, B, C, D with tape; circle the high legs with a marker.
2. Build a flatness jig. Fix a sheet of abrasive to your reference plate. For quick swaps, lay blue tape on the plate and the paper’s back, then use a few drops of CA glue on the tape to bond—clean release, dead flat. Position a small right-angle block or fence near one edge so you can keep each leg perfectly vertical while sanding.
3. Level the high feet at 120 grit. With the chair upside down or the leg removed, press the high foot squarely to the plate and make short, controlled figure-eight strokes while keeping the leg tight to your right-angle block. Use pencil crosshatches on the footprint; when they disappear uniformly, you’re flat. Stock up on 120 Grit (25-pack) for this initial leveling—aggressive enough to drop the high legs efficiently without cutting deep gouges in the tiny footprint.
4. Re-check height often. Return the chair to the flat surface and remove the same number of cards from the stack under the short leg(s) as you’ve sanded down. Repeat until the chair sits stable without any shims. Use a raking light across each footprint; a sudden bright band means you’re tipped—correct before moving on.
5. Refine at 180 grit. Replace the sheet on your plate. Make lighter, with-grain strokes to erase 120 scratches and tighten the scratch field. Keep pressure directly over the footprint to avoid rounding edges. A shop-friendly bulk option like 180 Grit (50-pack) keeps cuts consistent across multiple chairs or a dining set.
6. Protect edges and maintain square. Let the right-angle block do the steering. If you see the pencil vanish faster on one side, your pressure is uneven—reset your grip, slow down, and take two corrective passes with the opposite bias to re-square.
7. Choose your finish path. If the feet will be stained, stop at 180–220 to keep color acceptance even. If you’re going clear or paint and want a premium glide across floors, make a light pre-finish pass at 320. Keep strokes with the wood’s primary grain direction (usually along the leg). For uniform, silky results—especially on hard maple—finish with 320 Grit (100-pack).
8. Seal end grain thoroughly. End grain drinks finish: dab on a wash coat (1–1.5# cut shellac) or thinned polyurethane to lock fibers. Scuff lightly after the first coat with 320, vacuum, then topcoat. For paint, use a stain-blocking primer to prevent tannin bleed-through.
9. Final sit test & pad choice. Place the chair on a verified flat floor and test for rock. Add felt pads or UHMW buttons sized to the footprint; pads disguise micro-variations and protect both the finish and flooring. If you add pads, press the chair straight down to seat them before judging stability.
10. Document your setup. Note which plate, paper, and number of passes gave you a perfect sit. A simple “grit ledger” taped inside your cabinet saves future time when you build the next set.

Special Cases & Adjustments

Tapered or splayed legs: The footprint may not be parallel to the leg’s long axis. Reference square to the footprint, not the leg. A small, sacrificial fence shimmed to the angle keeps the face square to the plate.

Turned feet: Draw a centerline on the footprint. Sand with light, rotary motions while watching the raking highlight. If the bright band travels, you’re off-axis—re-square against a V-block.

Compound chairs (Windsor, stick chairs): If the seat was leveled after assembly, match that datum. Shim the plate or build a simple sled that holds each leg at the original seat angle while you sand the footprint square to the floor plane.

Outdoor chairs: Stop at 180, then seal aggressively (epoxy or exterior poly). Avoid felt pads outdoors; use rubber feet or UHMW glides.

Paint-grade: After 180, spot-fill open pores with a thin paste, sand back at 220, and prime. Don’t over-polish to 320 before primer—some primers bond best to a slightly coarser tooth.

Pro Tips

• Label everything: Tape flags on legs (A–D) and mark high before you start. It kills 90% of back-and-forth.
• Time-on-grit discipline: If 120 scratches remain, 180 won’t magically fix them. Stay until the raking beam shows a uniform sheen.
• Use light, not force: Raking light tells you when you’re flat. Heavy pressure just rounds edges.
• Keep the plate clean: Vacuum often; a single grit chunk under the paper can emboss a crescent you won’t see until finish.
• Wet last, if at all: A brief mist at 320 can reduce dust and burnish loose fibers. Let dry fully before sealing.

Aftercare

• Use felt pads or UHMW glides sized to the footprint; replace when compressed or dirty.
• Avoid dragging across gritty floors—grit can cut fresh finish like sandpaper.
• Seasonal check: if a rock appears after a humidity swing, one or two 320 strokes on the high foot usually restores flat.
• Wipe spills quickly; end grain near floors is exposed to water from mopping and shoes.

FAQs

• Do I need a power sander? No. For small footprints, a flat plate with sheets gives better control and keeps edges crisp.
• What’s the best flat reference? A granite surface plate is ideal, but a thick glass shelf or melamine board verified with a straightedge works.
• Should I level before or after finish? Level bare wood first, then seal. If a wobble shows up after finishing, make only micro-corrections at 320 and reseal the end grain.
• My floor isn’t flat—now what? Level to a known flat reference and use pads. You’re aiming for a chair that’s self-consistent; pads will bridge minor floor waves.
• Why stop at 180 for stain? Finer grits can burnish end grain and reduce color uptake, causing light circles. Stop coarser, then seal for even tone.

Watch: End-Grain Leveling Basics

Closing

A wobble-free chair is about discipline, not luck: flat reference, square posture, and a simple 120 → 180 (→ 320 if needed) sequence. Map with pencil, read with raking light, and check height with cards as you go. With the right setup—and the right sheets—you’ll get rock-solid chairs that glide smoothly and wear evenly for years.
