Face-Frame Reveal Lips: Level the Step Without Softening the Opening

A small lip where a cabinet face-frame member meets an opening can come from excess, rack, a proud stile or a misplaced part. Sanding before measuring may soften the entire opening while leaving the assembly error untouched. The repair should begin by deciding which member is wrong and whether material removal is allowed.

Measure the reveal before naming the high side

Remove the door or drawer only if it can be returned to its alignment. Check the cabinet for square and support it as it will sit in service. A box twisted on an uneven floor can produce a reveal problem that disappears when the cabinet is leveled.

Use a short straightedge across the joint and feeler gauges or paper shims to estimate the step. Mark the high member and record the measurement at the top, middle and bottom. Compare the opening width and hinge or slide clearances. If correcting the lip would make the opening too large or thin a structural member below specification, adjust the assembly instead.

Look for veneer, edge banding, fasteners and joinery close to the surface. A face frame with a thin decorative skin cannot be treated like solid stock.

Create a reference that cannot roll into the opening

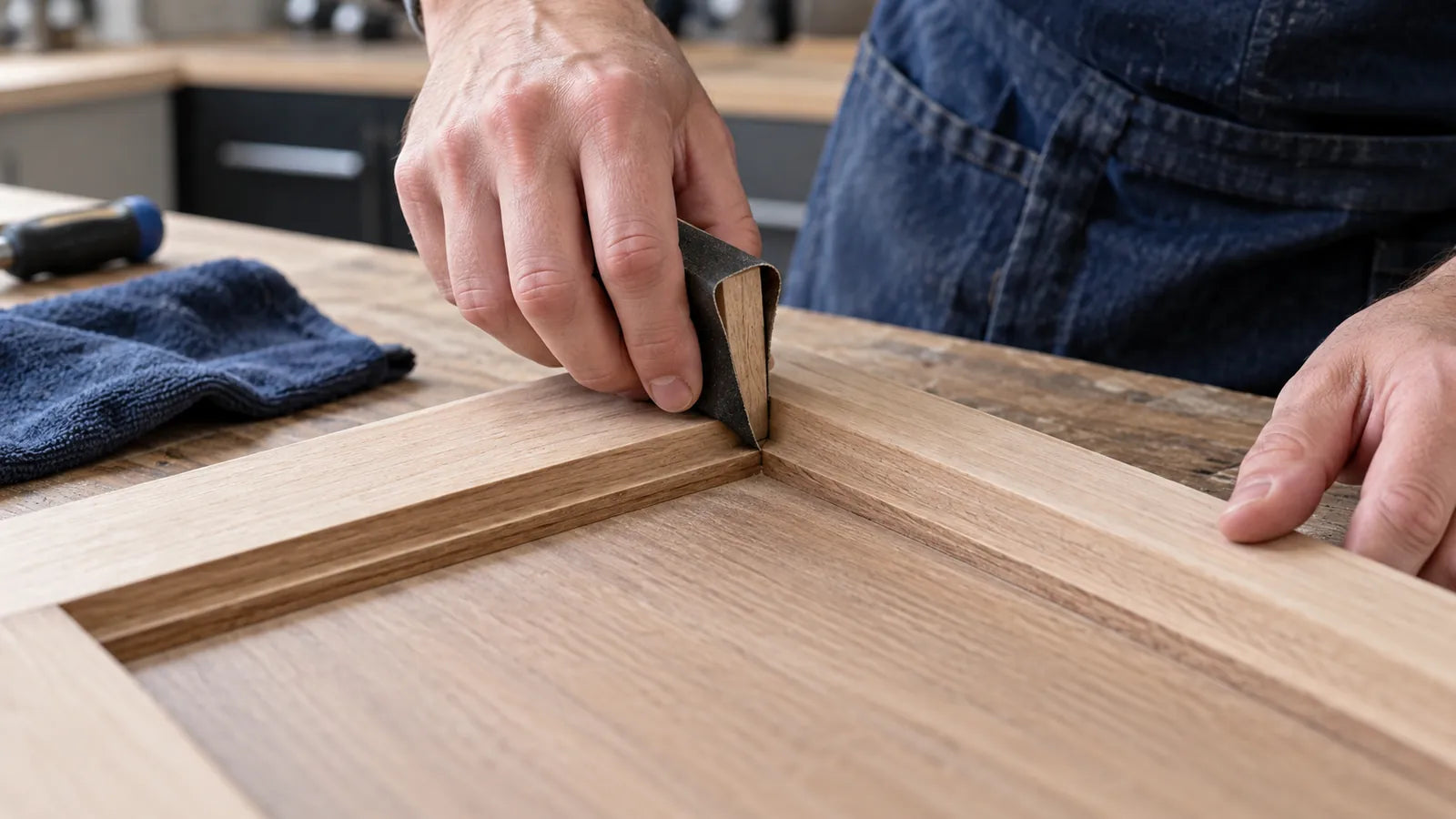

A fingertip-backed sheet follows both the high and low member, rounding the transition rather than leveling it. Use a narrow hard block whose sole rests on the high face and stops at the corner. Ease only the block's nonworking edges so they do not score the low surface.

Color the high strip with a light pencil witness line. Protect the low member with a thin rigid shim or tape only if its adhesive is safe for the surface. The protection is a warning boundary, not a substitute for controlling the block.

When the finish schedule permits 220-grit final refinement, these 220-grit sheets can be trimmed to the support. If the lip requires substantial stock removal, use a plane, chisel or other controlled woodworking method appropriate to the grain and joinery before the final sanding stage.

Work to a measured endpoint

Make short strokes along the high member, keeping the block fully supported. After three or four passes, remove dust and read the witness line. It should disappear first at the highest contact, then broaden gradually. If the low member's protection is marked, the block is rolling or too wide.

Recheck the step with the same straightedge and shim. Do not judge only by touch; a rounded edge can feel smooth while producing a visible dark reveal. Stop when the specified tolerance is met and the opening remains straight.

Blend scratches without widening the repair

Once the step is corrected, refine only the worked strip through the grades required by the intended coating. Extend each finer pass slightly beyond the previous scratch field, but keep it off crisp arrises and hinge seats. Vacuum and inspect in raking light between grades.

On paint-grade work, do not use filler to disguise a still-proud member; the ridge will telegraph when side light crosses the opening. On clear work, test the full stain and finish schedule on matching scrap because end grain at the joint may darken differently.

Blend the correction into the finishing schedule

After the measured lip is removed, extend the final supported pass only far enough to make the scratch field consistent. Do not fan a fingertip across the low member. Vacuum the inside corner and inspect for a narrow untouched glossy line that could affect the finish.

Apply the intended stain, primer or clear finish to an offcut or hidden matching joint first. End grain exposed at a rail end can darken differently from long grain; that color shift is not proof that the joint remains high. If appearance matters, adjust the approved finishing schedule rather than sanding the darker end grain lower.

For paint, prime the full feathered boundary and inspect it in side light. For clear finish, wet the sample only with the planned coating. Water or solvent used solely as a preview may raise grain or alter absorption and make the final result less predictable.

Reassemble and inspect the entire opening

Reinstall the door or drawer and restore the cabinet to its service position. Measure the reveal again with the hardware loaded. Sight from the normal standing distance and move a light along the inside corner.

The repair passes when the component clears through its full travel, the reveal stays straight, the corrected joint no longer casts a separate shadow and the arris remains crisp. Record the original and final measurements. A face-frame lip is successfully removed when the geometry improves—not merely when the corner feels soft enough to hide the step.

Keep the final shim and measurement with the cabinet notes so a later door adjustment is not mistaken for a new woodworking defect.
