Leveling Breadboard Ends: Sanding Without Crossgrain Scars

Breadboard ends are a timeless woodworking detail that keep tabletops flat while allowing seasonal wood movement. However, sanding them incorrectly can leave visible crossgrain scratches that ruin the final look. This guide explains how to sand breadboard ends level with the main panel while keeping the surface flawless.

Why Careful Sanding Matters

The joint between a tabletop and its breadboard end runs perpendicular to the grain, making it one of the easiest places for sanding mistakes to show. Aggressive sanding can also create low spots or highlight glue lines. A proper sequence ensures a seamless transition without scars.

Tools You’ll Need

• Random orbital sander with fine dust collection
• Sanding block for precise hand work
• Flush-cut saw or block plane (optional for leveling proud joints)
• Pencil for marking scratch orientation
• Tack cloth or vacuum

Recommended Grit Sequence

• 80 grit: For leveling slight height differences at the joint.
• 150 grit: Blending the surface while maintaining grain direction.
• 220–320 grit: Final smoothing before stain or topcoat.

Step-by-Step Process

1. Check joint alignment. If the breadboard end sits proud, lightly plane or scrape before sanding to reduce the risk of overcutting.

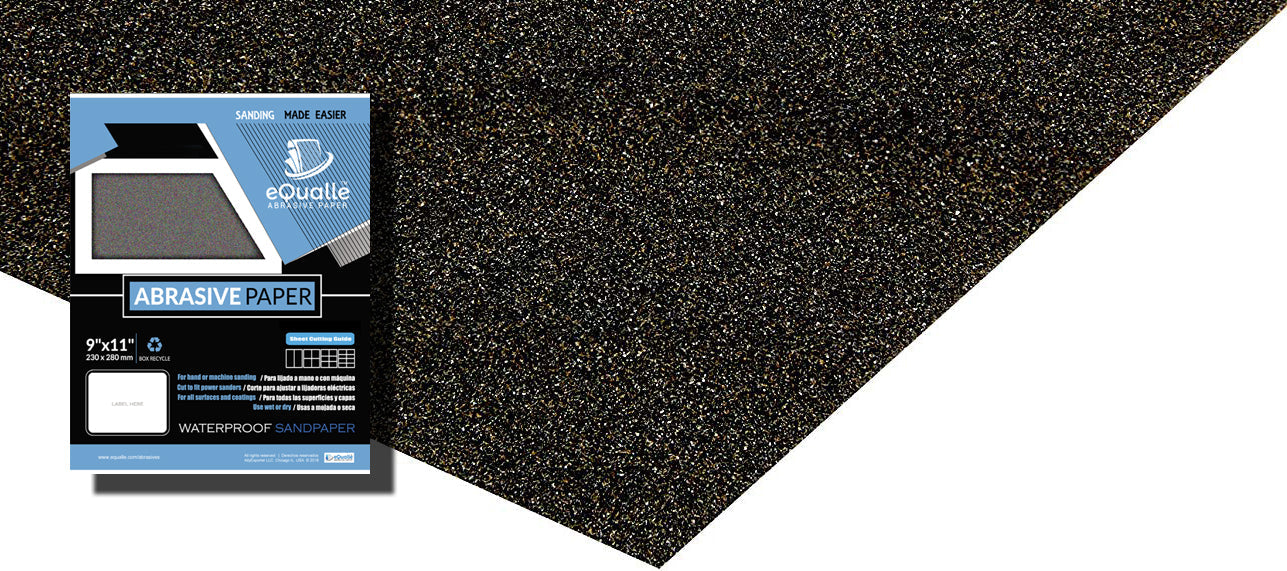

2. Level with coarse grit. Use 80 grit (25-pack) sheets on a sanding block. Work diagonally across the joint in short strokes, then feather with the grain.
3. Blend with medium grit. Switch to 150 grit (50-pack) to erase crossgrain marks while smoothing the joint transition.
4. Finish fine sanding. Move to 320 grit (100-pack) for an even, touch-ready surface before staining or sealing.
5. Check under raking light. Shine light across the surface to spot scratches that may only appear after finish is applied.
6. Remove dust. Vacuum thoroughly and wipe with tack cloth before applying any finish.

Special Cases

If the joint gap is wide or glue lines are visible, consider filling with color-matched filler before the final sanding passes. For painted projects, stopping at 220 grit is usually sufficient for primer adhesion.

Pro Tips

• Always sand with the grain on the main panel to hide scratch patterns.
• Use a hard sanding block across the joint to avoid creating dips.
• Mark each grit change with pencil lines to ensure full scratch removal before moving on.
• Keep your sander moving—pausing on end grain creates burn marks.

Aftercare

• Apply stain or finish within 24 hours of final sanding to avoid grain raising from humidity.
• Seal both top and underside of tabletops to balance moisture movement.
• Check the joint each season; slight shifting is normal with breadboard construction.

FAQs

• Can I just use a random orbital sander? Yes, but always finish by hand with the grain to remove swirl marks.
• What if scratches appear after staining? Re-sand lightly with 220 grit, then reapply stain in thin coats.
• Do I need to sand between finish coats? Yes, a light 320 grit pass helps smooth dust nibs and improve adhesion.

Watch & Learn

By using the right sanding sequence and technique, breadboard ends can blend seamlessly with tabletops, giving your furniture a refined, professional look without crossgrain scars.
