Check a Replacement Sanding Belt Before Running It
A replacement sanding belt should match the machine before it touches the work. Check its width and loop length, the direction marking and the condition of its backing and joint. Then use the machine's prescribed mounting and tracking procedure. A finer grit cannot correct a belt that rubs the frame or has a lifting seam.
Keep the tool disconnected while inspecting or changing the belt. Set aside a questionable belt where it cannot be mistaken for an approved spare.
Match the full belt specification
Read the required dimensions from the machine documentation and compare them with the package. Width alone is insufficient: two belts can look equally wide yet have different loop lengths. Do not force the tension mechanism to accommodate a near match.
Record the complete belt product identity, including its backing and grade, on the storage box. Klingspor's coated-abrasive reference explains that backing, grain and bond are separate parts of an abrasive's construction. A shared grit number does not establish that two belts suit the same machine or operation.
With the belt off the machine, examine both edges, the backing and the joint. Reject visible tears, loose joint material or separation. Do not repair a powered sanding belt with household tape or glue. A damaged new belt is a return or replacement question, not something to “wear in.”
Read the arrow before tensioning
Where a directional arrow is present, match it to the tool's specified direction. An unmarked belt needs the belt manufacturer's direction instructions; absence of a visible arrow is not enough to infer that every joint can run either way.
The Makita 9403 manual requires matching the belt-back arrow to the tool arrow. It also separates belt installation from tracking adjustment. Use the instructions for your own model, since controls and procedures differ.
After mounting and tensioning as directed, complete the model's tracking check before sanding. On machines with a running adjustment, use only the designated control and keep hands away from the moving belt. Stop if the belt rubs the frame, frays or will not remain correctly aligned. Disconnect again before examining the installation.
Repeated trouble with an intact, correctly specified belt calls for inspection or service of the machine. Do not keep sacrificing belts to find out how badly they will fray.
If the replacement fails the check
Pause the powered operation and obtain the correct belt. If only a small accessible area remains and hand sanding can meet the job's existing requirement, finish that area with a suitable block instead. Do not attempt the same amount of heavy stock removal merely because sheets are available.

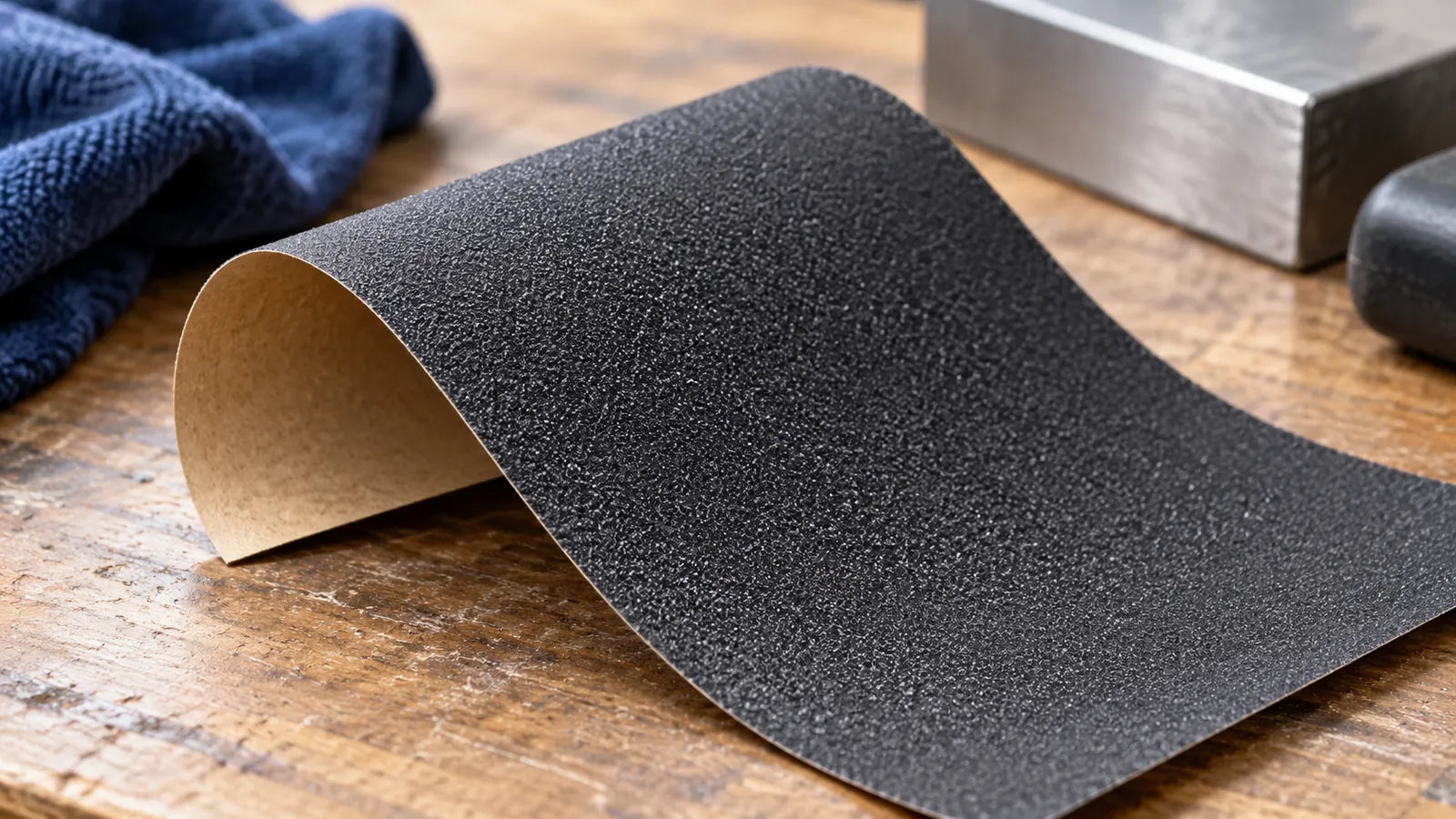

For hand work already specified at 120 grit, eQualle's 120-grit, 25-sheet pack supplies cut-to-fit pieces for a hand block. These full-size abrasive sheets are a separate hand-sanding consumable. They cannot be joined into a replacement belt.
Keep the rejected belt's package and identifying details until the supplier resolves the replacement. That makes it possible to distinguish an ordering error, a damaged belt and a machine problem without relying on memory.
