Sanding Picture-Frame Wainscot: Panel vs Stile/Rail Sequence

Picture-frame wainscot adds architectural character with flat inset panels surrounded by stiles and rails. The challenge? Sanding all these parts so the profiles stay crisp, the flats remain even, and the joints don’t telegraph through the finish. The key is tackling panels first, then working outwards to stiles and rails, using the right grit sequence and tools for each surface.

Why sanding sequence matters

Panels and frames expand/contract differently. If you sand rails and stiles first, panel edges may still stand proud or shrink back, leaving shadows. By sanding panels first, then feathering stiles/rails to match, you maintain a uniform plane and avoid visible witness lines in your topcoat.

Tools for the job

• Rigid sanding block (for panel flats)
• Orbital sander with dust extraction (keep off profiles)
• Profile foam pads or sticks (for molding edges)
• Sharp pencils/knife for witness lines
• Vacuum with brush attachment
• Microfiber cloths and tack cloths

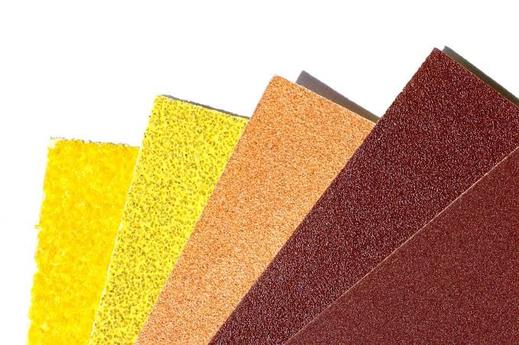

Recommended grit sequence

• 120 grit: Initial flattening of panel faces and knocking down mill marks.
• 180 grit: Refining scratches and truing transitions between panel and frame.
• 320 grit: Final pre-finish smoothness, blending flats and profiles seamlessly.

Step-by-step sanding sequence

1. Sand the panel face first. Start with a hard block wrapped in 120 Grit (25-pack). Work diagonally across the grain to level, then finish with long strokes with the grain. Keep pressure even to avoid dish-outs.
2. Refine panel to 180 grit. Switch to 180 Grit (50-pack) and sand with the grain, blending any scratch pattern left from the coarse cut. Inspect under raking light for lingering cross-lines.
3. Move to the stile and rail flats. Block-sand flush to the panel edge. Keep the block flat across the joint so you don’t undercut the frame. Use controlled strokes and check that pencil witness marks vanish evenly.
4. Feather transitions at panel edges. Wrap a thin cork-backed block or flexible pad with 180 grit and blend across the seam so panel and frame meet in one continuous plane.
5. Sand profiles and edges. Use foam-backed paper or sticks with light pressure. Follow curves and keep motion with the profile. Avoid aggressive grits that change shapes.
6. Final finish with 320 grit. Use 320 Grit (100-pack) on block and pads. Give light, uniform passes across all faces and profiles for a consistent sheen before finishing.
7. Vacuum and tack thoroughly. Dust lodges in corners; remove completely before applying stain, sealer, or paint.

Special cases

• Paint-grade wainscot: Stop at 180 before primer, then sand primer coats to 320 before enamel.
• Stained finishes: Progress fully to 320 for clarity; uneven scratch depth shows more on stained woods.
• Old installations: If panels are slightly loose, avoid power sanding—stick to blocks and hand work to prevent chatter at edges.

Pro tips

• Always work from panel center outwards; this avoids rolled panel edges.
• Use raking light to check for dish-outs or high ridges at seams.
• Keep blocks hard for flats, soft for curves—never mix.
• Replace paper as soon as it clogs—dull sheets polish instead of cutting, risking uneven sheen.
• Sand all frames in the same sequence to keep reveals consistent across a room.

Aftercare

• Apply sealer within 24 hours of sanding to avoid raised grain from humidity.
• Inspect seams after first coat; touch up with 320 grit to flatten any lifted fibers.
• For painted finishes, lightly sand between coats with 320 to maintain crisp edges.

FAQs

• Can I power sand panels? Yes, with an orbital sander—but only on the flat panel face. Keep it off the stiles and rails.
• What if I sand through primer at edges? Spot-prime and re-sand lightly with 320 before topcoat.
• How do I keep grooves clean? Use a shop vac brush and follow with compressed air if needed before tacking.
• Is 400 grit better for stained finishes? Not necessary; 320 gives enough smoothness without over-polishing.

Video: sanding wainscot sequence

Bottom line: For picture-frame wainscot, the order of operations makes the difference: panel first, then stiles and rails, with a 120 → 180 → 320 grit progression. Control your blocks and profiles carefully, and you’ll achieve a flawless, uniform finish across the entire wall.
