How to Fix Visible Grit Scratches
Visible grit scratches are usually evidence from an earlier step. A few deep lines in an otherwise fine surface may come from a skipped grade, loose abrasive grain, dirty backing, a torn sheet, or a sander that was tilted or stopped in contact. The efficient fix is to trace that “scratch genealogy,” correct the cause, and rebuild one verified pattern at a time.
Read the pattern like a record

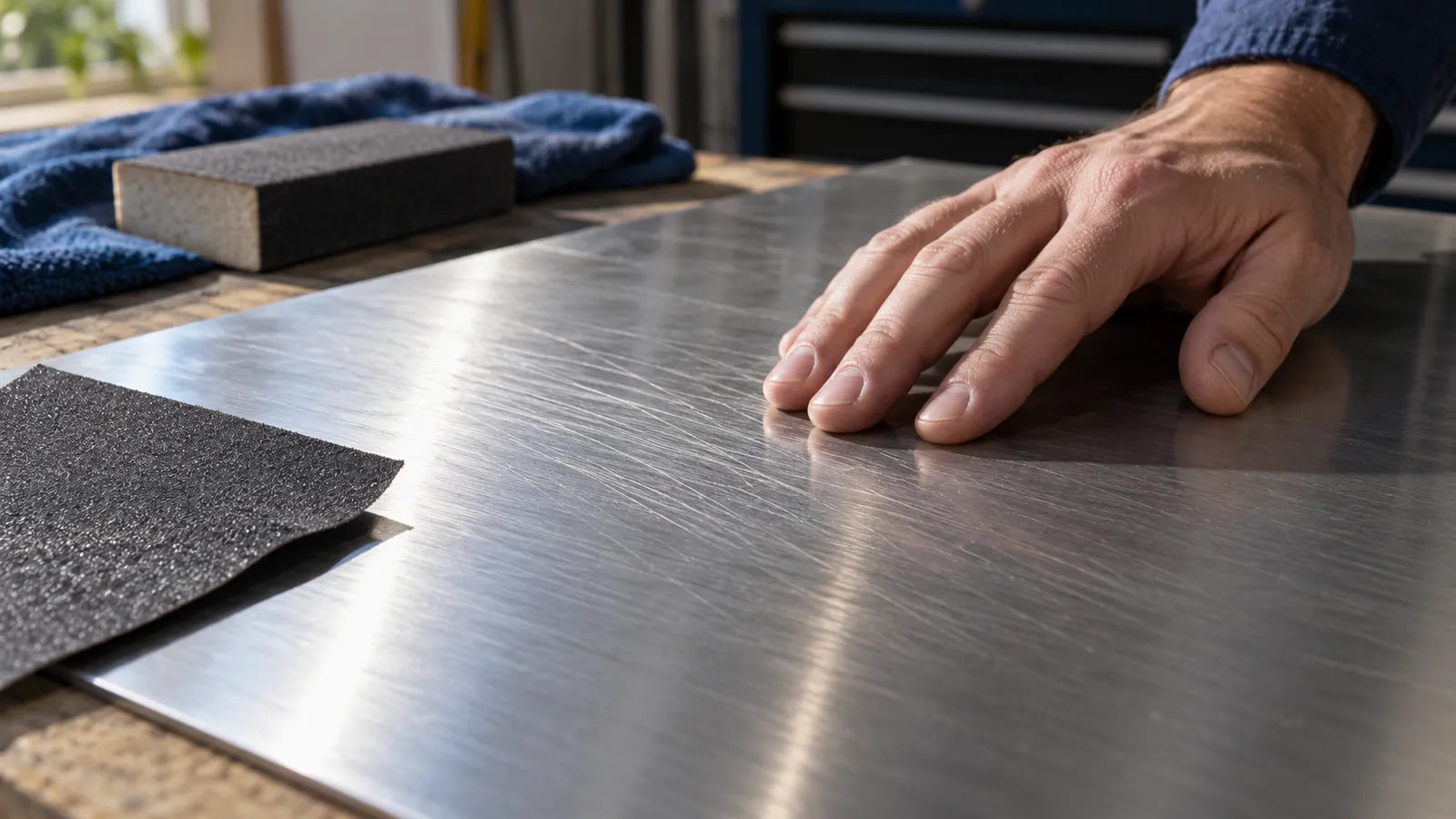

Clean the surface and the inspection area using a method compatible with the material. Let it dry. Hold a strong light close to the surface and move it across the work; also rotate the part if practical. Do not decide by touch alone.
- Pattern under raking light
- Even parallel lines, all similar in size
- What to investigate
- The expected current hand-sanding pattern may simply need the next approved step.
- Pattern under raking light
- A few longer, deeper lines crossing a finer field
- What to investigate
- A previous grit remains, or debris was dragged through the surface.
- Pattern under raking light
- Repeating arcs or curls
- What to investigate
- Power-sander technique, pad condition, extraction, or contamination may be involved.
- Pattern under raking light
- One line repeated at equal spacing
- What to investigate
- A fixed particle, torn abrasive, damaged block, or workpiece contact point may be scoring each pass.
- Pattern under raking light
- Scratches concentrated at ends or edges
- What to investigate
- Pressure or tool tilt changed near the boundary.
- Pattern under raking light
- Marks visible only after coating
- What to investigate
- The liquid increased contrast; determine whether the defect is in the substrate or film.
Compare uncertain marks with deliberately made, labeled samples in a scratch-recognition practice library. A comparison does not measure depth, but it can help distinguish a uniform current pattern from one rogue line that does not belong.
Remove the source before removing the line
Set the used abrasive aside. Vacuum or otherwise clean the work, backing pad or block, bench, and nearby ledges. Inspect the sheet for a torn edge, clogged lump, or embedded particle. For a machine, disconnect power as its manual directs before inspecting the pad, fastener, holes, or dust path. Replace damaged or contaminated consumables.
Also inspect technique. A hand block should remain supported across a flat face. A random-orbit sander should be started, moved, and stopped according to its manual; heavy pressure or tipping the pad can deepen the cut. If the workpiece flexes, improve support before resuming.
Do not reuse a suspect sheet to “see if it happens again” on the project. If diagnosis is unclear, make a pass on compatible scrap and inspect the result. The project is not a test coupon.
Make the smallest useful backstep
Start on a small, representative area with the finest appropriate grit that can remove the deepest line efficiently. Make several light, controlled passes, clean, and inspect. If the rogue scratch fades into a uniform pattern, stay at that grade until it is gone. If it does not change, step back once rather than spending a long time polishing the surrounding surface.
Do not assume 120 grit is always the cure for a scratch or that 600 is always the finish. On confirmed compatible work, the brief's 120, 220, 400, and 600 progression can provide reference points, but the material, remaining thickness, and coating instructions set the actual start and endpoint.
For a later refinement stage specifically approved for 600 grit, 600-grit waterproof sheets in a 50-pack help keep fresh sheets available during repeat production work. A second-channel option for the same 600-grit pack is also listed. The pack is not a substitute for diagnosis; review the 600-grit collection only when that grade fits the system.
Prove each replacement pattern
After the offending line disappears, clean before changing grit. Make the next pattern in a distinguishable direction where the material allows, then inspect until every earlier line is replaced. On bare wood, finish with the local grain even if an earlier diagnostic pass crossed it. On decorative brushed metal, the specified final direction may be part of the appearance. On a coated surface, stay inside the product maker's sanding and recoat limits.
The combined workflow in checking sanding progress with raking light separates coverage from scratch inspection. Use its light-pencil technique only on surfaces where graphite will not lodge in pores or contaminate a finish.
Keep a simple note of material, grit, abrasive condition, backing, tool setting, pass direction, and inspection result. If the same marks return, the record can reveal whether they appear only with one sheet, one machine setup, one operator motion, or one cleaning method.
Stop before a scratch becomes a shape defect
A visible line is not permission to sand indefinitely. Stop if a veneer changes color, a coating boundary appears, a metal edge thins, a flat reflection develops a hollow, or a plastic surface heats or smears. Those signs require a repair decision rather than a coarser grit.
You are finished when raking light from more than one direction shows a consistent pattern appropriate for the next step, not merely when the surface feels smooth. Clean tools, a minimal backstep, and a verified replacement pattern fix the defect while preserving as much of the original surface as possible.
