Sander Dust Extraction Fades Mid-Job: Find the Restriction

An extractor that collected well at the start of a job but now leaves dust behind has given you a useful clue: something changed during use. Before buying a larger vacuum or changing grit, note whether capture faded gradually, failed at one edge of the pad, or changed when you moved the hose.

Stop sanding while you investigate. Continuing through a dust cloud does not make the diagnosis clearer.

A steady decline points toward accumulated restriction

If the same tool and abrasive worked normally, then collection weakened across the whole pad, inspect the collection side early. Shut down and isolate equipment as its servicing instructions require.

Check the bag or collection container, the bag's seating, the accessible inlet, and the filter condition. Use the correct consumables for the material and machine. A filter can need attention even when the container is not full, so “there is room in the tank” does not finish the check.

Where automatic filter cleaning is fitted, confirm that it is operating in the correct mode. Mirka's DEXOS filter-cleaning troubleshooting directs users with persistent reduced suction to inspect, clean, or replace the filter. Its activation procedure belongs to that machine; do not copy it to another extractor.

Do not run a sanding trial with the filter removed. Nor should removing a specified dust bag become the fix for a recurring restriction. Mirka, for example, recommends dust bags for its extractors. If a correctly serviced system soon loses collection again, the dust load, consumable choice, or equipment application needs further review.

Dust escaping locally points back to the sanding face

A buildup concentrated around part of the pad deserves a source-side inspection. With the sander disconnected, remove the abrasive and look for blocked holes, compacted debris, a shifted disc, or a damaged pad.

Inspect every layer. An interface pad or protector can obstruct a passage even when the visible disc looks correctly positioned. Also check the tool's accessible dust outlet. Clean only by the permitted method; do not push debris farther into the machine or blow collected dust around the room.

Festool's sanding-pad overview describes the relationship between hole patterns and air passages. The important point is the complete route from abrasive face to outlet—not the hole count by itself.

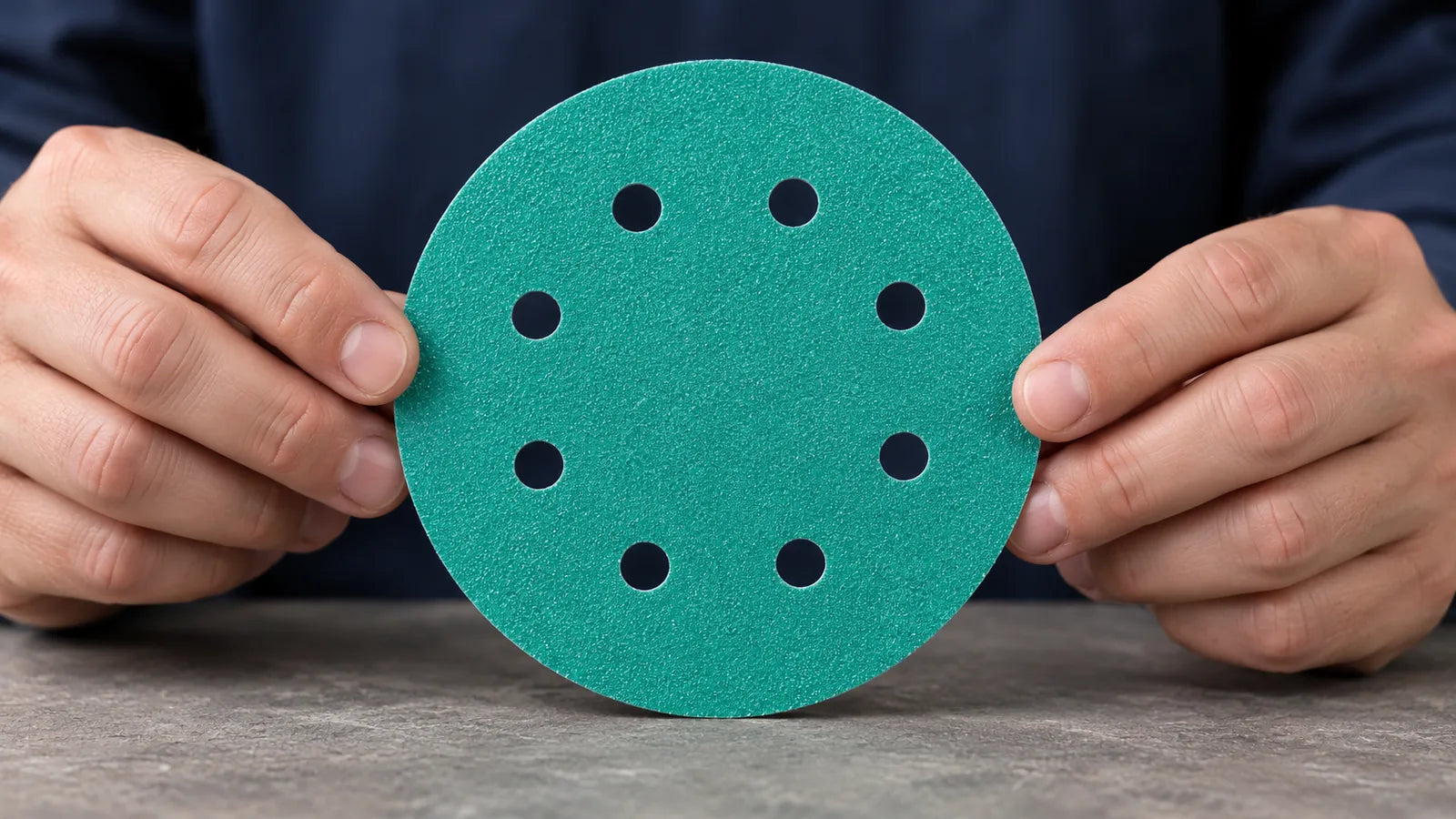

For equipment whose approved specification matches it, the eQualle 5-inch, eight-hole assorted disc 50-pack supplies replacement abrasives in 80, 120, 180, 220, and 320 grit. Select the same appropriate grade for a comparison. A fresh matching disc can help separate a loaded abrasive from a collection fault; a different grit changes how much and what kind of debris is produced.

If a replacement immediately gums up while collection otherwise appears unchanged, inspect the material too. Damp filler, uncured coating, or resinous residue can load abrasive without a vacuum failure. Do not keep replacing discs to compensate for a surface that is not ready.

A fault that follows movement often lives in the hose route

Look at the hose in the position where collection deteriorated, not only when it lies straight on the floor. A bend under the bench, a section trapped against a leg, or a loose tool connector can become a restriction during normal movement.

With the equipment safely stopped, reproduce the route and inspect the fittings. Look for splits, damaged cuffs, a connector pulled partly free, and controls that were unintentionally moved. Replace damaged parts through the approved accessory system; do not carve an adapter or disable an airflow alarm.

A strong-sounding motor is not evidence that dust is reaching the container. Air may be entering through a leak instead of doing useful work at the abrasive.

Verify the correction without changing the whole setup

After servicing, use a short, controlled check on suitable known material with the required dust controls in place. Keep the abrasive specification, tool setting, and contact area consistent. Observe the location where dust previously escaped and whether the normal hose movement changes it.

Correcting one confirmed fault at a time makes the result interpretable. If the problem persists or an alarm remains, stop and use the manufacturer's service process. Electrical or internal motor faults are not a reason to dismantle a powered machine at the bench.

Finish by removing settled residue with an appropriate collection method. Record the actual fault found—such as a loaded filter or blocked pad passage—rather than writing only “vacuum cleaned.” That gives the next mid-job failure a useful starting point. Improved visible capture is a maintenance result, not proof that airborne dust exposure is safe.
