Smoothing Edge-Glued Table Tops: Diagonal Pre-Sand and Long-Board Finish

Edge-glued tabletops—where boards are joined side by side—need careful sanding to blend seams without creating dips. A rushed approach can lead to visible glue lines or uneven reflections under finish. This guide explains how to sand glued-up panels perfectly flat using a diagonal pre-sand and long-board finishing method.

Why Sanding Matters for Glued Panels

Even precise clamps and jointers can leave subtle height differences at seams. Sanding evens those joints and prepares the grain for finishing. The key is to maintain flatness across the entire panel instead of chasing each seam individually—otherwise, you’ll create wavy low spots that only appear once the finish is applied.

Recommended Tools

• Long sanding board (18–24 inches) or leveling beam.
• Random-orbit sander (optional) with flat pad.
• Rigid sanding block for edges.
• Cloth and tack rag for dust cleanup.
• Straightedge or light bar for checking flatness.

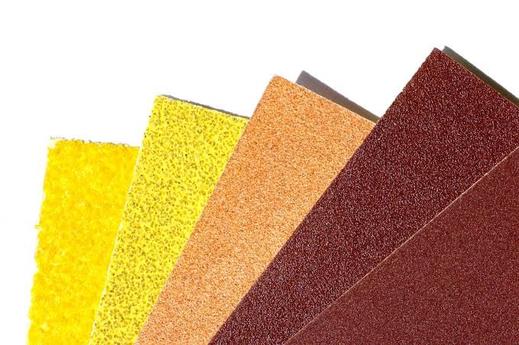

Ideal Grit Sequence

• 100 grit – Initial leveling of glue joints.
• 150 grit – Smoothing the entire surface and blending seams.
• 220 grit – Final surface refinement before finish.

Step-by-Step: Achieving a Flat, Seamless Surface

1. Scrape dried glue first. Use a sharp scraper to remove excess glue along seams before sanding. This prevents clogging your sandpaper prematurely.
2. Diagonal leveling pass. Start with 100 Grit (25-pack) paper wrapped around a long board. Sand diagonally across the grain—first one direction, then the other—to knock down high seams evenly.
3. Straight-grain refinement. Switch to 150 Grit (50-pack) and sand along the grain. This step removes diagonal scratch marks and evens the overall texture.
4. Final finish sanding. Complete the process with 220 Grit (100-pack) wet/dry sheets using long, continuous strokes. Maintain full contact across the width of the board to keep it flat.
5. Check flatness. Use a straightedge and side lighting to inspect the surface. No light should pass under the straightedge along seams—if it does, sand lightly across the entire width again.
6. Clean thoroughly. Vacuum and wipe with a tack cloth before applying sealer or finish.

Special Cases

For wide panels, alternate your sanding direction slightly with each grit to avoid patterning. If using a belt sander, fit a platen under the belt to maintain even pressure. Avoid power sanding with coarse grits—it can create uneven valleys faster than it removes seams.

Pro Tips

• Sand diagonally only for leveling—always finish along the grain.
• Glue lines that appear white after sanding indicate excess glue—apply a light damp wipe to raise color before finishing.
• For dark stains, finish sanding to 320 grit to reduce open grain reflection.
• Use fresh sheets frequently—dull grit tends to burnish instead of cutting, hiding glue lines until finish is applied.
• Clamp your sanding board with two hands and overlap each stroke by one-third for evenness.

Aftercare

• Seal the tabletop immediately after sanding to prevent moisture imbalance.
• Sand lightly between finish coats with 320 grit to maintain smoothness.
• Wipe with a lint-free cloth before every coat to remove airborne dust.
• Maintain even humidity during finishing to prevent new joint movement.

FAQs

• Can I start with 80 grit? Only if joints are severely uneven. Otherwise, 100 grit removes less material and preserves flatness.
• How do I avoid rounding edges? Stop sanding 1 inch before each edge, then finish edges by hand with a sanding block.
• Why do seams show after staining? They often contain glue residue—scrape or wipe joints before sanding to prevent that.

Watch & Learn

Edge-glued tabletops reward patience and precision. With a diagonal-to-long-board grit sequence (100 → 150 → 220), you’ll achieve a perfectly level surface with invisible seams and a professional finish every time.
