How to Smooth 3D Prints for a Professional Finish (150–2000 Grit Workflow)

3D printed parts often have visible layer lines and minor imperfections. Sanding is the most effective way to create a clean, professional surface ready for painting or coating. This guide covers how to sand PLA, ABS, and resin 3D prints using a safe, stepwise grit sequence for smooth, uniform results.

Why Sanding Improves 3D Prints

Fused deposition (FDM) prints leave ridges from each layer. Sanding removes these lines and evens the texture without changing the part’s shape. For resin prints, fine sanding smooths small support marks and eliminates haze from the curing process. The right grit progression ensures a perfect finish before primer or paint.

Recommended Tools

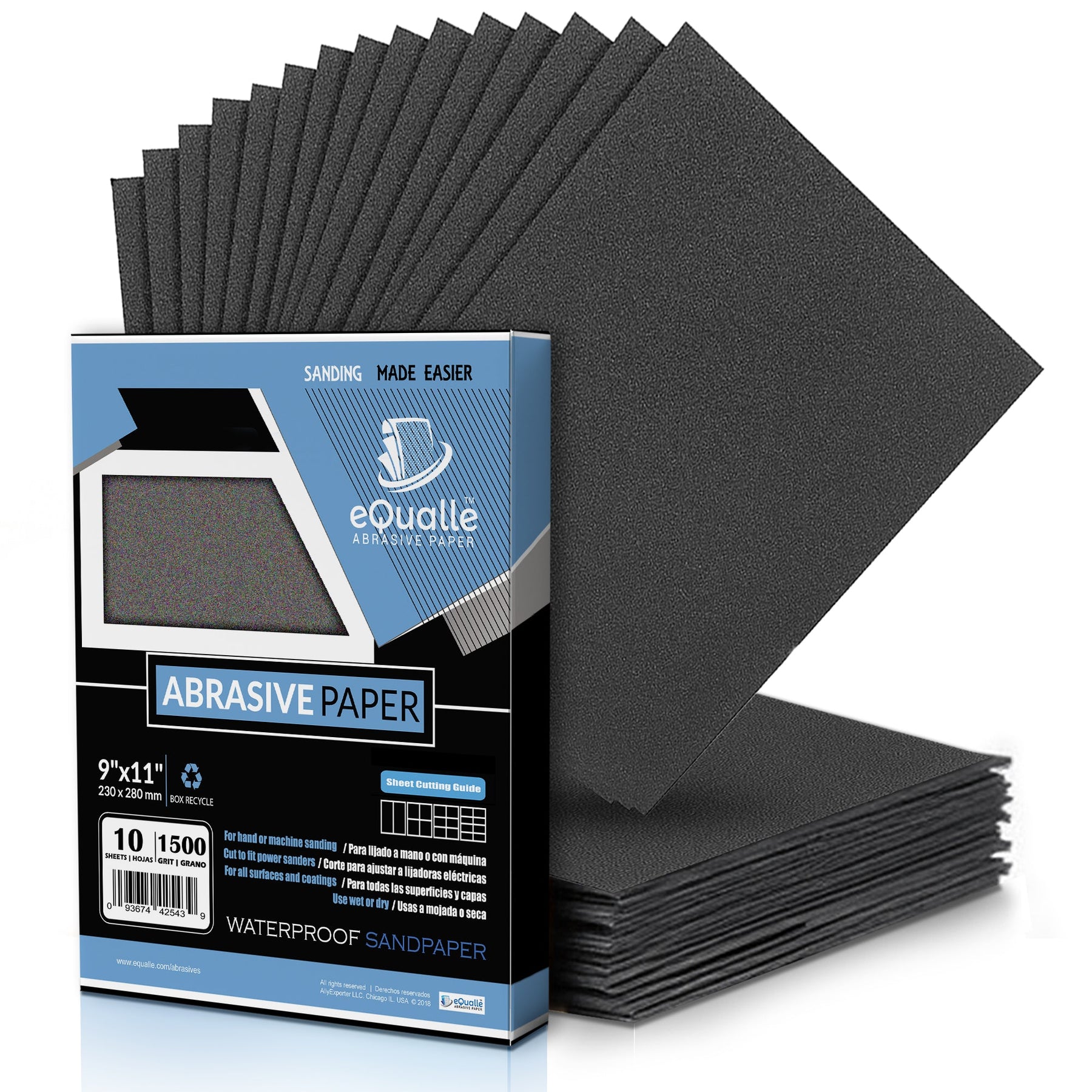

• Wet/dry sandpaper (150–2000 grit).
• Flexible foam sanding block or small files for tight spaces.
• Spray bottle with water (for wet sanding).
• Microfiber cloths and tack rag.
• Primer, paint, or polishing compound (depending on finish).

Ideal Grit Sequence

• 150 grit – Remove print lines and large imperfections.
• 400 grit – Refine surface and remove coarse scratches.
• 800 grit – Smooth texture for primer or paint.
• 2000 grit – Final polishing for gloss or resin clarity.

Step-by-Step: Smoothing 3D Prints

1. Prepare the part. Remove supports and wash thoroughly. For resin prints, cure completely before sanding.
2. Initial shaping. Start with 150 Grit (25-pack) sandpaper to level layer lines. Use circular motions with light pressure, and keep sanding even across the surface.
3. Mid-level refinement. Move to 400 Grit (50-pack) wet/dry paper to smooth out coarse scratches and improve uniformity.
4. Fine smoothing. Continue with 800 Grit (100-pack) for a satin finish. Wet-sand to avoid overheating or melting PLA.
5. Optional polishing. Finish with 2000 grit for a glossy surface or before applying clear coat. Wet-sanding at this stage removes any remaining fine marks.
6. Clean and coat. Wipe the part dry, then apply primer or paint in thin, even layers. Lightly sand with 800–1000 grit between coats for best adhesion and smoothness.

Special Cases

For resin prints, start at 400 grit to avoid cutting through the thin cured surface. ABS prints respond well to vapor smoothing, but you can still sand manually for better control. For PLA, avoid dry sanding above 400 grit—it softens under friction heat. Always test pressure and speed on a small section first.

Pro Tips

• Sand in alternating directions between grits to ensure even removal.
• Rinse sandpaper frequently—plastic clogs grit easily.
• Use soft blocks for curved prints to maintain contours.
• Apply filler primer after 400 grit for paint-ready smoothness.
• For clear resin prints, finish with 2000 grit and polish for glass-like transparency.

Aftercare

• Store sanded parts away from sunlight; UV can discolor clear materials.
• For painted prints, let the final coat cure 48 hours before handling.
• Polish occasionally with a microfiber cloth to maintain shine.
• Re-sand lightly before re-coating or repainting.

FAQs

• Can I use a Dremel for sanding 3D prints? Yes, but keep speed low—high RPMs can melt plastic.
• Why does my part look dull after sanding? You may have stopped before 800 grit or skipped wet sanding; finish finer for shine.
• Is vapor smoothing better? It’s faster but riskier; sanding provides safer, more controlled results with consistent surface quality.

Watch & Learn

By carefully sanding from 150 to 2000 grit, you can turn rough 3D prints into professional-quality parts—smooth, paint-ready, and polished to perfection.
