Sanding Window Stops and Parting Beads Without Splintering

Window stops and parting beads are small but essential trim elements that hold sashes in place and complete the frame’s detail. Their delicate size makes sanding a challenge—too much pressure can cause splintering or change the profile shape. This guide walks you through how to sand these narrow moldings smoothly while preserving crisp edges and preventing tear-out.

Why Sanding Matters for Window Stops

Stops and beads often arrive with mill marks or slight paint buildup from previous coatings. Sanding removes these imperfections, promotes better paint adhesion, and keeps the wood smooth enough for a professional finish. The trick is balancing even surface preparation with minimal material removal to retain precise fit inside the frame.

Recommended Tools

• 9×11-inch silicon carbide wet/dry sandpaper sheets.
• Foam sanding pad or folded block for gentle edge support.
• Fine file or sanding stick for grooves.
• Vacuum with soft nozzle and tack cloth.
• Masking tape to protect glass and frame corners.

Grit Sequence

• 120 grit: Flattening surface defects and paint ridges.
• 180 grit: Smoothing and blending transitions.
• 320 grit: Final finish pass before primer or paint.

Step-by-Step: Sanding Stops and Parting Beads

1. Prep and inspect. Remove the stops if possible for safer handling. Wipe off dust and note any rough mill lines or chipped edges.
2. Level surface imperfections. Begin with 120 Grit (25-pack) to remove old finish or filler spots. Support the piece fully to prevent flexing while sanding.
3. Refine edges. Use 180 Grit (50-pack) to smooth tool marks and prepare the profile for paint. Work along the grain and avoid sanding across corners.
4. Final polishing. Finish with 320 Grit (100-pack) for a perfectly smooth surface. Use folded paper or a foam pad to gently follow curves and beads.
5. Dust removal. Vacuum thoroughly, then wipe with a tack cloth before finishing.
6. Prime and paint. Apply thin coats to avoid drips on small moldings. Lightly sand between coats with 320 grit for a flawless finish.

Special Cases

If the stops are painted and you wish to preserve the current color, scuff-sand with 320 grit only. This lightly dulls the sheen and ensures proper paint adhesion without stripping the underlying layers.

Pro Tips

• Use a sanding sponge instead of bare fingers—it keeps pressure even along fragile edges.
• Replace paper as soon as it clogs; dull grit causes chatter marks and tear-out.
• Always sand with the grain, even on short moldings, to maintain a uniform appearance under finish.
• Inspect in angled light; shiny spots indicate un-sanded burnish areas that may reject paint.

Aftercare

• Keep paint layers thin—heavy coats can soften crisp lines.
• Clean stops gently with mild soap and a soft cloth to avoid chipping.
• Touch up scuffs periodically with fine 320-grit sanding and fresh paint.

FAQs

• Can I use power sanders? Not recommended—manual sanding gives far more control on delicate pieces.
• What if the wood splinters? Apply thin wood glue, let dry, and re-sand lightly with 320 grit.
• Is sanding necessary before repainting? Yes, even light scuffing helps new paint adhere and eliminates texture differences.

Watch & Learn

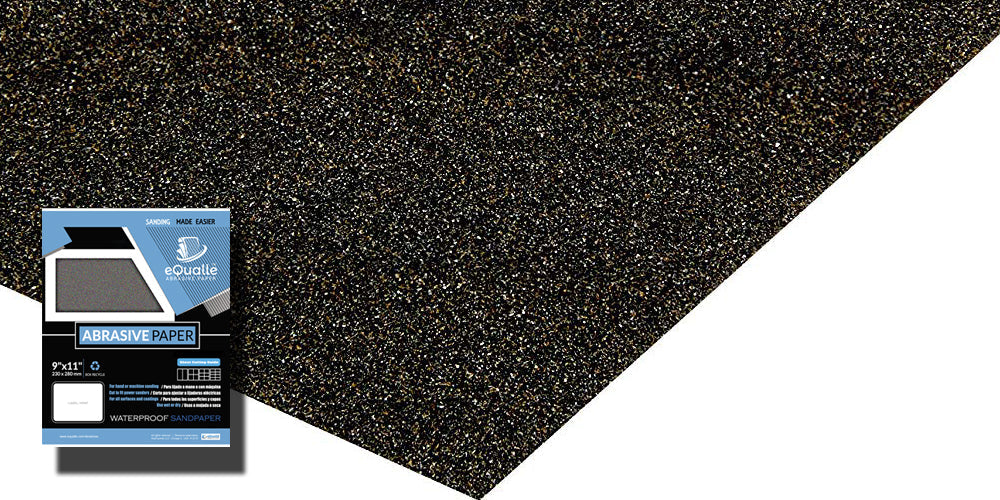

To achieve professional trim finishes, use eQualle’s fine sanding collection of silicon carbide sheets. Their flexibility and cutting precision are ideal for small moldings, window parts, and detailed joinery.

Conclusion: Sanding window stops and parting beads requires finesse. Following the 120–180–320 grit sequence keeps these fine pieces smooth, splinter-free, and ready for a perfect coat of paint or stain—enhancing every window frame’s final appearance.
