Brushed Finish on Galvanized Steel (180–400 Grit)

Galvanized steel already has a protective zinc coating, but the surface can look uneven, blotchy, or too shiny for certain builds. A brushed finish gives it a cleaner, more consistent appearance—while still keeping most of the zinc layer intact. The trick is using a controlled grit progression and light pressure so you create a uniform grain without sanding through the coating.

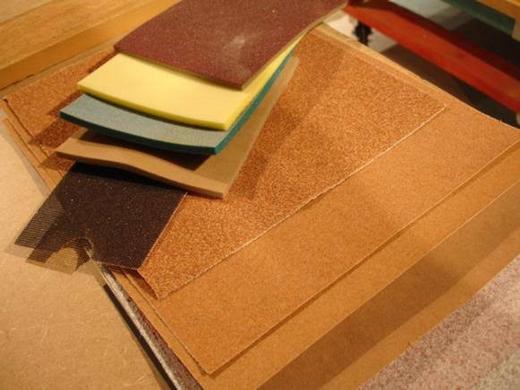

This guide shows a practical 180–400 progression using wet/dry Silicon Carbide sheets to build a linear grain you can replicate panel to panel.

Why Sanding Matters

Brushing is mainly about scratch pattern control. Galvanized surfaces vary in hardness and texture, so random sanding creates patchy reflection. A consistent grain direction makes the surface look intentional and helps hide minor scuffs. It also slightly keys the surface if you plan to apply a clear coat or paint later—without going so coarse that deep scratches dominate the look.

Tools

• Eye protection and a respirator (avoid breathing zinc/metal dust)
• Gloves
• Sanding block (important for even grain on sheet metal)
• Degreaser + microfiber towels
• Masking tape for edges and protected areas
• Optional: water spray bottle for light wet sanding at finer grits

Recommended Grit Sequence

• 180 grit – Establishes the initial grain and levels minor texture.
• 220 grit – Refines the grain and reduces the coarseness of the scratch pattern.
• 320 grit – Creates a more uniform brushed look with finer, tighter lines.
• 400 grit – Final refinement for a smoother satin-brushed appearance.

Step-by-Step

1. Clean the sheet. Remove oils and residue so you don’t grind contaminants into the surface.
2. Pick your grain direction. Decide whether the grain will run lengthwise or crosswise. Keep it consistent across the whole panel.
3. Start with 180 grit (light pressure). Use a sanding block and long strokes in the chosen direction. Overlap passes so the grain looks continuous.
4. Check for “holidays.” Wipe the surface and look from an angle. Patchy reflection usually means you missed areas or changed pressure mid-stroke.
5. Move to 220 grit. Repeat the same long, straight strokes. Your goal is to remove the 180-grit scratch character while keeping the direction identical.
6. Refine with 320 grit. Consider a light mist of water if the sheet loads; keep pressure light and strokes long to avoid swirl marks.
7. Finish with 400 grit. Do final “set the grain” passes in one direction only. Avoid stopping mid-stroke to prevent darker streaks.
8. Clean and dry. Wipe away all residue and let the panel dry completely before handling or coating.

Special Cases

Don’t sand through the zinc. If you see bare steel, you went too aggressive or stayed in one spot too long. Use lighter pressure and longer strokes.

Edges and corners: Zinc is easiest to remove at sharp edges. Either tape edges or sand them with extra caution and lighter pressure.

Outdoor projects: If you reduce the zinc layer significantly, consider a protective clear coat or paint system suitable for galvanized steel.

Pro Tips

• Long strokes win. Short strokes create visible start/stop marks that break the grain.
• Use a block. It keeps pressure even and prevents finger ridges.
• One direction only at the end. Your final grit should look like a single consistent “grain pass.”
• Replace paper early. Loaded sheets create streaks and uneven sheen.

Aftercare

• Wipe with alcohol or a galvanized-safe cleaner to remove residue.
• Keep the panel dry if it will sit before installation.
• If you plan to coat, follow the coating manufacturer’s prep guidance for galvanized surfaces.

FAQs

• Can I start finer than 180? You can, but 180 helps establish the grain faster. If the sheet is already smooth and you only want light brushing, start at 220.
• Should I wet sand galvanized steel? Wet sanding can reduce loading at 320–400, but keep water controlled and dry the panel thoroughly after.
• Why do I see streaks? Usually inconsistent pressure, short strokes, or a loaded sheet. Use a block and longer strokes.
• Will this remove the zinc coating? Light sanding mainly textures the surface, but heavy pressure can cut through. Work gently and inspect often.

Watch & Learn

Recap: choose a grain direction, use a sanding block, and make long overlapping passes. Start the grain with 180, refine through 220 and 320, then “set” the satin look with 400 using light pressure.

To build a consistent brushed finish with the same progression, use these grits: 180 Grit (100 Pack), 220 Grit (100 Pack), 320 Grit (100 Pack).

When the grain is consistent, galvanized steel looks cleaner and more intentional—without needing aggressive grinding. The key is light pressure, long strokes, and not lingering in one spot.
