Sanding End-Grain Breadboard Tenons so Shoulders Stay Crisp

Breadboard ends are a classic way to stabilize wide panels, keeping them flat while allowing seasonal movement. But sanding the end-grain tenons that slide into those ends requires delicacy. Too much pressure or the wrong grit sequence, and you’ll round crisp shoulders or shorten the fit. The goal is to smooth the tenon cheeks for easy slide-in while preserving dead-square shoulders that seat tightly against the breadboard face.

Why end-grain sanding matters here

Unlike long-grain, end-grain cuts slowly, loads paper quickly, and shows every scratch. Shoulders define the joint’s crisp look—if they round over, you’ll see gaps after assembly. Correct sanding preserves the geometry while making assembly smooth and glue surfaces properly prepped.

Tools you’ll need

• Rigid sanding block (hardwood, aluminum, or phenolic)

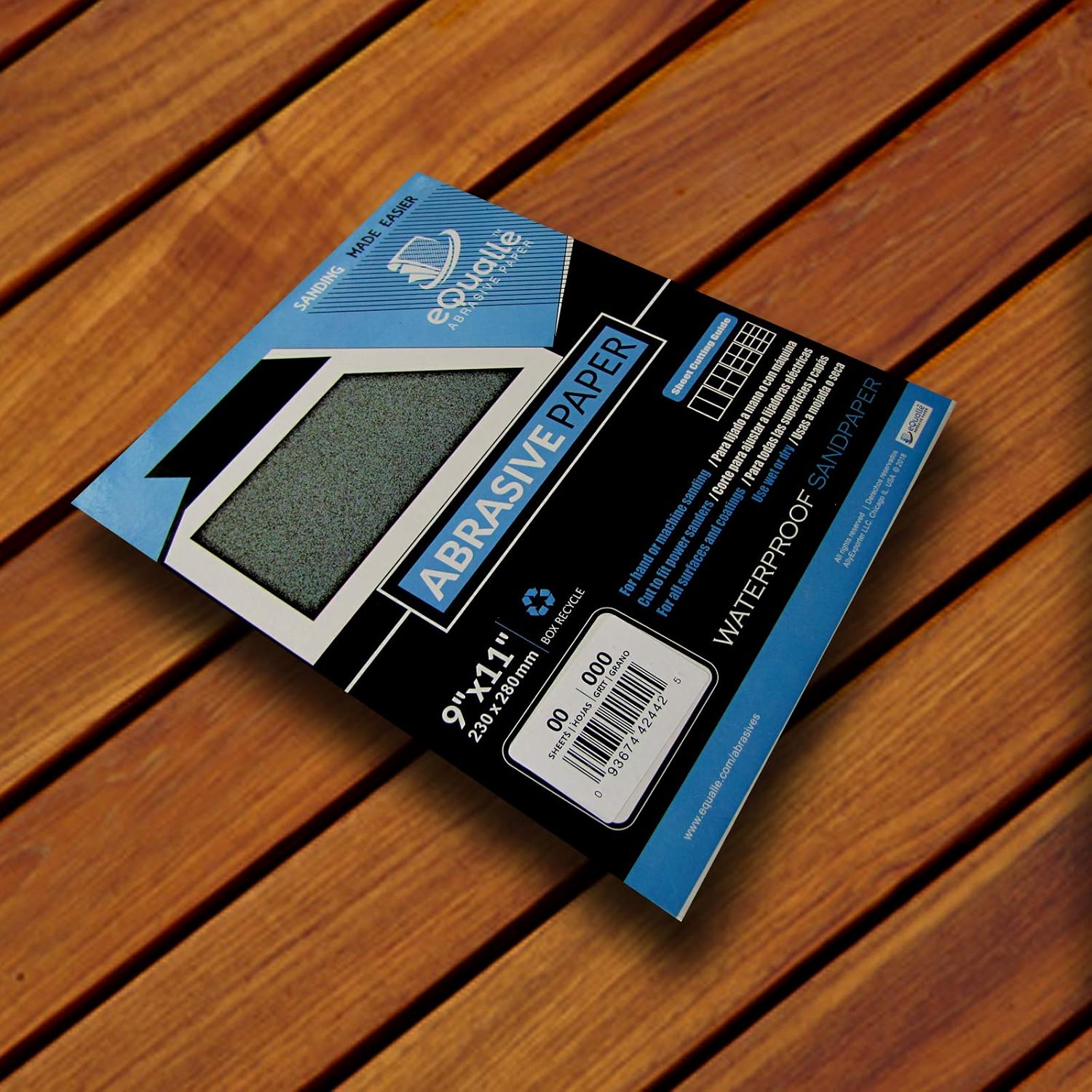

• 9×11 silicon carbide sandpaper sheets in coarse-to-fine grits
• Small trim square or engineer’s square
• Marking knife and pencil for shoulder layout
• Bench vise or holdfasts to stabilize the panel
• Vacuum and tack cloth

Recommended grit sequence

• 80 grit: Level saw marks or slight over-thickness quickly.
• 150 grit: Refine scratches and true the cheek flatness.
• 220 grit: Final smoothness for glue and slide-in fit.

Step-by-step sanding process

1. Secure the work. Clamp the panel so the tenon projects freely. Shoulders must be supported—never let the panel rock as you sand.
2. Mark the safe zone. Knife the shoulder line clearly. Shade the cheek with pencil so you know where you’re removing stock, not the shoulder.
3. Flatten with 80 grit. Wrap 80 Grit (25-pack) on a hard block. Stroke straight along the cheek with even pressure. Stop as soon as saw marks vanish—don’t chase shoulder lines.
4. Refine flatness with 150 grit. Switch to 150 Grit (50-pack). Use light, even passes to remove coarse scratches and confirm cheek flatness against a square edge.
5. Final smoothness with 220 grit. Wrap 220 Grit (100-pack) on the block. Two or three light strokes are enough—end-grain can polish quickly and resist glue if over-sanded.
6. Check shoulders. Square across the joint; if any rounding shows, re-knife lightly and avoid sanding beyond that line.
7. Dust control. Vacuum thoroughly, then tack to remove fine powder before assembly.

Special cases

• Thick panels: For large tenons, sand in sections, checking flatness often. Don’t overwork one area—keep cheek pressure consistent.
• Machine marks: If the cheek shows planer ripple, skew the block slightly with 80 grit to cut across ridges before moving up.
• Sloppy mortise fit: Use sandpaper wrapped around a steel rule to take fine shavings—don’t remove more than needed.

Pro tips

• Always sand with a block—never fingers. Blocks keep cheeks flat, shoulders crisp.
• Use pencil shading to gauge removal. When the shading disappears evenly, you’re flat.
• Stop early—over-sanding tenons makes joints sloppy and weak.
• Fresh paper cuts end-grain better. Replace often instead of bearing down.
• Keep shoulder lines crisp by treating them as “do not cross” boundaries.

Aftercare

• Assemble promptly after sanding to prevent swelling at exposed end-grain.
• Apply glue thinly and evenly; sanded end-grain soaks it quickly.
• Clamp evenly across the joint to avoid gaps at shoulders.

FAQs

• Should I plane instead of sanding? A sharp shoulder plane is ideal for bulk removal; sanding is for final truing and smoothing.
• Can I sand shoulders? No—shoulders must stay knife-crisp. If cleanup is needed, pare lightly with a chisel.
• What if tenons are too tight? Sand cheeks evenly on both sides—never just one—to preserve centering.
• Is 320 grit better for glue? No—220 is optimal. Finer grits can polish the surface and reduce glue penetration.

Video: sanding breadboard tenons

Bottom line: Sand breadboard tenons with discipline: 80 for marks, 150 for refinement, 220 for final smoothness. Always use a rigid block, stop at the shoulder line, and check square often. That way your joint stays crisp, tight, and built to last.
