Sanding Birch Plywood Edges: No Fuzz, No Veneer Blowouts

Fresh-cut birch plywood edges can look fuzzy, striped, and uneven—especially where alternating plies show end grain. Power-sanding too aggressively risks rolling thin face veneers or creating low spots that telegraph under paint or clear finish. The answer is a disciplined hand-sanding workflow that keeps faces flat, fibers tamed, and glue lines crisp. Below is a shop-tested sequence for silky, durable edges on shelves, cabinet boxes, drawer parts, and built-ins.

Why sanding matters on plywood edges

Plywood edges combine hard latewood bands, softer earlywood, and glue lines. Abrasives cut these zones at different rates, so heavy pressure creates washboarding and burnished stripes that finish unevenly. Smart sanding does three things:

• Controls cut rate: A hard, flat block spreads pressure so you level rather than trench soft layers.
• Manages fuzz: Proper grit steps shear and refine raised fibers instead of merely polishing them down to reappear later.
• Protects veneers: Working off the face and using light passes keeps the top ply from chipping or rolling.

Tools you’ll need

• Rigid sanding block (hardwood or aluminum); thin cork pad optional for slight conformity
• Fine file or block plane for very light edge jointing (optional)

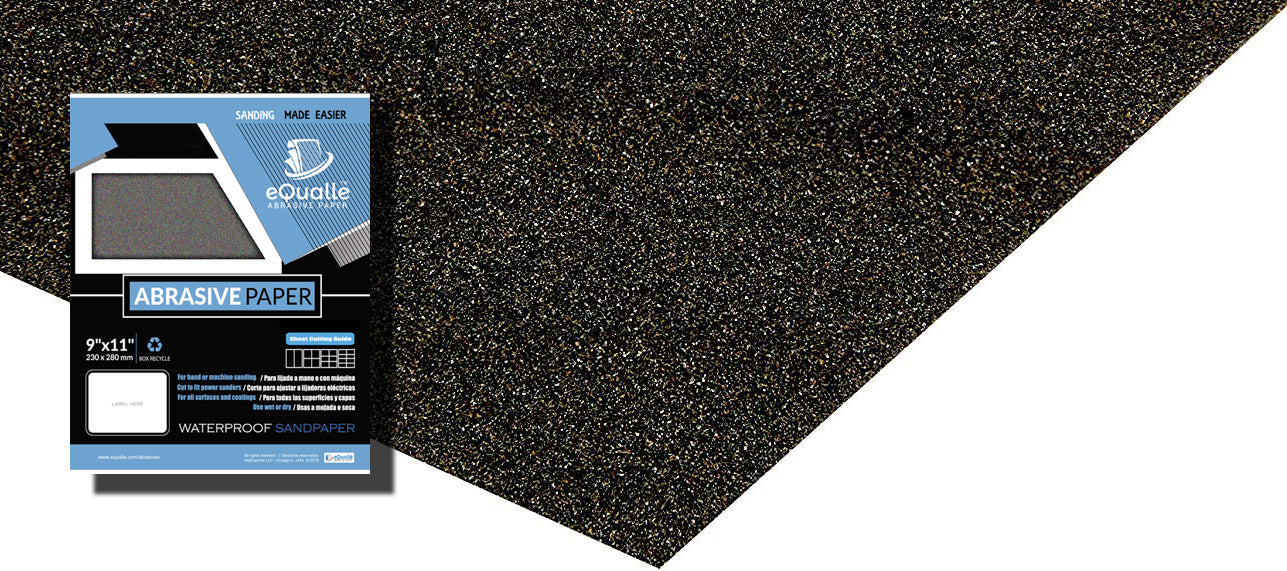

• 9×11 in silicon carbide sheets in three grits (see sequence below)
• Pencil for witness lines and a small square
• Vacuum with brush attachment, microfiber cloths, tack cloth
• Raking light to read scratch flow and low spots
• Masking tape for face-veneer protection on show faces

Recommended grit sequence

• 120 grit (shape): Shears fuzzy fibers, flattens minor saw marks, and trues the edge without gouging.
• 220 grit (refine): Levels 120 scratches and evens out alternating plies for uniform absorption.
• 400 grit (finish prep): Optional on clear finishes and touch zones; creates a silky edge that won’t snag cloth.

Step-by-step: crisp, clean plywood edges

1. Protect the face veneers. If the edge meets a show face, run a narrow strip of painter’s tape 0.5–1 mm back from the edge. This preserves the arris and prevents accidental scuffs as you work.
2. Joint lightly only if needed. If the saw left significant nibs, take one whisper pass with a sharp block plane or fine file to knock them off. Keep the tool dead square and stop the instant saw marks disappear.
3. Shape with 120 grit. Wrap a rigid block with 120 Grit (25-pack) and make long, even strokes along the edge. Use light pressure; let the grit cut. Draw a pencil line along the edge—when it fades uniformly, you’re flat. Avoid rocking the block over the corner; keep faces square to protect thin top veneers.
4. Break the arris—barely. Two very light passes at 45° with the same 120 grit soften the knife-edge so it doesn’t crumble later, but keep the ease minimal (you’re not creating a chamfer).
5. Refine with 220 grit. Switch to 220 Grit (50-pack) and repeat the long, overlapping strokes. This step removes 120 tracks and evens the alternating hard/soft plies so stain or paint reads uniformly. If you see zebra-like burnish on hard glue lines, lighten pressure and use a fresh sheet—dull paper polishes instead of cutting.
6. Optional finish prep with 400. For clear edges or touch-heavy spots (open shelves, desk tops), give a whisper-light pass with 400 Grit (100-pack). Two or three strokes are enough; you’re smoothing, not burnishing. Over-sanding can close pores and create finishing adhesion differences.
7. Dust control and inspection. Vacuum thoroughly; plywood dust loves to lodge in glue-line pores. Wipe with microfiber, then a light tack. Under raking light, confirm a continuous, even sheen with no low trenches at soft plies.
8. Finish smart. For paint: prime edges first and sand the primer to 320–400 for a glassy band that matches flats. For clear: consider a thin pore-filling sealer or a sanding sealer to even absorption, then build your topcoats with light de-nibbing between coats.

Special cases

• Laser-cut or CNC edges: Heat-glazed fibers resist normal cutting. Start with a fresh 120 sheet using lighter, longer strokes; wipe with alcohol to remove resin before stepping to 220.
• Edge banding: Sand the plywood edge before applying solid wood or iron-on banding so you don’t telegraph lows. After banding, flush-trim and finish-sand the banding only, protecting the plywood with tape.
• Veneer repairs: If the top ply chips, patch with matching veneer. Level the patch at 220 on a small, hard block—avoid orbitals that can undercut adjacent plies.
• Stain-grade birch: Stop most edges at 220 to maintain consistent color uptake; use 400 only on final coats for de-nibbing.

Pro tips

• Keep the block fully supported on the edge—no fingertip sanding. Fingertips create scallops aligned with soft plies.
• Replace sheets early. Dull abrasive polishes glue lines and leaves soft zones low.
• Sand edges before large panel faces. This prevents edge dust from scratching broad surfaces during later steps.
• Use pencil witness lines and stop the instant they disappear evenly. More passes rarely improve flatness; they just risk rounding.
• Seal end-grain show edges promptly to prevent moisture uptake and telegraphed swelling under finish.

Aftercare

• For painted cabinetry, de-nib edges lightly with 400 between coats; avoid building thick films on the arris to prevent chipping.
• For clear finishes, refresh with a quick 400 kiss and a thin maintenance coat when edges feel dry or show micro-scuffs.
• Avoid harsh cleaners that attack glue lines; use pH-neutral soaps and soft cloths.

FAQs

• Can I use a random orbital on plywood edges? Not for flattening. Use a hard block; orbitals tend to roll corners and trench soft plies.
• Is 80 grit faster? It is—and it leaves deep scratches and risks undercutting. 120 is the safe ceiling for shaping on birch ply edges.
• Do I need to fill pores? Birch usually levels well with primer or sealer. For ultra-smooth painted edges, a high-build primer sanded to 320–400 works wonders.
• Why do glue lines look shiny? You’re polishing them. Switch to a fresh sheet and lighten pressure so you cut evenly instead of glazing.

Video: Clean, flat plywood edges—start to finish

Bottom line: On birch plywood edges, control beats aggression. Shape at 120, refine at 220, and—if the project calls for it—finish-kiss at 400. Keep a hard block flat, protect the face veneer, and stop as soon as witness lines vanish. You’ll get crisp, fuzz-free edges that take finish beautifully and hold up to daily use.
