Remove Laser Scale From Cut Edges: Belts, Discs, and Hand Sheets

Laser scale is a hard oxide layer formed on thermally cut steel. It can look dark and smooth while bonding poorly to paint or weld preparation. Removing it is not the same as rounding the cut edge. Select the tool by the length, access, and required geometry, then verify bare, stable metal across the entire edge.

Confirm the required endpoint

Identify the steel grade, cutting process, downstream weld or coating specification, and edge-radius requirement. Remove oil and loose debris. Inspect both faces, the vertical cut, corners, holes, and dross at the underside. Thick dross may need mechanical removal before any abrasive can work efficiently.

The cleanliness checks in mild-steel surface preparation provide the baseline: stable metal, no hidden oxide, and a profile compatible with the next operation. Do not confuse a shiny burnished scale surface with clean steel.

Choose belt, disc, or hand sheet

A belt can process a long accessible straight edge quickly, but it can cut a groove if the contact wheel or platen is misaligned. A disc reaches contours and local scale but tends to round outside corners. A hand sheet is slow yet gives excellent control around slots, tabs, and final verification zones. Often the efficient sequence is bulk removal with the appropriate machine followed by supported hand inspection.

For a small edge or final hand pass, an 80-grit wet/dry sheet can expose persistent oxide when dry use and the finish specification permit it. The same item has an alternate product destination. A sheet is not a substitute for an industrial belt or disc on heavy continuous scale.

Clamp the work securely and orient sparks and dust away from people, combustibles, and equipment. Wear eye, hearing, respiratory, and hand protection appropriate to the process. Control sharp edges before handling, but preserve any specified corner.

Read the removal pattern

Begin on a representative test edge. Use the machine square to the face defined by the drawing, not merely square to an irregular burr. Make one light pass and inspect. Dark scale remaining in striations appears as narrow lines or islands. Bright metal with a smooth dark glaze may still be burnished oxide; compare it with a freshly filed reference if the process allows.

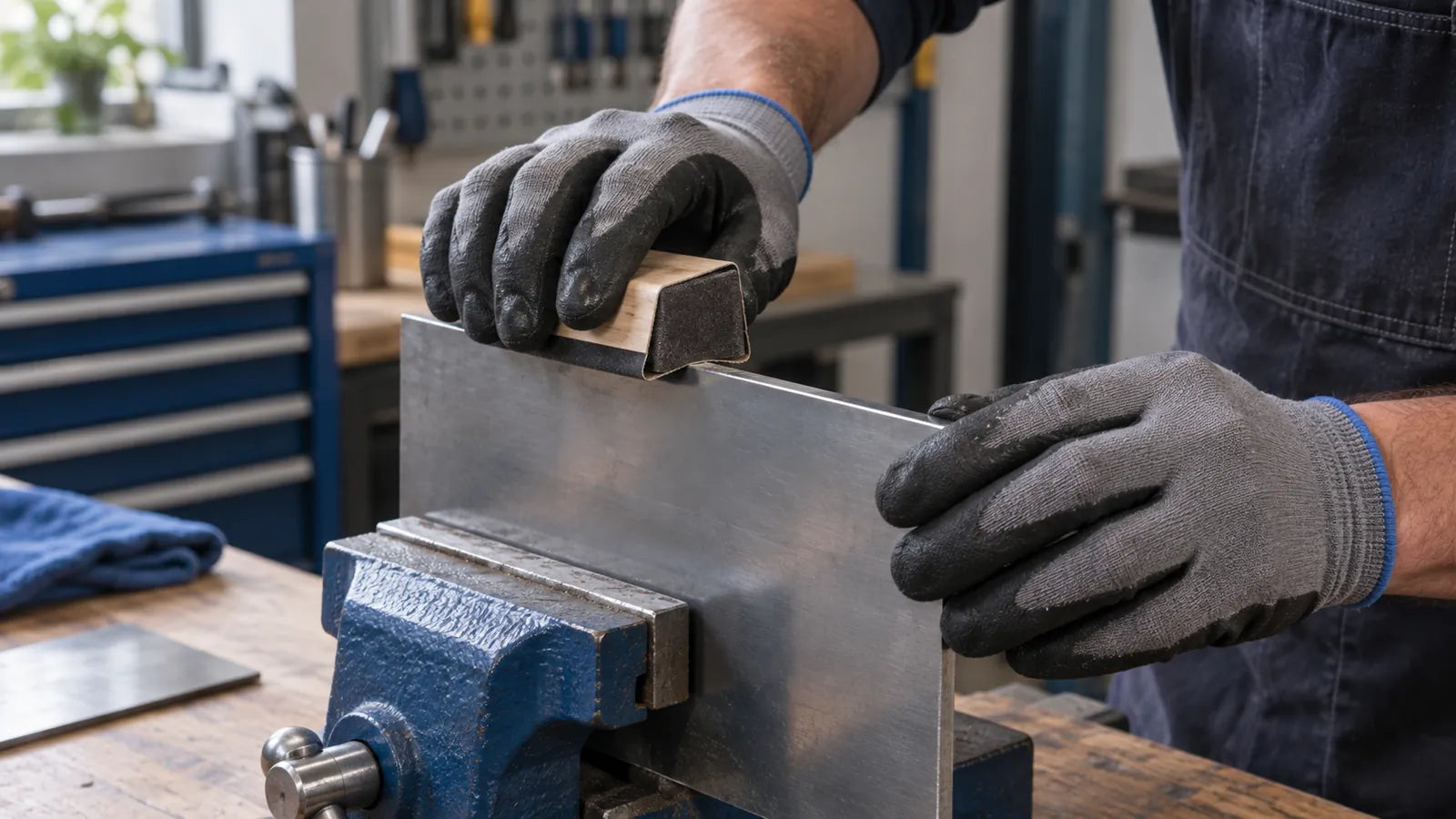

With a hand sheet, wrap the abrasive around a firm flat support. Stroke along the edge rather than rocking across it. Use fresh paper as soon as cutting slows. The common response of increasing pressure bends the backing around the corner and removes geometry instead of scale.

Inspect holes and inside corners separately. A narrow shaped support reaches them more predictably than the rim of a disc. Do not enlarge a hole or thin a tab to reach a cosmetic endpoint. If oxide persists in deep cut striations, the fabrication process or edge allowance may need correction.

Verify before coating or welding

Clean the edge using the specified method and inspect in white light. Check the complete perimeter, especially the underside where dross was removed. Compare with the requirements for profile, radius, and contamination. If rust later returns from pits, use the diagnostic approach in metal rust recurrence rather than polishing only the visible orange color.

For coating, apply pretreatment or primer within the allowed clean-metal window. For welding, follow the welding procedure and remove contaminants to its specified distance. Do not leave abrasive fragments or oily residue in the joint.

The successful edge is clean and dimensionally intact. The fastest tool is not automatically the best: use a belt for accessible length, a disc for controlled local access, and a supported sheet for edges where feedback and geometry matter most.

Compare tools with a timed sample

For production work, prepare three representative offcuts and test the belt, disc, and supported sheet for the same short interval. Record oxide removal, edge-radius change, heat, abrasive loading, and cleanup time. The fastest visible removal may require more hand correction or produce a geometry failure.

Use a radius gauge or drawing-specific check after each sample. A dark line that disappears is not sufficient evidence if the corner has also moved. Examine the cut striations under magnification and confirm that oxide is removed at their roots.

Once the method is chosen, define tool-change and abrasive-change limits. A belt that tracks poorly or a disc whose edge is worn changes the result across the batch. Inspect the first piece, a middle piece, and the final piece with the same lighting and gauge. Consistent verification converts tool selection from operator preference into a repeatable fabrication process.

Include coating adhesion or weld-quality feedback from the next process in the tool record. If one preparation method repeatedly causes rejection, the edge may look clean while retaining oxide or an unsuitable profile.
