How to Sand Delrin (Acetal) for Paint: Creating a Safe Mechanical Key (320–800 Grit Guide)

Delrin, also known as acetal resin, is an engineering plastic prized for its slick surface and strength. That same slipperiness makes it notoriously difficult to paint—traditional sanding barely touches it, and adhesion promoters often peel off. The key is controlled surface roughening with the correct grit sequence and cleaning routine.

Why Sanding Matters on Delrin

Acetal has a naturally low surface energy (≈40 dyn/cm), so paints and adhesives don’t bond well. Light sanding raises microscopic ridges that give coatings a mechanical grip, while still maintaining dimensional accuracy for precision parts.

Recommended Tools

• Soft backed sanding pad or micro abrasive cloth.
• Fine wet/dry sandpaper sheets.
• Plastic-safe degreaser or isopropyl alcohol.
• Lint-free cloths and nitrile gloves.
• Plastic primer designed for low-energy substrates.

Best Grit Sequence for Mechanical Keying

• 320 grit: initial matting to break surface sheen without gouging.
• 600 grit: refine and spread micro scratches evenly for primer grip.
• 800 grit: optional finish for thin coatings or clear lacquers.

Step-by-Step: Prepping Delrin for Paint

1. Clean thoroughly. Remove any mold release or oil using isopropyl alcohol. Handle with gloves after cleaning.
2. Sand with 320 grit. Use light, even pressure and random motion to avoid flat spots. Goal: dull sheen, not deep grooves.
3. Inspect surface. Hold at a low angle to light—uniform matte means proper key.
4. Refine with 600 grit. This smooths peaks and creates micro-texture for primer bonding.
5. Optional 800 grit pass. Use if you need a satin finish or clear topcoat.
6. Degrease again. Any residual dust or fingerprints will ruin adhesion.
7. Apply plastic adhesion promoter. Follow manufacturer’s flash time and coat thickness guidelines.
8. Prime and paint. Use flexible urethane or epoxy systems designed for engineering plastics.

Special Cases

Thin Delrin panels can warp under heat—avoid power sanding. For machined parts with critical tolerances, mask functional areas before scuffing to preserve fit.

Pro Tips

• Always sand dry—wet sanding reduces friction too much and glazes the surface.
• Keep sandpaper fresh; loaded grit burnishes instead of abrading.
• Apply light crosshatch strokes for even scratch orientation.

Aftercare

• Allow paint to cure fully (24–48 h) before handling.
• Avoid solvent wipes on fresh paint—they can re-soften primer.
• For wear surfaces, consider leaving Delrin uncoated to retain lubricity.

FAQs

• Can I flame-treat instead of sanding? Possible, but requires precision—excess heat causes blistering. Light sanding is safer.
• Does paint actually stick to Delrin? With proper mechanical key and adhesion promoter, yes—but it’s never a permanent bond.
• Why is my primer beading up? Surface still has oil or mold release—clean again and lightly resand.

Watch & Learn

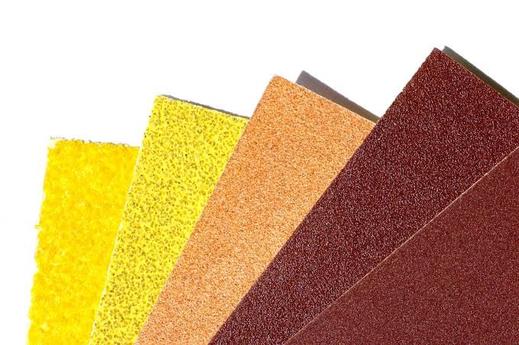

Grab the right grits: medium, fine, and super-fine sheets ensure ideal surface keying without damage to engineering plastics.
