Create a Brushed-Nickel Look on Aluminum With a Signed-Off Sample

The right answer to creating a brushed nickel look on aluminum by linear sanding begins with a boundary, not a grit number. Define color, line spacing, direction, and clear-coat effect on a sample before reproducing one-direction strokes on the part.

This workflow is for a sound, identified workpiece and an authorized cosmetic or preparation task. It does not convert structural damage, an unknown coating, an exposure hazard, or an incompatible finish into a sanding problem. Record the starting condition before removing material so the result can be compared with evidence instead of memory.

Approve the visual standard on scrap

Place candidate aluminum samples beside the reference nickel finish under the actual room lighting. Record tone, gloss, line direction, line density, and how a clear coat changes each.

Make the first decision while the surface is clean, dry, and visible. Temporary wet gloss, dust, compound residue, and warm shop lighting can all conceal the defect or make it look different. Photograph the same area from two angles and include a scale or reference edge when geometry matters.

Set the no-sand boundary

Stop if the part is plated, anodized, dimension-critical, or must retain a certified protective finish. A decorative abrasion process can remove more than appearance.

This stop rule protects both the workpiece and the operator. It also prevents a small cosmetic issue from expanding into a broad repair. If the decision depends on film thickness, structural capacity, electrical integrity, hazardous-material identification, or code compliance, obtain that information from the manufacturer or a qualified professional before continuing.

Build a controlled test

Prepare flat coupons from the same alloy and starting finish. Use a straight fence or guide, clean dedicated abrasives, and one-direction strokes; isolate the sample from ferrous contamination.

Write down the intended endpoint: for example, a stable edge, a matched grain, a level filled divot, or an approved coating surface. “Looks better” is too vague. A test should change one variable at a time and leave an untouched comparison area.

Change only one variable per coupon: abrasive grade, pressure, stroke overlap, or topcoat. The selected sequence should be reproducible without cross-strokes or hand-shaped bright spots.

If that approved sequence calls for the listed grade and format, eQualle 320-grit sanding sheets, pack of 10 can supply the abrasive for the controlled step. The product link is not a prescription for this specific material: confirm grit, backing, tool compatibility, speed, wet-or-dry use, and safety controls against the complete job specification.

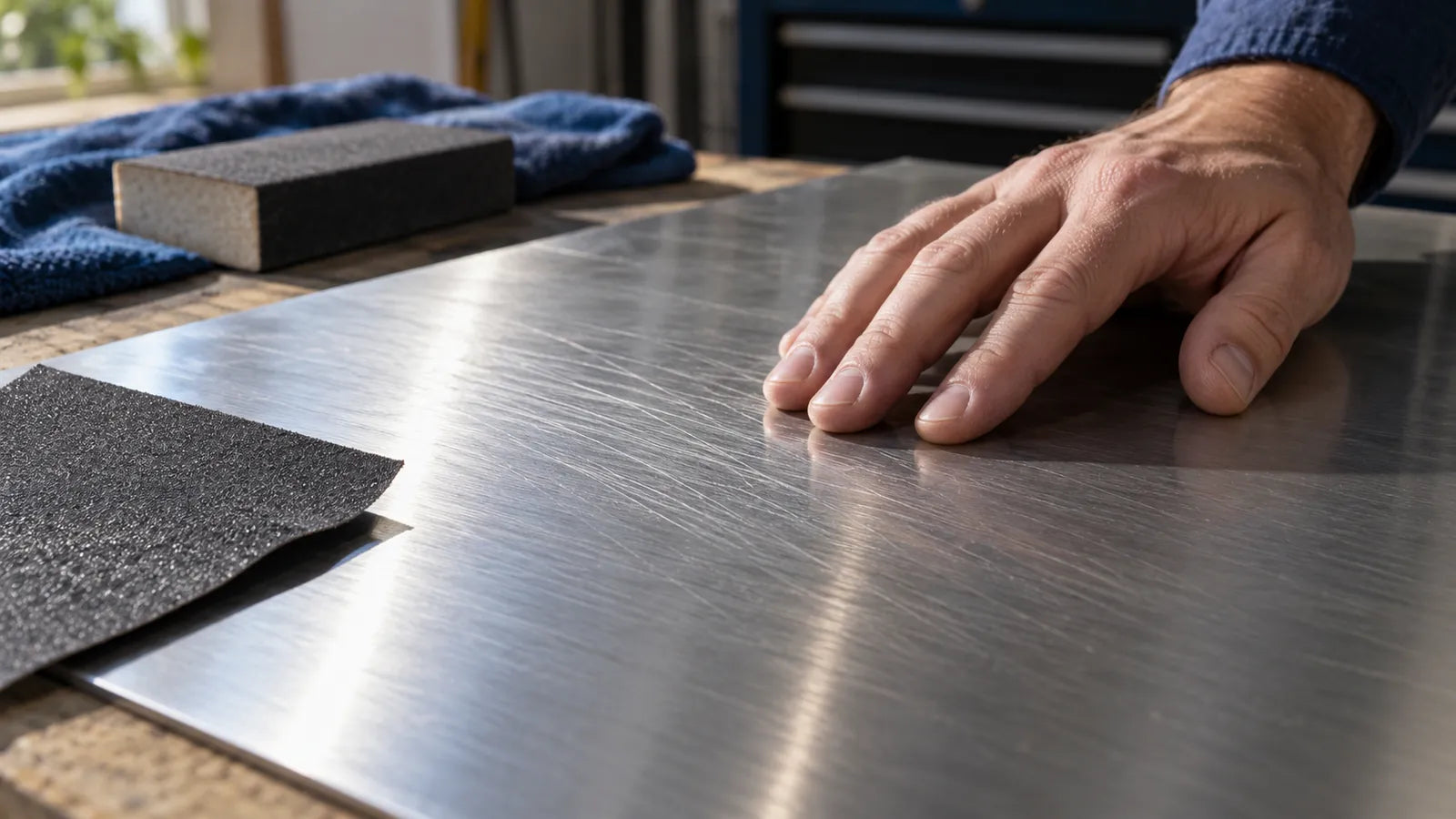

Inspect the dry result

Clean and fully dry every coupon before sign-off. View them head-on and at a low angle, then coat one if the production part will be coated. Keep the approved coupon at the workstation.

Clean between steps with a method compatible with the substrate and finish. Replace contaminated or loaded abrasive rather than adding pressure. Check nearby edges, seams, hardware, and protected surfaces, because collateral damage may appear outside the small area that received attention.

Keep the technical reference in scope

Use 3M guidance to define the applicable safety, material, or finishing boundary. Read the current manufacturer instructions, safety data sheet, and local requirements for the actual products and workplace. A general article cannot select respiratory protection, certify a repair, approve a coating system, or override the maker's limits.

The completed record should identify the surface, defect, test area, selected method, controls, and dry acceptance result. If the defect does not respond as the test predicted, return to diagnosis. Repeating the same abrasion over a larger area is not troubleshooting.

Final acceptance checklist

• The original defect and the untouched comparison area were documented.
• Stop conditions were checked before abrasive contact.
• The test used the least aggressive complete process that could answer the question.
• Geometry, film, critical fits, and adjacent materials remain within their limits.
• Dust, slurry, residue, and waste were handled by the job's control plan.
• The result was judged clean and dry under more than one useful light or inspection angle.

A successful repair is not merely smoother. It is a controlled, repeatable result that preserves everything the sanding step was never supposed to change.
