Blend No. 4 Grain on Architectural Stainless Steel

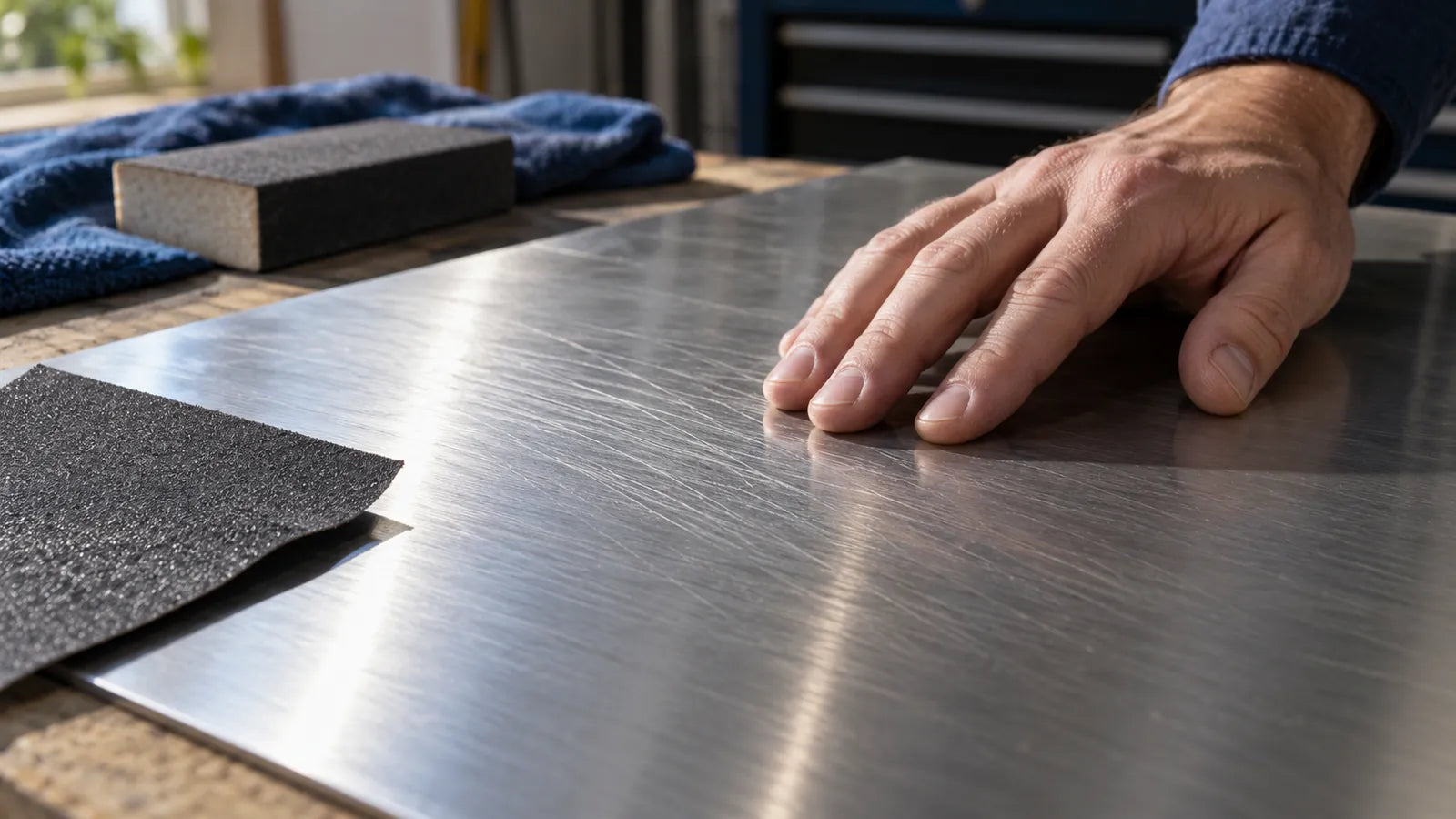

A No. 4 stainless finish is recognizable because its grain is directional and consistent. A repair that matches the average roughness but stops after six inches can still appear as a bright rectangle. Successful field blending reproduces direction, line density, and blend length while keeping corners, welds, and protective surfaces intact.

Establish a reference before touching the repair

Confirm the stainless grade, original mill or shop finish, coating status, and architectural acceptance standard. Determine whether the surface has a clear protective film, anti-fingerprint coating, passivation requirement, or corrosion contamination. Remove soil with an approved cleaner and inspect under long linear reflections.

Place a direction arrow on tape beside the panel. Photograph the untouched grain at close range and from normal viewing distance. If spare material exists, build a coupon. The method for a repeatable linear finishing guide transfers well to stainless even though alloy behavior and the final specification differ.

Use dedicated, uncontaminated tools

Never use abrasives, pads, brushes, or supports that have touched carbon steel. Embedded iron can rust and compromise the appearance. Protect adjacent glass, painted surfaces, gaskets, and finished corners from abrasive debris. If the work is installed, establish dust collection and access that permits full-length strokes without unsafe body position.

Test a supported 320-grit wet/dry sheet only when it matches the specified No. 4 system. The same sheet is listed through an alternate product destination. Grit labels across abrasive families do not guarantee identical line shape, so approve the coupon rather than relying on the number.

Use a firm flat backing on planar sheet. Align it with the grain and make straight strokes that begin and end beyond the visible repair. Lift on the return. Do not scrub back and forth over the scratch; that creates short hooks and crossing lines that appear dark under side light.

Make the blend longer than the defect

First reduce the defect within a narrow lane. Clean and inspect. When the underlying scratch reaches the accepted limit, extend the final pass gradually along the grain. Taper the number of strokes toward both ends so there is no abrupt start or stop. Widen only enough to make the line density continuous.

At a weld or formed corner, use a shaped support and preserve the original radius. Do not let the sheet roll across an edge. Around cutouts, mask the perimeter and continue the grain visually across the interruption. Count strokes on repeated features so one opening does not become brighter than the others.

The scratch-pattern reference library is useful for naming the mismatch: wrong direction, wrong depth, excessive density, or contamination scratches. Correct the specific mismatch instead of randomly changing grades.

Clean, inspect, and restore protection

Vacuum or collect debris, then clean using the specified stainless method. Avoid chloride-containing cleaners. Inspect from the primary approach direction, at an oblique angle, and under the building’s installed lighting. Rotate a portable light to expose cross-grain marks. A repair that looks uniform under a work lamp may appear different beneath continuous ceiling fixtures.

If the project requires passivation or a protective coating, apply it according to the specification after finishing. Record the approved abrasive family, grade, backing, stroke direction, and blend length for later panels.

The right endpoint is a continuous architectural grain without a visible patch boundary, embedded contamination, rounded details, or cross scratches. If matching would require refinishing an entire elevation, document that scope instead of repeatedly deepening a local repair.

Coordinate the blend across an installation

Architectural panels are judged as a group. Before work begins, walk the normal viewing route and mark where daylight, wall washers, and ceiling fixtures cross the grain. A repair beside a light source may need a longer transition than an identical defect in a shadowed return.

Create one signed reference panel and keep it at the site. If more than one worker participates, each person should reproduce that reference on scrap before touching the installation. Agree on stroke direction, body position, overlap, sheet-change point, and cleaning method.

Inspect completed panels together at the end of the same lighting period. Do not approve each patch in isolation and discover later that alternating sections reflect differently. Record unavoidable factory variation separately from new work. The objective is visual continuity from the expected approach, not microscopic identity at every inch.

Where grain crosses a panel joint, place a temporary alignment strip on both sides before sanding. Remove it for final inspection; leaving a hard boundary in place can conceal a direction change. Record the viewing route and signed coupon in the building maintenance file so a later spot repair does not introduce a different abrasive system.
