Flush Weld Beads on Mild Steel: No Undercut Sanding

Grinding welds flat on mild steel seems simple until you look down a raking light and see trenches, washboard, and blue-tempered heat marks. The goal isn’t just “shiny.” It’s a dead-flat transition where the bead blends into surrounding plate without undercut, waves, or scratches that print through primer. This guide shows a disciplined, block-backed sanding sequence that gives you control after the grinder: knock the peaks, level the field, and refine the scratch so paint lays flat and the repair disappears.

Why sanding matters after grinding

Angle grinders move metal fast—but they love to dig. Each arc concentrates pressure on a small contact patch, carving troughs beside a bead (undercut) and leaving crosshatch scratches that reflect under coatings. Sanding with sheets on a hard backer spreads pressure, bridges highs and lows, and leaves a linear, shallow scratch that hides under primer. Done right, you’ll remove the grinder’s damage, flatten the weld, and keep the panel’s plane intact.

Tools

• Angle grinder with flap disc (60–80 grit) for initial knockdown (use lightly)
• Hard sanding blocks (phenolic/steel) in several sizes; a long block for flats and a narrow block for flanges

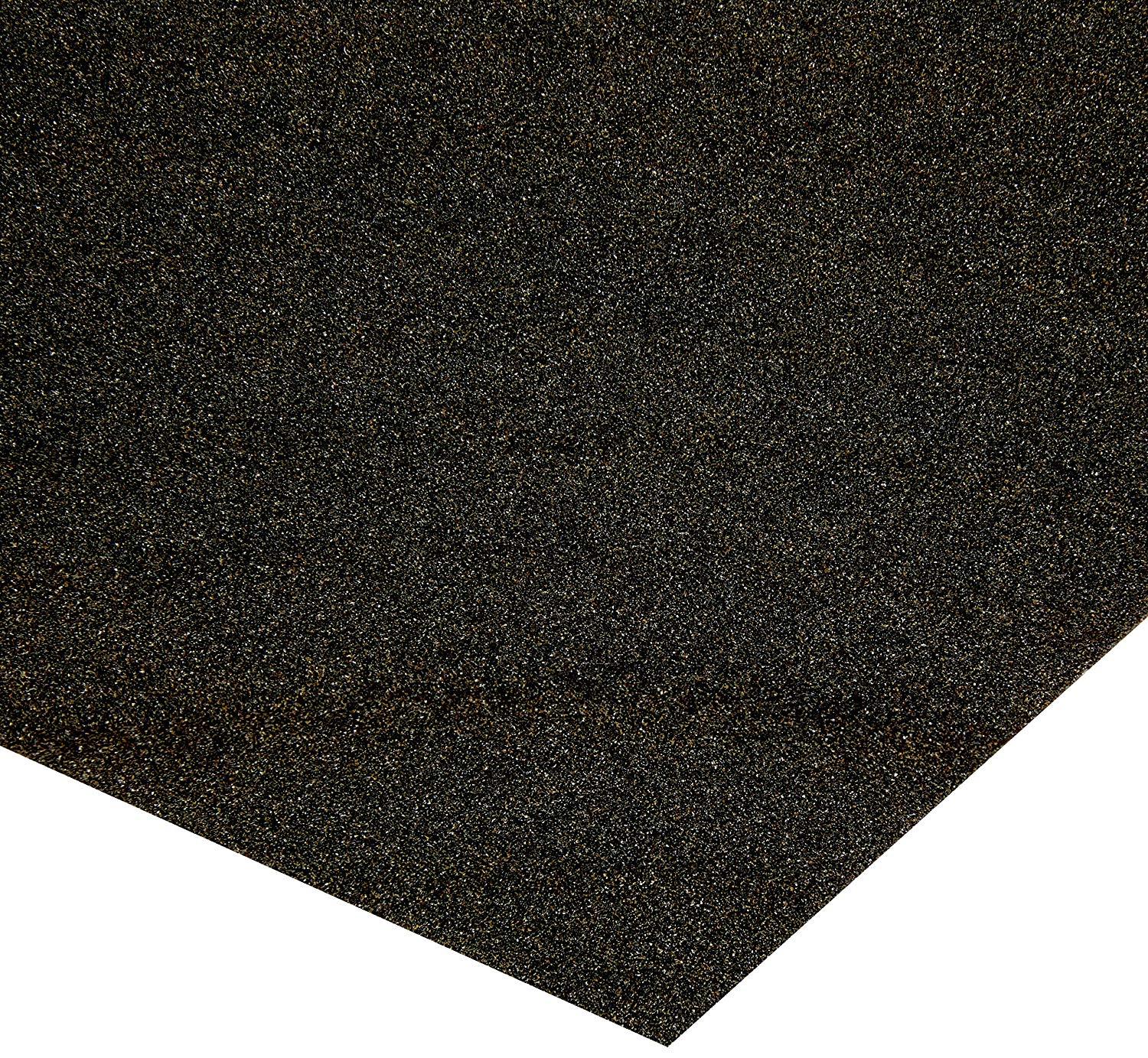

• Silicon carbide wet/dry sheets: 80, 120, 180, 220 (optional 320 before primer)
• Raking light, straightedge, machinist’s dye or guide coat
• Masking tape for panel edges and adjacent details
• Wax & grease remover, lint-free wipes, and a clean squeegee
• Compressed air or vacuum with brush tip
• PPE: respirator, eye/ear protection, gloves

Recommended grit sequence

• Flatten & unify: 80 grit on a hard block to shear grinder ridges and bring the weld into the same plane as the parent metal.
• Refine & de-scratch: 120 grit to remove 80 lines and chase remaining highs without digging.
• Blend & paint-ready tooth: 180 (→ 220) to set a shallow, uniform scratch that buries fast under epoxy or urethane primers.

Step-by-step

1. Knock down the crown—carefully. If the bead stands proud, use a flap disc lightly to bring it close to flush, keeping strokes parallel to the seam. Stop shy of flat; the block will do the precision work. Keep the disc moving to avoid heat tint and low spots.
2. Clean and map the area. Degrease, then dust a guide coat or machinist’s dye over the weld and 2–3 inches beyond. Under raking light, this reveals remaining ridges and any grinder undercut you need to avoid deepening.
3. Level at 80 on a hard block. Wrap 80 grit around a rigid block and sand in long, straight strokes across the weld (perpendicular to its length) so the block bridges the bead and the parent metal together. Replace sheets the instant cut slows—dull paper skates and polishes highs instead of cutting them. For dependable stock that keeps cutting predictably at this stage, use 80 Grit Sandpaper (25-pack).
4. Read the plane; don’t chase lows. Squeegee dust and check under the light. If the dye remains in a narrow trough beside the weld, that’s undercut from grinding—do not dig it deeper. Instead, take two or three full-width passes so pressure rides both sides equally and narrows the trough gradually.
5. Refine to 120 without changing shape. Switch to 120 on the same hard block. Alter stroke direction slightly (e.g., gentle diagonal) so remaining 80 lines are obvious. Stay flat and light. When processing doors, hoods, or long rails, keep pace and consistency with a mid-quantity box like 120 Grit Sandpaper (50-pack) so you’re never tempted to over-sand with a dull sheet.
6. Detail flanges, corners, and holes. Use a narrow hard backer to reach tight geometry. Keep strokes straight; avoid fingertip pressure that creates scallops you’ll spend time erasing later.
7. Blend with 180 for paint-friendly tooth. Make one or two even passes with 180 to erase 120 lines and unify sheen. On larger flat sections where consistency matters across pieces, finish this stage with 180 Grit Sandpaper (100-pack) so the last panel sands like the first.
8. Optional: kiss with 220 for thin primers. If you’re spraying very thin epoxy or urethane, a brief 220 pass tightens scratch and speeds coverage. Keep it light—you’re aligning, not thinning the panel.
9. Thoroughly de-dust and wipe. Vacuum or blow down (dry air), then solvent-wipe per your coating system. Any leftover metal fines or oil will seed craters and fisheyes in primer.
10. Prime within the window. Apply epoxy or your specified primer in thin, even coats with proper flash. Heavy single passes trap solvent and can print the scratch you just perfected. After cure, block the primer 220–320 as needed before topcoat.

Special cases

Visible undercut from grinding: You can’t “fill” a trench with sanding. If a narrow trough remains after careful 80→120 passes, spot-weld, metal-finish, or plan a skim of metal-filled epoxy where appropriate; then re-enter at 120→180 to blend.

Thin sheet metal (automotive skins): Heat is the enemy. Favor the block over the grinder. If leveling is slow at 80, accept the pace to preserve panel shape. Tape 1–2 mm shy of sharp body lines during coarse steps; remove tape for a single, light 180–220 pass to blend.

Heavy structural welds (thick plate): After flap-disc knockdown, use 80 on a long, extra-rigid block to keep planes true. Deep grinder grooves? Stay at 80 a touch longer with straight strokes, then refine—don’t jump to 120 until grooves fade uniformly.

Inside corners/fillets: Sheets on a block won’t reach. Use files or stones to get near flush, then finish the visible flats with the 80→120→180 sequence so the transition reads clean under paint.

Stainless or galvanized steel: For stainless, keep pressure lighter and avoid overheating. For galvanized, avoid breaking zinc more than necessary; feather scratches lightly and use compatible primers. Always follow material-specific safety guidance.

Pro tips

• Hard backing wins. Blocks bridge highs and keep panels flat. Foam and fingertips dish lows and make waves.
• One direction per grit: straight at 80, slight diagonal at 120, straight again at 180 (→ 220). Leftover scratches become obvious and removable.
• Guide coat tells the truth. Re-apply a whisper of color between grits. Stop the moment witness color disappears evenly—extra strokes just thin metal.
• Change sheets early. A loaded sheet skates and polishes; fresh paper cuts cooler, flatter, and faster.
• Work cool. If metal feels warm, pause. Heat softens edges, expands panels, and invites warping on skins.
• Protect edges and holes. Tape around openings and sharp breaks during coarse steps; remove for a single, light blending pass at the end.
• Note your recipe. Record grit stops, stroke directions, and primer brand. Matching a previous repair becomes trivial with notes.

Aftercare

• Let primer reach full cure before aggressive blocking. Rushing clogs paper and can tear soft films.
• Inspect under raking light after primer. If faint grinder lines telegraph, scuff 220–320, add a controlled primer coat, and re-block rather than hammering with compound later.
• For bare-metal intervals between steps, keep the area clean and dry; flash rust seeds adhesion issues.
• On high-wear parts (rails, steps), consider a tougher topcoat and adequate film build to mask micro-texture.

FAQs

• Why not just use the grinder until it’s flush? Because grinders dig troughs beside the bead. Block-backed sanding levels the whole area so the plane stays true.
• Is 60 grit faster than 80? It is, but the deeper trenches cost time to erase and increase undercut risk. 80 is the safer opener for most mild steel panels.
• Wet or dry? Dry is fine on steel (less mess), but keep dust controlled. If you do wet-sand, dry thoroughly and protect against flash rust.
• Do I need to go finer than 220? Only for very thin primers or show finishes. Many epoxy primers bury a clean 180 scratch easily.
• What if I still see a low after 180? Don’t spot-dig. Re-apply guide coat, make two full-width passes with 120, then re-enter 180 to keep the area flat.

Video

Closing

Perfectly blended welds come from restraint and a rigid backer—not brute force. Knock the bead close with a light grinder touch, then let the paper do precision work: 80 → 120 → 180 (→ 220) with straight strokes on a hard block. Keep sheets fresh, use a guide coat, and stop the instant the surface reads uniformly under raking light. Prime within the window and you’ll have a flat, durable repair that disappears under paint—no undercut, no waves, no regrets.
