Sanding Plywood Faces Safely: Grit Ceilings & Burn-Through Tips

Plywood faces look clean out of the stack—but mill glaze, shallow ripples, and handling scuffs will telegraph through stain or paint if you skip smart prep. The catch: face veneers are thin (often ~0.3–0.6 mm). Sand carelessly and you’ll expose a lighter core layer that won’t take stain the same, forcing an expensive do-over. This guide gives you a veneer-safe workflow: conservative grit ceilings, block-first technique, and stop-loss checks that keep edges crisp and color even.

Why Veneer-Safe Sanding Matters

Veneer thickness is your limiting factor. Coarse grits remove fast and flatten fast—but they also erase that thin top layer in seconds, especially along edges and panel highs. Proper sanding aims to: (1) scuff the surface to uniform tooth for finish adhesion, (2) soften mill lines and small glue ridges without changing geometry, and (3) preserve veneer thickness at seams, cutouts, and edges where sand-through happens first.

Tools & Supplies

• Firm, flat hand sanding block (primary tool) plus a thin foam hand pad (for slight crowns only).
• Random-orbital (DA) sander optional, low speed with a soft interface pad—block sets the standard.

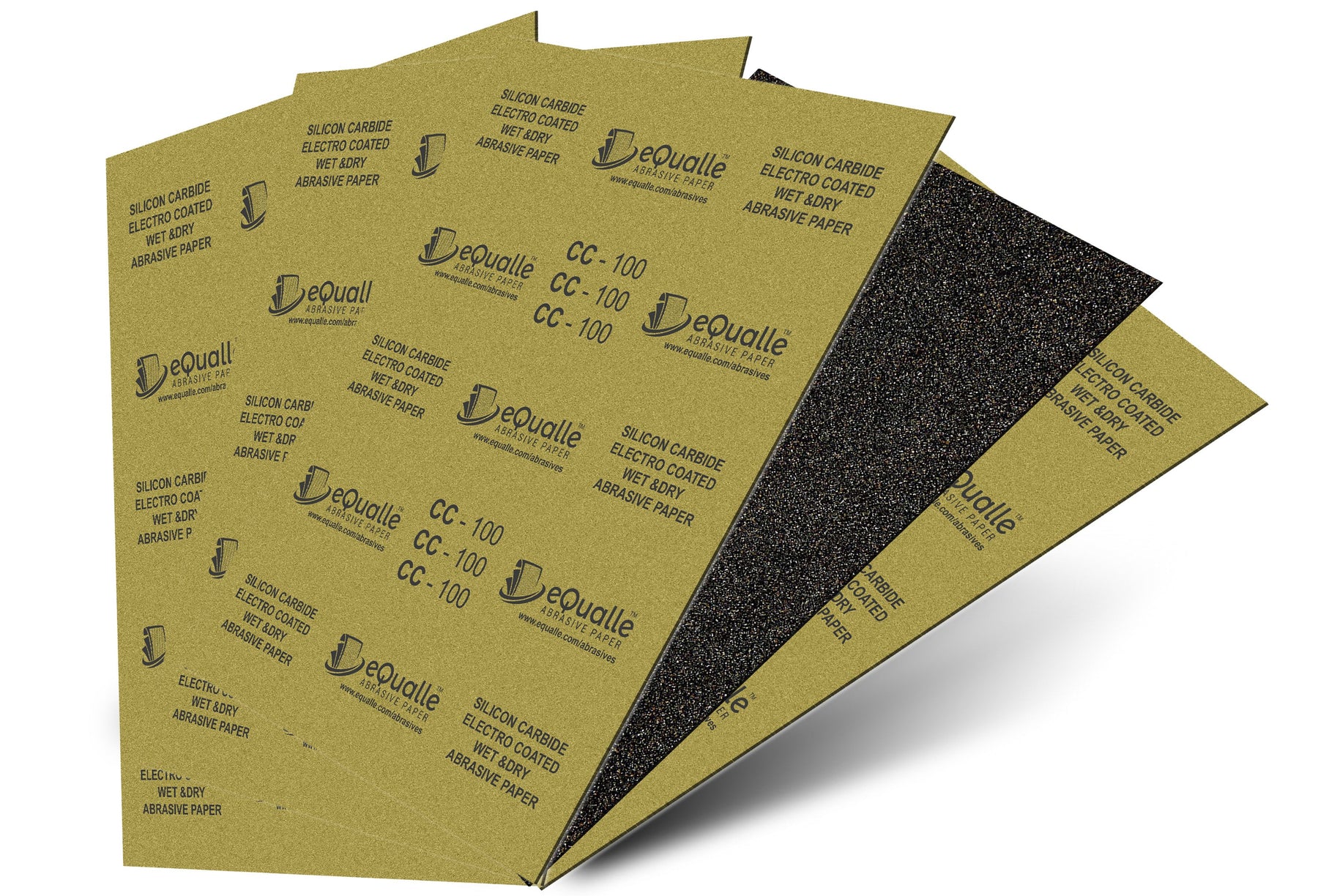

• Wet/dry silicon carbide sandpaper sheets: 180, 220, 320 (320 for between-coat de-nib only).
• Painter’s tape (low-tack) to protect knife-sharp edges and veneer seams.
• Raking/inspection light and a pencil for light crosshatch “map” marks.
• Vacuum with soft brush head, microfiber towels, and tack cloth.
• Finishes: primer/paint or stain + clear; grain filler if you’re chasing a closed-pore look.
• PPE: respirator, eye/ear protection.

Recommended Grit Sequence (Veneer-Safe)

• 180 grit: Only if you need a light reset to knock mill glaze or soften small ridges; block only.
• 220 grit: Primary prep grit for raw plywood faces—creates a uniform, stain-friendly scratch field.
• 320 grit: Between coats only for de-nibbing cured primer/clear; not for raw veneer.

Step-by-Step: Flat, Uniform, No Sand-Through

1. Edge protection & mapping. Tape sharp arrises, seams, and inside cutouts with low-tack tape. Under raking light, draw a faint pencil crosshatch over the field—these guide marks tell you when each grit has done its job so you don’t keep cutting.
2. Test a hidden corner. Make 3–4 light strokes by hand at 220. If the surface powders and your marks fade predictably, you’re in the safe zone. If you see quick color lightening or “telegraph lines” at glue lines, lighten pressure and shorten your passes.
3. Optional light reset at 180 (block only). If mill glaze or tiny glue ridges remain, take a brief, even pass at 180 on a firm block—no DA yet. A sharp sheet like 180 Grit (25-pack) knocks the highs without digging. Stop as soon as your pencil map just disappears; don’t chase perfection at this grit.
4. Primary prep at 220. Vacuum, redraw a light pencil map, and switch to 220 Grit (50-pack) on the same firm block. Use long, with-grain strokes and feather-light pressure. Finish each area the moment the pencil lines fade uniformly; resist “one more pass.” For slight crowns, wrap the sheet on a thin foam hand pad and keep it flat to the surface—no fingertip pressure.
5. DA only where it’s safe. If you must use a sander on large, flat faces, set low speed, mount a soft interface pad, and keep the pad dead-flat. Count passes instead of leaning. Avoid edges and seams with the machine; finish those by hand.
6. Vacuum & inspect under raking light. Any shiny “islands” are lows (not fully scuffed); any bright light patches indicate you’re flirting with sand-through. Blend outward lightly at 220 rather than scrubbing one spot.
7. Coat, then de-nib at 320. After primer or clear is fully sandable, kiss the surface by hand with 320 Grit (100-pack) to remove dust nibs. Two or three very light passes are enough. Vacuum and tack before the next coat. Do not pre-polish raw veneer to 320; it can burnish and cause stain/blotch issues.
8. Final clean & finish. Vacuum in two directions, tack, and apply your topcoat. Maintain a wet edge and avoid over-brushing waterbornes; they set fast and can drag the veneer’s scratch field unevenly.

Special Cases

Ultra-thin or paper-backed veneers: Skip 180 entirely; start at 220 by hand only. If you see a light patch growing, stop, spot prime, and plan an opaque finish rather than chasing raw wood.
Edge banding & seams: Hand-sand banding separately with the block, following its grain. Avoid cross-grain strokes that flash under stain.
Prefinished plywood (UV-cured faces): You’re scuffing the film, not wood—use 320 very lightly and stick with the finish manufacturer’s primer/adhesion recommendations.
Glue smears: Scrape first; sanding glue just polishes it. After scraping, a short 220 pass blends the halo.
Filled patches/footballs: These areas cut differently. Sand them with the block and plan your stain strategy (gel stain, toner, or paint) to hide contrast.

Pro Tips

• Block the flats; pad the crowns. A firm block keeps faces true; thin foam only for subtle contours.
• Time-on-grit discipline. Don’t climb or keep sanding once your pencil map fades—extra passes just thin veneer.
• Alternate directions slightly. A shallow diagonal at 180 (if used), then with-grain at 220, reveals leftovers instantly.
• Keep pressure light. Dull paper + pressure = heat and premature burn-through. Swap to a fresh sheet instead.
• Tape is cheap insurance. Leave tape on edges and cutouts during all raw-wood steps; remove before coating and hand-kiss edges with two 220 strokes.
• Color tests pay off. Do a finish sample on an offcut to confirm your 220 scratch field stains evenly.

Aftercare

• Let topcoats cure fully before rubbing out or installing hardware to prevent edge impressions.
• Clean with non-ammonia, finish-safe products; harsh cleaners can haze young waterbornes.
• For touch-ups later, de-nib locally with 320 by hand, clean, and recoat within the product window.
• Store sheets flat and dry; humidity curls backers and weakens adhesion.

FAQs

• Is 150 grit safe on plywood? Usually no on raw faces—reserve 150/180 for very light resets, block-only, and stop quickly.
• Why did a pale “window” appear? That’s early sand-through. Stop, spot prime, and plan to hide with a toner or opaque system rather than cutting more wood.
• Can I finish at 320 on raw veneer? Not recommended. 220 leaves ideal tooth for stain/primer; 320 is for de-nibbing cured coats.
• DA vs hand block? Hand block wins for control and edge safety. If you DA big fields, keep speed low, pad flat, and stay off edges.
• Do I need grain filler? For a glass-flat look on open-pore veneers (oak/ash), yes—fill after the 220 prep, then sand the filler per its spec.

Watch & Learn

Closing: Treat plywood faces with restraint: protect edges, map the surface, and keep a conservative ladder—180 (brief, block-only if needed) → 220 for raw prep, then a whisper-light 320 between coats. Stock the exact grits so you stay disciplined: start your reset with 180 (25-pack), make your main prep passes with 220 (50-pack), and de-nib like a pro with 320 (100-pack). Your veneer stays intact, and your finish reads clean and even.
