How to Check Clear Coat Thickness Before Wet Sanding Safely

Before you start sanding a car’s clear coat, knowing how thick that layer actually is can mean the difference between a perfect finish and irreversible damage. Modern automotive finishes are thin—usually only 1.5 to 2 mils thick—so measuring before you sand is critical. This guide explains how to check clear coat thickness, choose the right grit sequence, and avoid cutting through to the base color.

Why Thickness Measurement Matters

The clear coat is the transparent protective layer on top of the paint system. Sanding removes microns of this layer at a time; removing too much exposes the base coat and ruins the finish. Knowing your film build ensures you can safely flatten orange peel or oxidation without risk of breakthrough.

Recommended Tools

• Paint thickness gauge (digital or magnetic induction type)
• 9x11" wet/dry silicon carbide sandpaper sheets
• Soft sanding block and interface pad
• Spray bottle with soapy water
• Microfiber towels and polishing compounds

Typical Automotive Film Thickness

• Factory finish: 4.0–6.0 mils total (clear coat ~1.5–2.0 mils)
• Repainted surface: 6.0–9.0 mils total (clear coat ~2.5–3.0 mils)
• Safe sanding margin: 25–30% of clear coat thickness (0.3–0.5 mils)

Step-by-Step: Safe Pre-Sanding Inspection

1. Calibrate the gauge. Zero your paint thickness gauge on bare metal or the supplied calibration plate for accurate readings.
2. Measure across panels. Take at least 6–8 readings per panel, including edges and midsections. Note variations—edges are always thinner due to factory spray patterns.
3. Record average thickness. Subtract estimated primer and base layers (~3–4 mils) to approximate clear coat depth. Anything under 1.2 mils is risky for sanding.
4. Plan your sanding approach. For surfaces thicker than 1.5 mils, start with 1500 Grit (25-pack). For borderline areas, begin directly with 2000 Grit (50-pack) to minimize cut rate.
5. Wet-sand gently. Use soapy water as lubricant and minimal pressure. Sand until the surface turns evenly dull—never chase deep defects into thin clear zones.
6. Polish to finish. Follow up with ultra-fine compound and finishing polish to restore full gloss and protection.

Special Cases

If your gauge reads below 4.0 mils total, skip sanding entirely—use light polishing only. On repainted panels, confirm curing age (minimum 30 days) before any wet sanding to avoid soft film distortion.

Pro Tips

• Always remeasure after each grit—clear removal happens faster than expected with modern abrasives.
• Avoid sanding on sharp edges or body lines; clear coat is thinnest there.
• Keep sanding confined to defect areas, feathering outward with finer grit.
• Wipe surfaces frequently to monitor clarity and progress.
• Use a soft interface pad to prevent uneven pressure on curved panels.

Aftercare

• Seal the surface with a wax or ceramic coating after polishing to restore UV protection.
• Recheck clear thickness annually if performing multiple corrections.
• Wash gently for the first 48 hours post-polish to allow full curing of protective layers.

FAQs

• Can I estimate thickness without a gauge? Not accurately—optical clues can mislead. A digital gauge is inexpensive insurance.
• How much clear does sanding remove? About 0.1–0.2 mils per stage, depending on grit and pressure.
• Is wet sanding safe for all paint types? Only catalyzed 2K urethane systems—avoid sanding single-stage or lacquer clears.

Watch & Learn

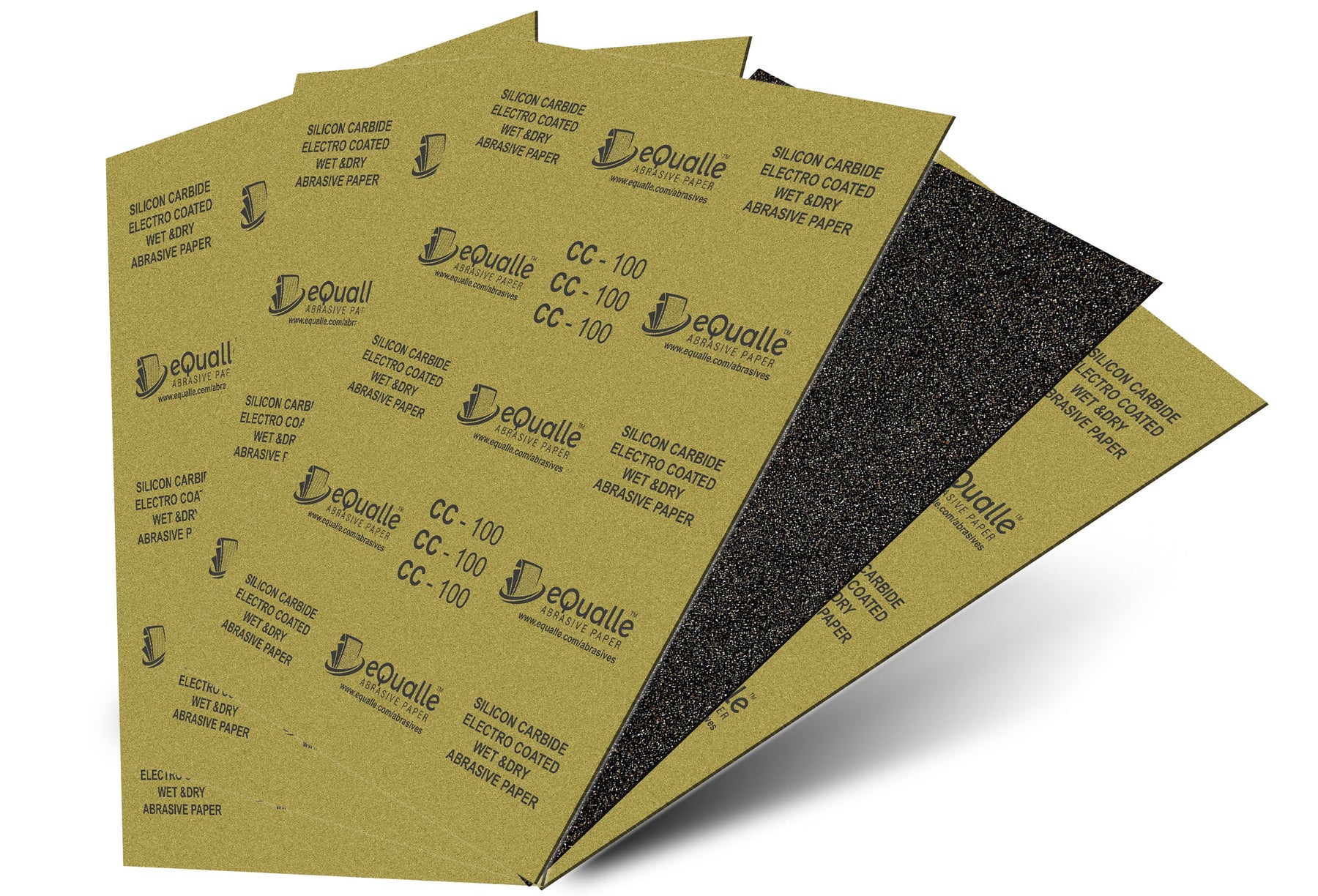

For safe automotive surface correction, use high-quality silicon carbide wet/dry sheets from the super fine sandpaper collection. The proper grit and control ensure precise leveling without thinning your clear coat beyond recovery.

Conclusion: Measuring before sanding isn’t optional—it’s essential. By understanding film thickness and staying within the safe removal margin, you can wet-sand and polish confidently, preserving both clarity and protection on your vehicle’s finish.
