Stop Burn-Through on Edge-Banded Plywood: Grit Map & Blocks

Edge-banded plywood looks clean and modern—right up until you sand through the veneer at the band junction. Because most furniture-grade plywood veneers are only 0.5–0.7 mm thick, a few heavy passes (or a soft pad tilting over the edge) can expose core or glue lines. This guide shows a proven, low-risk workflow to level and blend your edge bands without burn-through, using the right grit ceilings, pad hardness, and hand-block control.

Why sanding matters (especially at the band line)

Edge-band joints concentrate several risk factors: thin veneer, glue squeeze-out that cuts slower than wood, and an abrupt density change where solid band meets plywood face. Sanding with a soft pad or too fine a grit too early can round over the band and dish the adjacent veneer. A disciplined grit map—plus hard-backed blocks for the last 1/4 inch—keeps the face flat, the arris crisp, and the veneer intact.

Tools you’ll need

• Random-orbit sander (5" or 6") with dust extraction
• Hard backing pad for flats; thin/soft interface pad only for gentle final blending
• Long, hard sanding block (cork or phenolic) for edge-line control
• Flush-trim or block plane and a fine cabinet scraper (for proud band cleanup)
• Raking LED light and a soft pencil for guide mapping
• Shop vacuum/HEPA extractor and tack cloths
• PPE: safety glasses, hearing protection, and a good dust mask/respirator

Recommended grit sequence (ceiling by task)

• 120 grit — Initial leveling after scrape/trim; removes planer marks and light glue haze without cutting too fast.
• 180 grit — Refines 120 trails; establishes uniform, with-grain scratch field.
• 220–320 grit — Final pre-finish smoothing; pick 220 for oil/varnish tooth or 320 for waterborne clarity.

Step-by-step: Blend edge bands without burn-through

1. Trim and scrape the band flush. Use a flush-trim bit, block plane, or cabinet scraper to bring the edge band just shy of dead-flush. Your goal is to let sandpaper kiss the last few thousandths—not mill wood. Check under raking light and pencil-map the seam.

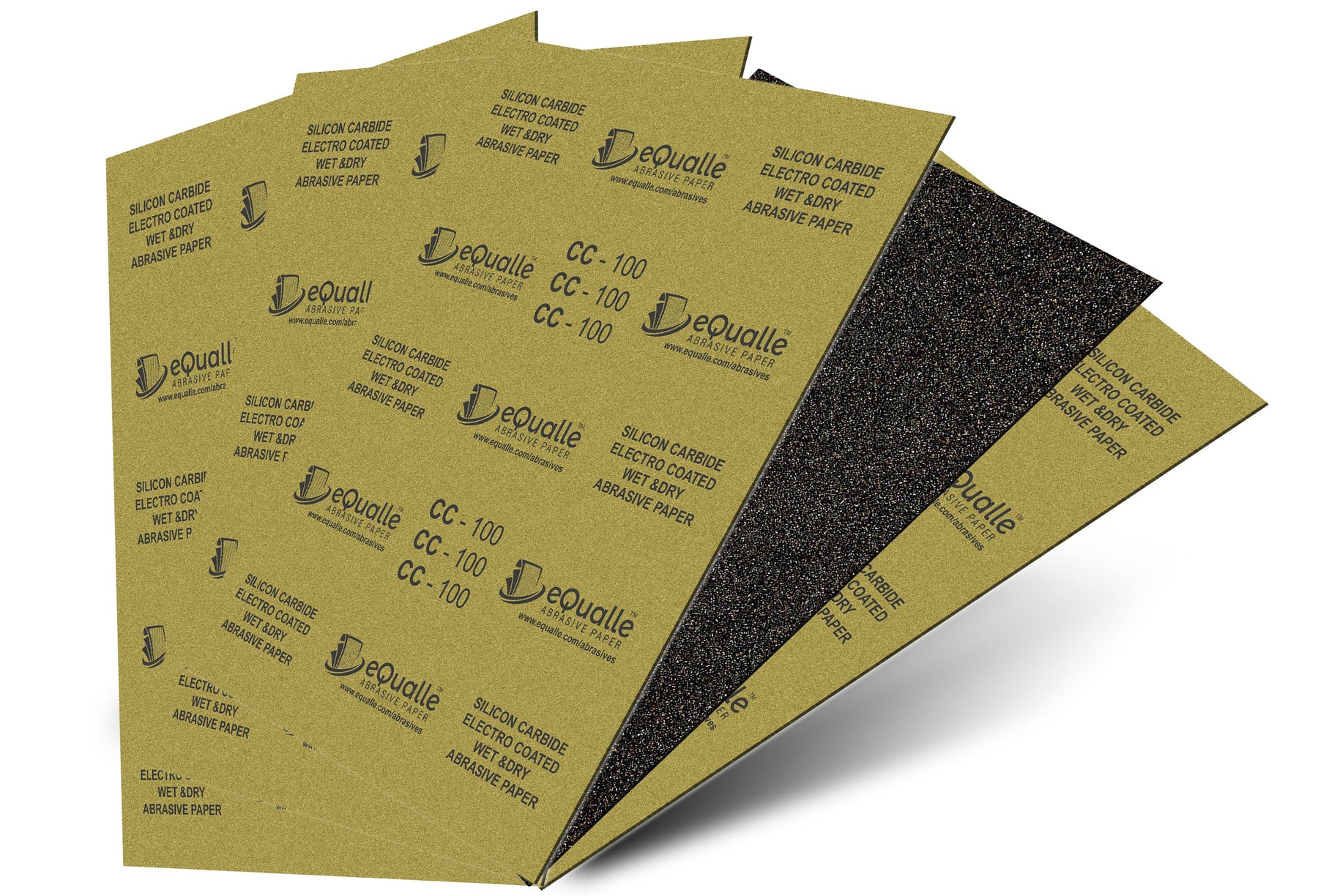

2. Level at 120 with a hard pad. Keep the RO sander perfectly flat on the face, stopping 1/4" short of the edge band. Make light, overlapping passes with dust extraction on. Then switch to a long, hard block and take 2–3 with-grain strokes through the last 1/4" to the edge. For the field area, you can use 120-grit sheets (25-pack) cut to fit your block or sander. Re-map with pencil; the goal is a uniform, matte sheen without shiny glue ghosts.
3. Refine at 180 and blend the seam. Work with the grain only. Repeat the same pattern: machine the field, stop short of the edge, then finish the last 1/4" by hand on the long block. This prevents pad roll-over and keeps the arris crisp. For efficient cut and consistency, step to 180-grit sheets (50-pack).
4. Final pre-finish pass at 220 (or 320 if required). Use light pressure and short dwell times. If your finish system prefers a finer ceiling, do a fast 320 kiss-pass on the field only, then return to a hand block at 220 along the band line. This avoids over-polishing the veneer edge while still delivering an even optical sheen. For a finish-ready surface at common grit ceilings, use 220-grit sheets (100-pack).
5. Detail the corners and inside radii. Wrap a strip of the current grit around a crisp block or dowel of matching radius. Keep the abrasive square to the surface; two light passes beat one aggressive cut that can undercut veneer at the corner.
6. Vacuum, preview, correct. Vacuum thoroughly, then solvent-preview (if compatible) to reveal any lingering glue, shine, or cross-grain ghosts near the band. Spot backtrack one grit on the block—never jump finer to hide defects; it won’t work.

Special cases

Paper-thin veneers (≤0.5 mm): Cap your machine sanding at 180 on the field and do all work within 1/4" of the edge by hand on a hard block. Pre-glued edge band tape: Heat can leave brittle squeeze-out ridges—scrape clean before sanding or you’ll telegraph a dark line under clear finishes. Curved bands: Use a curved block or dowel forms. RO pads ride badly on compound curves and risk roll-over. High-figure veneers (maple, birch): Avoid over-polishing; going past 220 can reduce stain uptake and emphasize glue lines.

Pro tips

• Hard first, soft last. Start with a hard pad to keep flats flat. Use a thin interface pad only for the lightest final blend on gentle crowns—never at the band line.
• Guide-coat discipline. A faint pencil crosshatch before each grit proves you’ve removed the prior scratch set without over-staying.
• Short time-on-grit. When the pencil is gone and the sheen is even under raking light, move on. Lingering builds heat and invites burn-through.
• Edge order. Always finish each grit stage with hand-block passes along the seam so the scratch field is consistent from field to edge.
• Glue control. Scrape, don’t sand, cured squeeze-out. Abrasive skates on glue and digs the adjacent veneer.

Aftercare & finish prep

• Vacuum twice. Use a brush nozzle to clear pores along the seam; trapped dust prints as gray lines under clear coats.
• Water-pop (optional). For waterborne finishes, lightly raise the grain and kiss-sand with 220 on the field (block only at the seam) to tame nibs without thinning the edge.
• Mask smart. If spraying, tape the edge band first and sequence your coats so the band/face meet line stays crisp.

FAQs

• Can I start at 80 to go faster? Not on veneer. 80 cuts too aggressively and increases burn-through risk. Start at 120 after proper scrape/trim.
• Why stop the RO 1/4" from the edge? That gap prevents pad roll-over that rounds the band and dishes veneer. Finish that strip by hand on a hard block.
• Is 320 always better before waterborne? Only if your system calls for it. Excessively fine sanding can reduce stain uptake and make glue lines more visible.
• What if I see a dark glue line after sanding? Stop. Scrape away residual glue, then re-sand lightly at the current grit—don’t try to sand the glue out of the grain.

Video walkthrough

Closing

Burn-through on edge-banded plywood isn’t inevitable. Keep the field flat with a hard pad, protect the last 1/4" with a long block, and follow a conservative 120 → 180 → 220/320 grit ceiling. Combine that with good glue cleanup and raking-light checks, and your bands will blend invisibly into the face—ready for stain, oil, or crystal-clear topcoats.
