Erase Router Burn Marks: Smart Sanding & Heat Control

Nothing screams “amateur” like dark scorch streaks left behind by a too-slow, too-hot router pass. The good news: most burn marks are fixable without reshaping profiles or dulling crisp edges. The key is understanding why burns happen, choosing the right abrasives, and working a controlled sanding sequence that removes the heat-affected layer without flattening details or washing out profiles. Below, you’ll find a pro-grade approach that pairs defect diagnosis with a tidy grit ladder and disciplined dust control, so your parts look clean and deliberate—ready for stain, paint, or clear.

Why sanding matters

Router burns aren’t merely color on the surface—they’re thin, heat-hardened layers where lignin has darkened and fibers have glazed. If you smear or overheat those areas with hasty sanding, you push the discoloration deeper and create shiny patches that finish differently. Proper sanding removes the damaged fibers while maintaining geometry and avoiding additional heat. It also restores uniform porosity so stains or topcoats absorb predictably.

Tools you’ll need

• Random-orbit sander (5–6 in) with dust extraction and a firm pad (keep soft pads for curved work).
• Profile/contour sanding blocks matched to your routered shapes; small cork or hardwood blocks for flats.

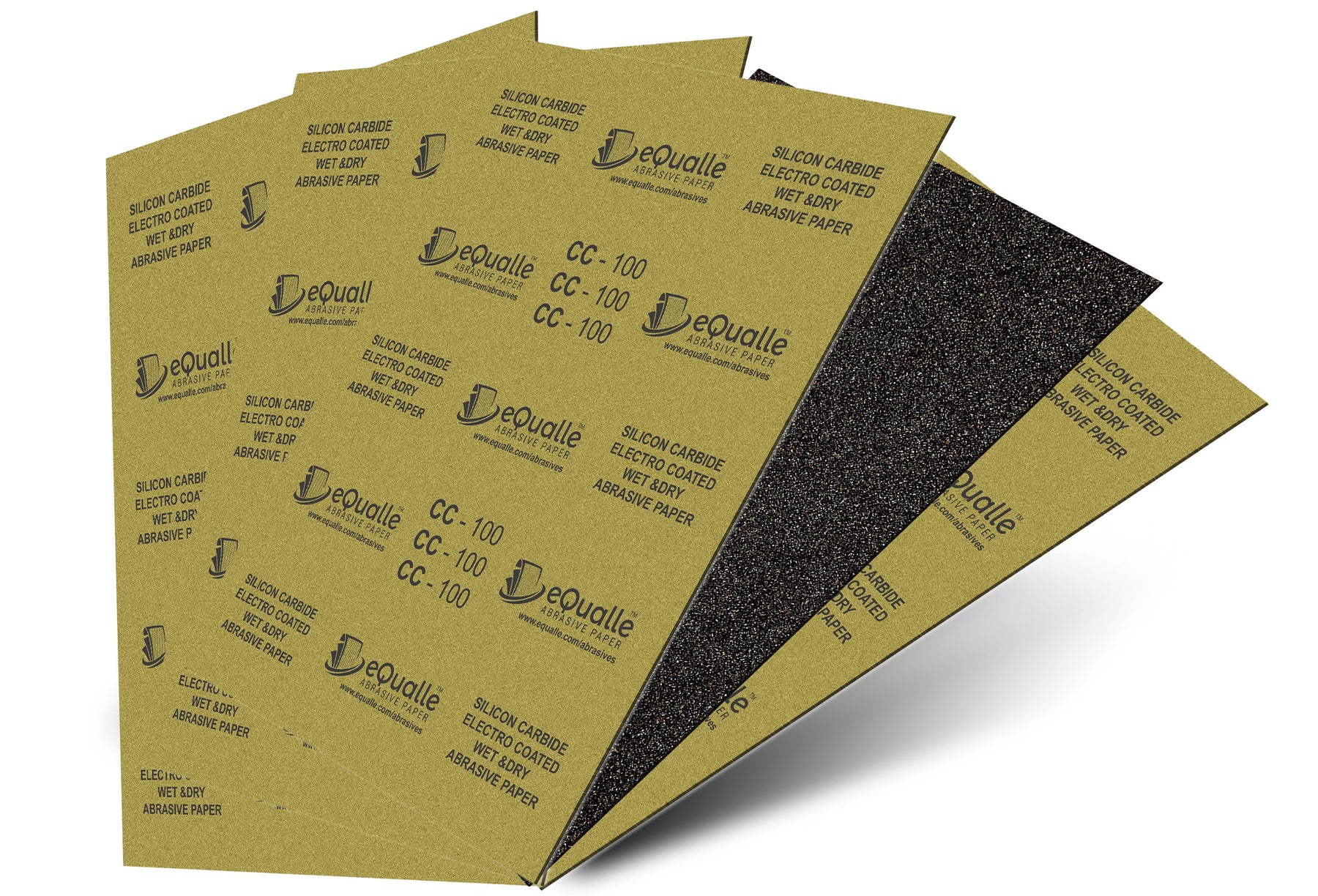

• 9×11 in silicon carbide sheets: 80, 120, 180 (used dry with extraction).
• Sharp cabinet scraper for tight corners or inside profiles where a sander won’t reach.
• Raking light (headlamp or clamp light) to reveal remaining scorch and scratch direction.
• HEPA-capable vacuum, tack cloth or microfiber wipes, and a pencil for witness marks.
• PPE: P100 respirator, safety glasses, and hearing protection.

Recommended grit sequence

• 80 grit: Targeted cutting to remove the heat-affected layer quickly without excessive dwell.
• 120 grit: Blend and remove 80-grit tracks; re-establish uniform scratch direction with the grain.
• 180 grit: Refine to a pre-finish surface that remains open for stain or sealer.

Resist the urge to jump straight to fine grits: glazed fibers tend to skate under finer paper, prolonging heat and polishing rather than cutting.

Step-by-step

1. Diagnose the burn. Under raking light, circle affected zones with a pencil. Burns at stops or inside corners often come from slowing feed rate, while long straight burns point to dull bits or too-low RPM. Knowing the cause helps prevent a repeat on the next pass.
2. Set physical limits. Use masking tape to define a narrow correction lane around each burn. This prevents you from sanding the entire edge and losing profile crispness.
3. Cut the glaze fast (80 grit). Load a fresh sheet on a firm block or your RO sander. Work short, light passes with the grain on flat areas; on profiles, switch to a shaped block or a cabinet scraper. For efficient, cool cutting, start with 80 Grit Sandpaper (25-pack). Stop frequently to vacuum and check: as soon as the last dark fiber disappears, move on—don’t linger.
4. Blend the correction (120 grit). Widen the sanded zone slightly and reset the scratch pattern so it flows with adjacent areas. Overlap your passes and keep the pad flat on flats. Profiles get a few careful strokes on a properly shaped block. This is where 120 Grit Sandpaper (50-pack) cleans up the 80-grit tracks without closing the grain.
5. Refine for finish (180 grit). Make a light, uniform pass to even sheen and scratch direction. Avoid over-polishing edges; switch to hand blocks at arrises to keep them crisp. Finish with a thorough vacuum and a tack wipe. For a stain-ready surface that still accepts color evenly, cap with 180 Grit Sandpaper (100-pack).
6. Inside radii and tight profiles. Use a cabinet scraper drawn gently with the grain to shave scorch without flattening shape. Follow with 120 → 180 on a wrapped dowel or custom foam block.
7. Solvent reveal. Wipe a small area with mineral spirits to preview color. If a shadow remains, spot-sand 120 → 180 again; don’t backslide to 80 unless you still see true burn, not shadow.
8. Prevent the next burn. Increase feed rate, take lighter passes, and set router RPM correctly for species and bit diameter. Keep bits sharp and clean of pitch—heat climbs fast on resinous woods.

Special cases

Maple, cherry, beech: These scorch easily. Favor quicker, lighter 80-grit cuts and spend proportionally longer at 120 to erase tracks. Keep ROS speeds moderate to reduce heat.

Resinous softwoods: Pitch build-up mimics burn. Clean the bit and the surface with a suitable solvent first; you might find you’re chasing pitch, not heat damage.

Veneered parts: Confirm veneer thickness. Skip 80 on the face veneer if you’re near the limit; try a sharp scraper, then 120 by hand with minimal pressure.

Profiles with fine beads or coves: Use matched profile blocks or flexible abrasive cloth, working only the burned band. Over-broad strokes flatten detail.

Pro tips

• Use pencil crosshatch witness marks at every grit—stop when they vanish evenly.
• Replace paper the moment it warms and stops cutting. Dull paper polishes and drives heat back in.
• Keep extraction high; dust between the pad and wood acts like bearings, increasing heat and pigtails.
• Read with raking light after each grit. If you can’t see the burn in raw wood under solvent, you won’t see it after finish.
• For paint-grade parts, don’t over-refine; a 120 → 180 stop preserves primer tooth and hides better.

Aftercare

• Vacuum thoroughly and tack wipe before any finish step.
• For stain, test on offcuts with identical grain and sanding sequence to confirm color take-up.
• Between coats, de-nib lightly with 320–400 on flats only; avoid edges to preserve crisp lines.

FAQs

• Can oxalic acid remove burns? Oxalic lifts iron/tannin stains, not heat-darkened lignin; sanding is the fix.
• Will 220 or 320 hide a light scorch? Usually no. If 120 doesn’t erase it, step back to 80 briefly—cut then refine.
• What causes new scorch after sanding? Too much dwell, dull paper, high ROS speed, or pressing hard. Let sharp abrasives cut; you steer and stop.

Video iframe

Closing

Router burns are a sanding problem as much as a routing problem. Cut the glaze fast with 80 in a controlled lane, blend with 120, and refine with 180. Keep edges crisp, extraction high, and the light low and raking. Solve the cause, finish the cure, and your profiles will look clean and professional—no heat shadows under stain or clear.
