Smoothing Door Jamb Reveals So Doors Don’t Bind—Micro Sand Plan

When a door rubs slightly against its jamb or sticks on one side, the solution isn’t always planing or rehanging. Often, light micro-sanding of the jamb reveal can correct the issue and restore smooth operation without altering fit. This guide explains how to sand door jambs precisely so reveals remain even and doors swing freely.

Why Sanding Matters for Door Reveals

Seasonal humidity, multiple paint layers, or uneven hinge tension can tighten the gap between the door and jamb. Proper sanding relieves minimal material—just enough to remove friction—while keeping the reveal uniform around the perimeter. Over-sanding, by contrast, causes gaps, drafts, or visible uneven edges.

Recommended Tools

• Flexible sanding pad or foam block.
• Fine-grit wet/dry sandpaper.
• Painter’s tape for edge masking.
• Feeler gauge or business card to measure reveals.
• Vacuum and microfiber cloth for cleanup.

Ideal Grit Sequence

• 220 grit – Light removal of binding paint or finish.
• 280 grit – Feather-smoothing transitions and refinements.
• 400 grit – Final polishing for clean, glide-ready surfaces.

Step-by-Step: Relieving Tight Door Reveals

1. Identify contact zones. Close the door slowly and note where it binds. Use a pencil to mark those spots on the jamb or door edge.
2. Mask the edges. Protect adjacent painted surfaces with painter’s tape, exposing only the contact area to avoid marring the finish.

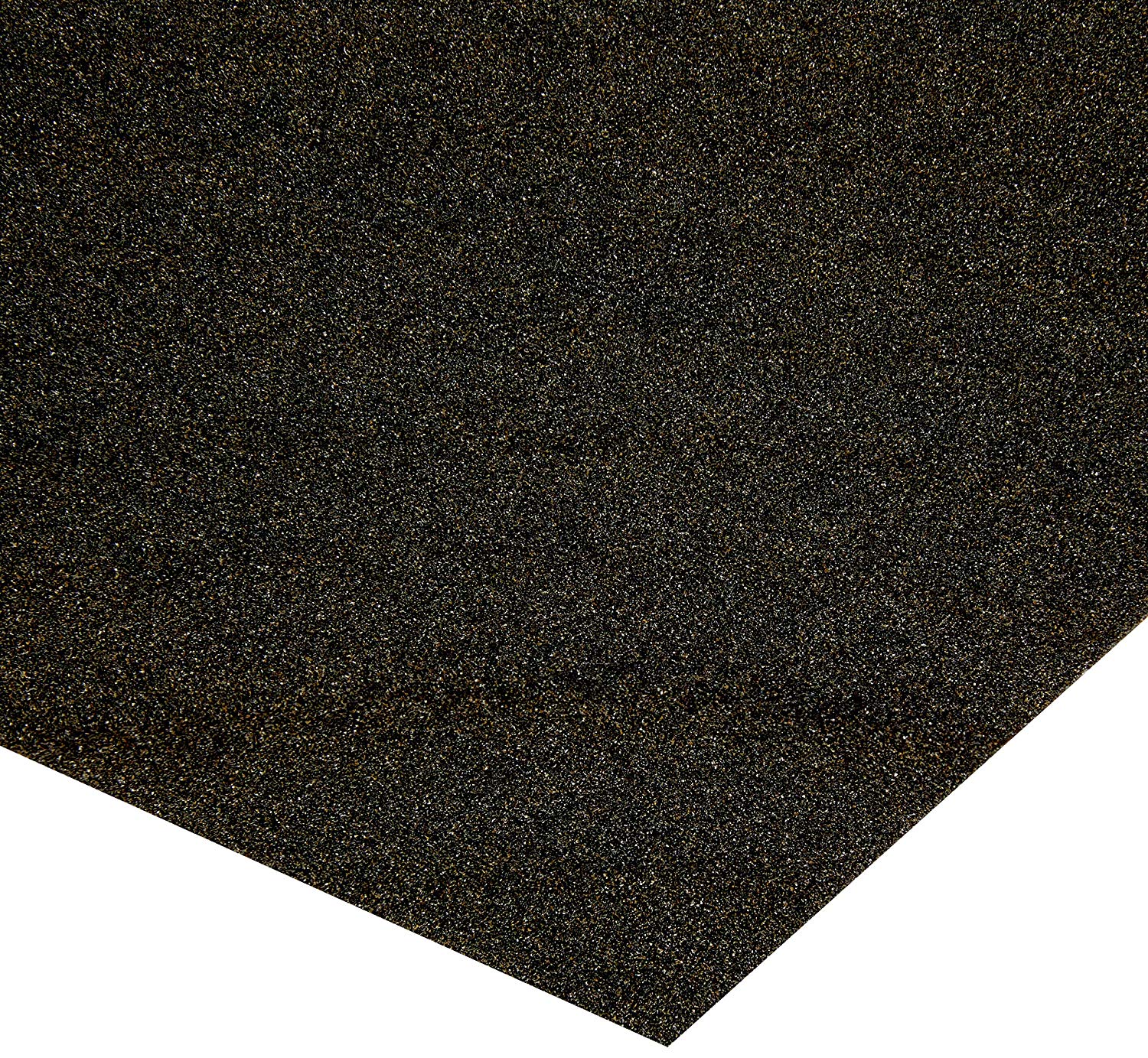

3. Initial sanding. Use 220 Grit (25-pack) sheets wrapped around a foam pad. Sand in the direction of the jamb’s grain with gentle strokes, testing fit frequently.
4. Feather and smooth. Move to 280 Grit (50-pack) to even out transition zones. Keep pressure light—this stage blends edges invisibly for uniform reveals.
5. Polish for glide. Finish with 400 Grit (100-pack) wet/dry paper to achieve a smooth, low-friction surface. Remove tape and wipe clean.
6. Test and adjust. Close the door several times to verify consistent clearance along the hinge and latch sides. The door should swing freely with no rub or rattle.

Special Cases

For painted jambs with multiple layers, lightly score the paint line with a utility knife before sanding to prevent peeling. On raw wood jambs, seal sanded areas with primer or clear coat immediately to prevent moisture swelling. If swelling recurs, check indoor humidity levels—problems often return when RH exceeds 60%.

Pro Tips

• Use raking light to spot shiny burnished spots—these indicate tight contact points.
• Sand both mating surfaces lightly if the door finish is thick from repainting.
• Always keep sandpaper flat to avoid edge grooves.
• For exterior doors, finish sanded zones with a weather-resistant sealer.
• Document reveal widths before and after adjustment for future reference.

Aftercare

• Lubricate hinges after sanding to maintain smooth motion.
• Repaint or touch up edges as needed to protect from moisture ingress.
• Inspect door alignment seasonally—re-sand lightly if sticking recurs.
• Keep door gaps clear of caulk or paint buildup to prevent future binding.

FAQs

• Can I use a power sander? No—manual sanding provides better control and avoids accidental gouging.
• What if sanding doesn’t fix the bind? The hinges may be misaligned—tighten or shim them before removing more material.
• Do I need to reseal afterward? Yes—bare wood or sanded paint edges should always be sealed for durability.

Watch & Learn

Fine-tuning door reveals takes finesse, not force. With a careful sanding sequence from 220 to 400 grit, you can eliminate sticking points while keeping crisp, uniform gaps for a professional, long-lasting fit.
