Sanding Beams & Timbers Overhead: Dust Control & Safe Setup

Working overhead on exposed beams and large timbers is a different animal. Gravity throws dust back in your face, your tool control changes when your arms are above shoulder height, and even small slips can gouge soft grain or rounded arrises you meant to preserve. This guide walks you through a safe, dust-smart, and efficient sanding plan specifically for overhead wood: how to stage, which grits to use, how to keep dust out of your lungs and finish, and how to leave the beam looking crisp—not over-rounded.

Why Sanding Overhead Matters

Exposed beams are statement pieces. Because they catch light from multiple angles, any swirl, flat spot, or over-sanded edge will be obvious. Overhead sanding also creates a downfall of dust that can contaminate finishes and indoor spaces. A disciplined sequence and strong dust control prevent three common issues: (1) visible cross-grain scratches on beam faces, (2) rounded arrises along edges that should stay square, and (3) airborne dust that irritates eyes, lungs, and sticks to everything you later try to coat.

Tools & Setup

• Random-orbit sander (5" or 6") with dust extraction port
• Lightweight sanding block for edges and detail work
• Interface pad(s) for slight curvature; hard pad for flat faces
• HEPA-capable dust extractor or powerful shop vac with fine filter
• Raking/guide light (portable LED bar or headlamp) to reveal scratches
• Stable platform: mobile scaffold, stout work platform, or rated ladder
• PPE: safety glasses, P100/HEPA respirator, cap/hood, hearing protection
• Plastic & tape for isolation; drop cloths to protect countertops/flooring

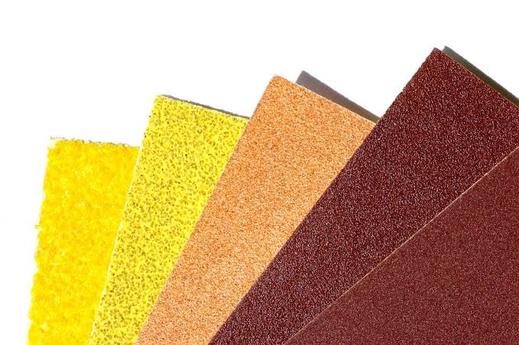

Recommended Grit Sequence (Typical Soft/Medium Woods)

• 80 grit — Level tool marks, mill glaze, and water stains without digging valleys.
• 120 grit — Refine the scratch pattern; remove 80-grit trails and blend edge work.
• 220 grit — Final pre-finish smoothing for clear coats or paint-ready surfaces.

Step-by-Step Workflow

1. Isolate the work zone. Tape poly sheeting to form a dust tent around the beam area. Close HVAC supply/return registers nearby and switch the air handler off while you sand. Stage your extractor hose overhead to minimize snagging.
2. Set your platform and sightlines. Adjust scaffold height so the beam face you’re sanding is between chest and eye level—this reduces shoulder fatigue and gives you better control. Aim a raking light along the grain to spotlight scratches and low spots.
3. First cut with 80 grit (25-pack). Use a random-orbit sander with extractor attached. Keep the pad flat; let the abrasive do the work. On edges and arrises, switch to a block held at a slight angle to avoid rounding. Pencil-map problem areas and work until the surface is uniformly deglossed with no leftover mill marks.
4. Blend and refine with 120 grit (50-pack). Make light, overlapping passes. Where the beam transitions around a corner, stop machine sanding 1/8–1/4" from the edge and finish that zone by hand to preserve crisp geometry. Vacuum between faces so you’re not grinding loose dust into the next pass.
5. Final smoothing with 220 grit (100-pack). This pass erases micro-scratches that telegraph under clear finishes and ensures a consistent sheen. Use short dwell times—overheating or over-polishing soft earlywood can create uneven absorbency.
6. Detail the edges and checks. For small checks or knots, hand-sand in the grain direction. Avoid aggressive cross-grain strokes that can dish soft areas around hard latewood bands.
7. Dust control reset. Vacuum beam, scaffold rails, and the plastic tent. Wipe with a tack cloth or a manufacturer-approved solvent wipe, then let any solvent flash before coating.

Special Cases

Old finishes or wax: If a beam has oil/wax contamination, scraping and a solvent-compatible cleaner (per finish manufacturer) may be required before sanding; otherwise the paper will load and smear. Hand-hewn or distressed beams: Preserve tool marks—spot-sand only the raised fibers and debris. Use a soft interface pad to follow texture without flattening it. High-resin species (cedar, pine): Paper loads quickly; swap sheets often and avoid heat buildup that can glaze the surface. Hardwoods (oak, ash): Maintain with-the-grain discipline; their open pores and ray fleck can reveal swirl if you rush the 120 step.

Pro Tips

• Guide coat for wood? A very light pencil crosshatch before each grit helps confirm you’ve removed the previous scratch pattern without over-sanding.
• Edge guards. A simple 1× strip clamped as a fence along an arris prevents accidental roll-over from the sander pad.
• Interface strategy. Use a hard pad on flat faces; switch to a thin/soft interface only where the beam crowns or the grain undulates.
• Time-on-grit discipline. Don’t move up until the surface is uniformly matte at your current grit under raking light. Skipping here creates a chasing-the-scratch spiral later.
• Extractor tune-up. Keep hose runs short and straight; a partially clogged HEPA filter can double your swirl risk by reducing pad stability.

Aftercare & Finish Prep

• Vacuum twice. First pass fast, second pass slow—especially tops of beams and adjacent plaster where dust settles.
• Raise grain (optional). For waterborne finishes on softwoods, a light mist to raise grain followed by a quick 220 touch-pass can yield a silkier final feel.
• Masking before finish. Re-mask the dust tent as a spray tent or brush shield; dust-free staging is as important as dust-free sanding.
• Test spot. Wipe a small area with mineral spirits (if compatible) to preview color and scratch clarity before committing to finish.

FAQs

• Can I start at 60 grit to go faster? Only if there are heavy planer marks or stain; 60 can dig ruts overhead. Most beams level cleanly starting at 80.
• Do I have to sand every face? For visual consistency, yes—lightly kiss hidden faces so sheen and color don’t shift at corners.
• Is wet sanding helpful overhead? Not for wood beams. It adds mess and moisture; stick to dry sanding with extraction.
• What if the beam is hand-hewn? Spot-sand fuzz only. Preserve tool marks—use soft interfaces and blocks, not broad machine passes.

Video: Overhead Sanding Walkthrough

Closing Thoughts

Overhead sanding success is about control and cleanliness: steady footing, crisp arrises, a sensible 80→120→220 sequence, and extraction that keeps dust out of the air (and your finish). Set the stage, follow the grit map, and let the wood—not the swirl—catch the light.
