Choosing Structured Abrasives (Trizact) for a Uniform Sanding Scratch Pattern (220–3000 Grit Guide)

Traditional sandpaper cuts randomly—the grit distribution leaves uneven scratch depths that can telegraph through paint or polish. Structured abrasives like 3M Trizact™ use micro-replicated pyramids that wear down evenly, producing a consistent, predictable scratch pattern. Here’s how to choose and sequence them for flawless finishes on metal, plastic, and wood.

Why Structured Abrasives Matter

Each pyramid on a structured abrasive contains layers of mineral that self-renew as you sand. Instead of dulling and gouging, they keep cutting uniformly. That means faster stock removal, cooler operation, and far less risk of swirl marks—especially critical before coating or polishing stages.

Recommended Tools

• Random-orbit or dual-action (DA) sander with variable speed.
• Soft interface pad for contoured surfaces.
• Compressed-air or vacuum dust extraction.
• Clean microfiber cloths.
• Appropriate Trizact or equivalent structured-abrasive discs or sheets.

Typical Grit Equivalents (Structured → Conventional)

• A35 (~220 grit): heavy cut for leveling primer or oxidation.
• A20 (~400 grit): medium smoothing before top-coat or polishing compound.
• A10 (~800 grit): fine finishing and swirl removal.
• A5 (~1500 grit): pre-polish micro-finishing.
• A3 (~3000 grit): final gloss refinement before buffing.

Step-by-Step: Building a Uniform Scratch Sequence

1. Clean the surface. Remove dust or residues that could score the finish.
2. Start with A35 (≈220 grit). Sand at low speed (3–4 k RPM max) using light pressure. Work cross-hatch passes for even leveling.
3. Move to A20 (≈400 grit). This refines scratches and evens reflectivity. Vacuum dust between stages.
4. Continue with A10 (≈800 grit). Use wet mode for heat-sensitive materials like plastic or resin.
5. Polish with A5 (≈1500 grit). The surface should already appear semi-gloss under angled light.
6. Optional final A3 (≈3000 grit). Produces a mirror-ready finish requiring minimal compound.
7. Inspect under raking light. Uniform, parallel micro-lines indicate perfect progression.

Special Cases

On curved panels, use soft interface pads to maintain contact without flattening profiles. For hard alloys, keep speed moderate to avoid pyramid glazing. Structured abrasives excel on stainless, clear-coat blending, and resin composites alike.

Pro Tips

• Do not skip more than one Trizact step—each pyramid grade refines the previous micro-geometry.
• Clean discs with compressed air to extend life.
• Track equivalent FEPA/CAMI grit in your workflow logs to maintain consistency across tools.

Aftercare

• Wipe down with microfiber and inspect before moving to compounds or clear coats.
• Store discs flat and dry—heat warps the backing film.
• Label used discs by stage to reuse efficiently on matching grit projects.

FAQs

• Are structured abrasives reusable? Yes—clean them often; they last several times longer than conventional sheets.
• Do they need water? Optional but beneficial on plastics and aluminum to control heat.
• Can I mix Trizact with standard sandpaper grits? Yes—just match equivalent grits and keep final passes structured for uniformity.

Watch & Learn

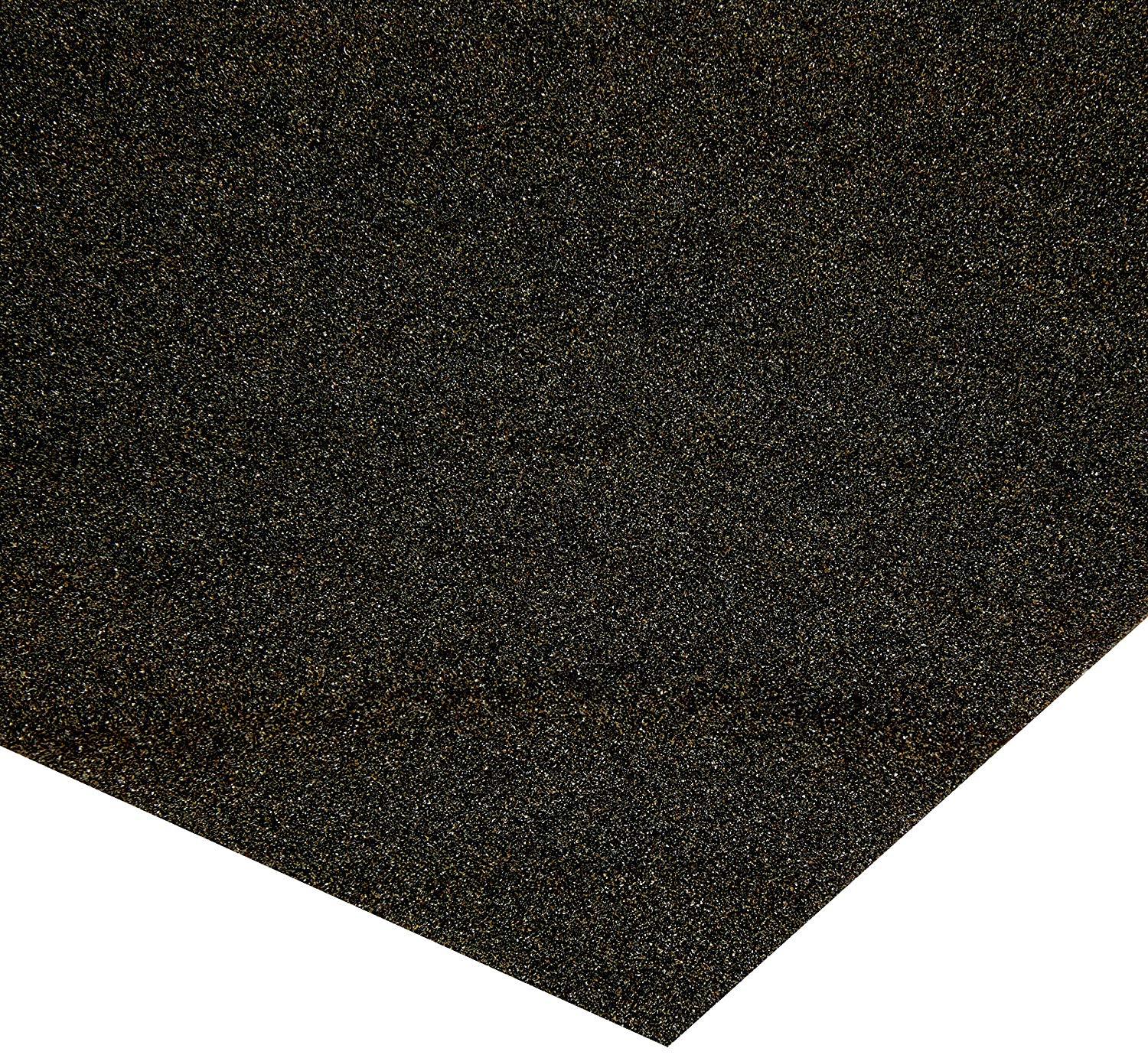

Get the full grit range: pick medium, fine, and super-fine 25-sheet packs to complement structured-abrasive workflows and maintain consistent finishes.
